System-On-Modules - SOM G400-S SMD SOM 400MHz 32bit ARM9
This article will unlock more details about G400S, a 120 pin surface-mount module (SMT).
G400S SoM: Specifications, Datasheet, Dimensions
System-On-Modules - SOM G400-S SMD SOM 400MHz 32bit ARM9 This article will unlock more details about G400S, a 120 pin surface-mount module (SMT).
139
Sep 4, 2021
Matthew Longfellow
G400S-SM-480
Inquiry
Min.: 1 Mult.: 1
Quick Links

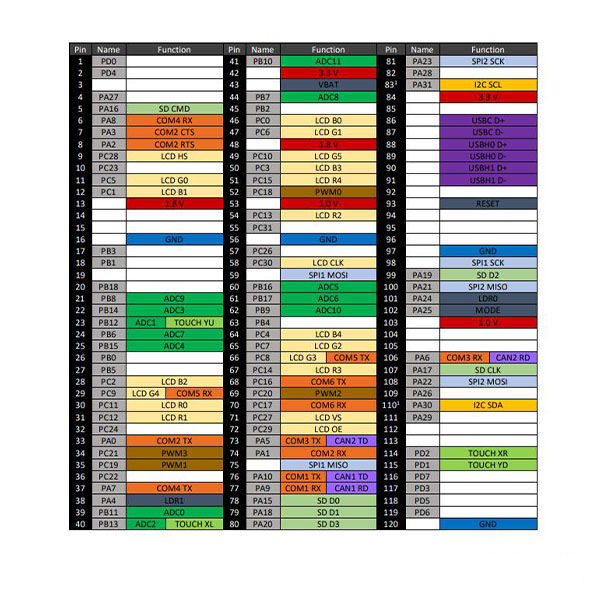

G400S Pinout
G400S Description
The G400S SoM is powerful, low-cost, surface-mount System on Modules (SoM) running Microsoft's .NET Micro Framework. The .NET Micro Framework enables the SoM to be programmed from Microsoft Visual Studio using a USB or serial cable. Programming in a modern managed language, such as C# or Visual Basic, allows developers to accomplish more work in less time by taking advantage of the extensive built-in libraries for networking, file systems, graphical interfaces, and more.
Specifications
GHI Electronics, LLC G400S-SM-480 technical specifications, attributes, parameters and parts with similar specifications to GHI Electronics, LLC G400S-SM-480.
G400S-SM-480 Tech Specifications
G400S-SM-480 Tech Specifications
GHI Electronics, LLC G400S-SM-480 technical specifications, attributes, parameters and parts with similar specifications to GHI Electronics, LLC G400S-SM-480.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 6 Weeks | |
| Operating Temperature | -40°C~85°C | |
| Published | 2001 | |
| Size / Dimension | 1.90 x 1.30 48.3mmx33.1mm |
| Product Attribute | Attribute Value | |
|---|---|---|
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 6 (Time on Label) | |
| Speed | 400MHz | |
| RAM Size | 32KB Internal 128MB External |
| Product Attribute | Attribute Value | |
|---|---|---|
| Core Processor | ARM926EJ-S | |
| Module/Board Type | MPU Core | |
| Flash Size | 4MB External | |
| RoHS Status | ROHS3 Compliant |
G400S Features
· NET Micro Framework
· RoHS Lead-Free
· 400 MHz ARM 9 Atmel SAM9X35
· 64 Mbytes available RAM
· 1.4 Mbytes available flash
· Embedded LCD controller
· 89 to 102 interrupt capable GPIO
· 2 SPI
· 1 I2C
· 6 UART
· 2 CAN
· 4 PWM
· 8 to 12 10-bit analogue input
· 4-bit SD/MMC memory card interface
· Low power modes
· -40°C to +85°C operational
· RTC
· Watchdog
· Threading
· USB host
· USB client
· SQLite database
· TCP/IP with SSL
o Full .NET socket interface
o Ethernet o Wi-Fi o PPP
· Graphics o Images
o Fonts
o Controls
· File System
o Full .NET file interface
o SD cards
o USB drives
· Native extensions
o Runtime Loadable Procedures
o Device register access
· Signal controls
o Generation
o Capture
o Pulse measurement
G400S Applications
Vending machines
POS Terminals
Measurement tools and testers
Networked sensors
Robotics
Central alarm system
Smart appliances
Industrial automation devices
G400S vs. G400D
| G400S | G400D | |
| Package | 120 pin surface-mount module (SMT) | 200 pin SODIMM module |
| Dimensions | 48.3x33.1 x 4.6 mm | 67.6x31.8x 4.1 mm |
| GPIO | 89 | 102 |
| Analog Input | 12 | 8 |
| Ethernet | ENC28J60 over SPI | Ethernet PHY Built-in base 100 |

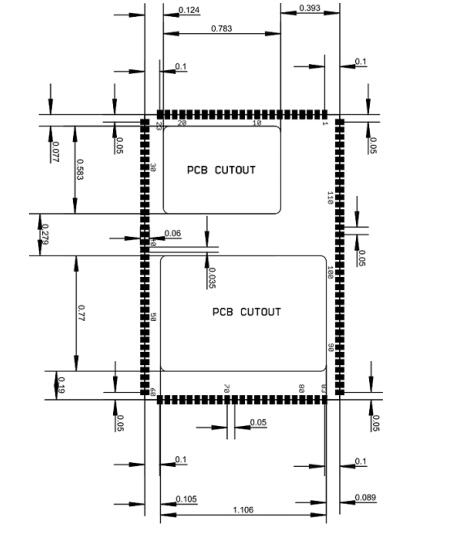

G400S Dimensions
G400S Manufacturer
Since 2003, GHI Electronics has been a world leader in providing embedded hardware-software core modules to help companies in reducing cost, complexity, and time to market. Specializing in embedded IoT, we offer a complete platform of hardware and software tools to help engineers create secure connected embedded products, from prototype to production, in record time.
Datasheet PDF
Download datasheets and manufacturer documentation for GHI Electronics, LLC G400S-SM-480.
G400S-SM-480 Documents
G400S-SM-480 Documents
Download datasheets and manufacturer documentation for G400S-SM-480
Frequently Asked Questions
What is G400S?
The G400S SoM is powerful, low-cost, surface-mount System on Modules (SoM) running Microsoft's .NET Micro Framework. The .NET Micro Framework enables the SoM to be programmed from Microsoft Visual Studio using a USB or serial cable. Programming in a modern managed language, such as C# or Visual Basic, allows developers to accomplish more work in less time by taking advantage of the extensive built-in libraries for networking, file systems, graphical interfaces, and more.
What package does the G400S come?
The G400S comes with a 120 pin surface-mount module (SMT).
What is the general purpose input and output of G400S?
GPIOs can read and write logical high and low signals. Keep the following in mind:
1. They default to inputs with internal weak pull-up resistors
2. They operate on 3.3 V logic levels.
3. They are not 5 V tolerant.
4. They have controllable pull-up and pull-down resistors.
5. All pins are interrupt capable.
6. See the processor’s documentation for information on sourcing and sinking current.
FAQ
What is G400S?
The G400S SoM is powerful, low-cost, surface-mount System on Modules (SoM) running Microsoft's .NET Micro Framework. The .NET Micro Framework enables the SoM to be programmed from Microsoft Visual Studio using a USB or serial cable. Programming in a modern managed language, such as C# or Visual Basic, allows developers to accomplish more work in less time by taking advantage of the extensive built-in libraries for networking, file systems, graphical interfaces, and more.
What package does the G400S come?
The G400S comes with a 120 pin surface-mount module (SMT).
What is the general purpose input and output of G400S?
GPIOs can read and write logical high and low signals. Keep the following in mind:
1. They default to inputs with internal weak pull-up resistors
2. They operate on 3.3 V logic levels.
3. They are not 5 V tolerant.
4. They have controllable pull-up and pull-down resistors.
5. All pins are interrupt capable.
6. See the processor’s documentation for information on sourcing and sinking current.
