GRM155R71H104KE14D Ceramic Capacitor X7R 0402 50V[FAQ]: Datasheet, Features, and Equivalents

Cap Ceramic 0.1uF 50V X7R 10% SMD 0402 125C Paper T/R GRM155R71H104KE14D is a Capacitor. This article is going to introduce 3D MOdels, features, and more details about GRM155R71H104KE14D.

Feb 14, 2022

Hermosa Gill

Cap Ceramic 0.1uF 50V X7R 10% SMD 0402 125C Paper T/R

GRM155R71H104KE14D is a Capacitor. This article is going to introduce 3D MOdels, features, and more details about GRM155R71H104KE14D.

GRM155R71H104KE14D

164080In Stock

Min.: 1 Mult.: 1

Quantity	Unit Price	Ext. Price
1+	$0.00386	$0
500+	$0.00284	$1.42
1000+	$0.00237	$2.37
2000+	$0.00217	$4.34
5000+	$0.00203	$10.15
10000+	$0.00189	$18.9
15000+	$0.00183	$27.45
50000+	$0.0018	$90

Unit Price:$0.00386

Subtotal: $100

Quick Links

Description of GRM155R71C104KA88D

0402 0.1 uF 16V ±10 % Tolerance X7R SMT Multilayer Ceramic Capacitor --Future Electronics

Ceramic Capacitor, Multilayer , Ceramic , 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 0402--ComS.I.T. Europe - USA - Asia

Cap Ceramic 0.1uF 16V X7R 10% SMD 0402 125°C Paper T/R--Avnet

CERAMIC CAPACITOR, 0.1UF, 16V, X7R, 10%, 0402, FULL REEL--Farnell

CAP-FXD 0.1UF +10PCT 16VDC CER X7R 0402--IBS Electronics

GRM155R71C104KA88D Features

Terminations are made of metal highly resistant to migration.
The GRM series is a complete line of chip ceramic capacitors in 6.3V, 10V, 16V, 25V, 50V, 100V, 200Vand 500V ratings. These capacitors have temperature characteristics ranging from C0G to Y5V.
A wide selection of sizes is available, from the miniature LxWxT: 1.0x0.5x0.5mm toLxWxT: 3.2x1.6x1.15mm. GRM 18, 21, and GRM 31 types are suited to flow and reflow soldering. GRM 15 type is applied to only reflow soldering,
Stringent dimensional tolerances allow highly reliable, high-speed automatic chip placement PCBs.
The GRM series is available in paper or plastic embossed tape and reel packaging for automatic placement. Bulk case packaging is also available for GRM 15, GRM18, and GRM21.

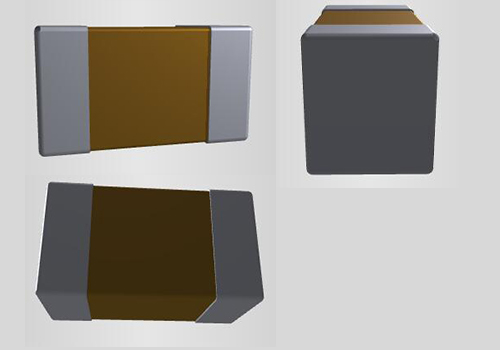

GRM155R71C104KA88D 3D Model

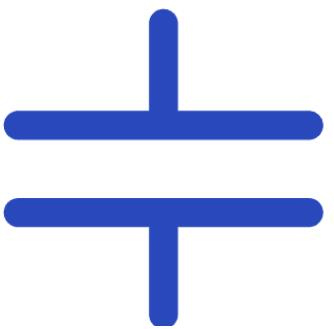

GRM155R71C104KA88D Symbol

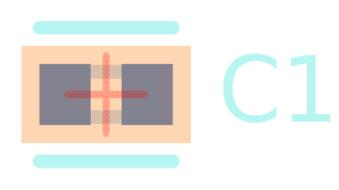

GRM155R71C104KA88D Footprint

GRM155R71C104KA88D 3D Model

Specifications

Murata Electronics GRM155R71H104KE14D technical specifications, attributes, parameters and parts with similar specifications to Murata Electronics GRM155R71H104KE14D.

GRM155R71H104KE14D Tech Specifications

Murata Electronics GRM155R71H104KE14D technical specifications, attributes, parameters and parts with similar specifications to Murata Electronics GRM155R71H104KE14D.

Product Attribute	Attribute Value
Lifecycle Status	IN PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time	10 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount, MLCC
Package / Case	0402 (1005 Metric)
Terminal Shape	WRAPAROUND
Number of Pins	2Pins
Dielectric Material	Ceramic
Weight	6.010099mg
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	GRM
Size / Dimension	0.039Lx0.020W 1.00mmx0.50mm
Tolerance	±10%

Product Attribute	Attribute Value
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2Terminations
Termination	SMD/SMT
ECCN Code	EAR99
Temperature Coefficient	X7R
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Applications	General Purpose
Capacitance	0.1μF
Voltage - Rated DC	50V
Packing Method	TR, PAPER, 7 INCH
Depth	500μm

Product Attribute	Attribute Value
Case Code (Metric)	1005
Case Code (Imperial)	0402
Temperature Characteristics Code	X7R
Multilayer	Yes
Voltage	50V
Dissipation Factor	0.025 %
Height	550μm
Length	1mm
Width	0.5mm
Thickness (Max)	0.022 0.55mm
Thickness	558.8μm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

View Similar

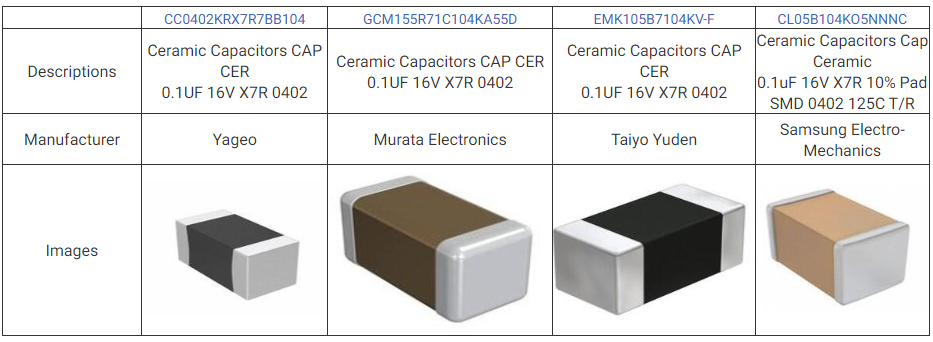

GRM155R71C104KA88D Equivalents

GRM155R71C104KA88D Application

General electronic equipment

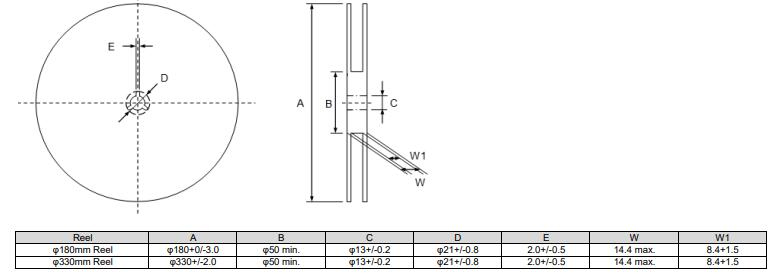

GRM155R71C104KA88D Package informtion

GRM155R71C104KA88D Manufacturer

Murata is a global leader in the design, manufacture, and supply of advanced electronic materials, leading-edge electronic components, and multi-functional, high-density modules. Murata innovations can be found in a wide range of applications from mobile phones to home appliances, and automotive applications to energy management systems and healthcare devices.
