GRM188R71H104KA93D Capacitor CER 0.1UF 50V: Datasheet, Features, and Equivalents

Ceramic Capacitors CAP CER 0.1UF 50V X7R 0603 GRM188R71H104KA93D is a Capacitor. This article is going to introduce 3D MOdels, features, and more details about GRM188R71H104KA93D.

445

Dec 9, 2021

Merlin Aly

Ceramic Capacitors CAP CER 0.1UF 50V X7R 0603

GRM188R71H104KA93D is a Capacitor. This article is going to introduce 3D MOdels, features, and more details about GRM188R71H104KA93D.

GRM188R71H104KA93D

2821104In Stock
Min.: 1 Mult.: 1
Quantity Unit Price Ext. Price
1+ $0.04566$0.05
500+ $0.03357$16.79
1000+ $0.02798$27.98
2000+ $0.02567$51.34
5000+ $0.02399$119.95
10000+ $0.02232$223.2
15000+ $0.02158$323.7
50000+ $0.02122$1061
Unit Price:$0.04566
Subtotal: $0.05
Looking for a better price? Want a lower wholesale price? Please send an RFQ, and we will respond immediately.
Quick Links

Descriptions of Murata GRM188R71H104KA93D provided by its distributors.

Description of GRM188R71H104KA93D's distributors

  • Multilayer Ceramic Capacitors MLCC Surface Mount 0603 0.1uF 50 Volts X7R 10%--Jameco

  • CAP CER 0.1UF 50V X7R 0603 / Cap Ceramic 0.1uF 50V X7R 10% Pad SMD 0603 125¡ãC T/R--Win Source Electronics

  • Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 0603--ComS.I.T. Europe - USA - Asia

  • MURATA GRM188R71H104KA93DCAP 100NF X7R 50V SMD0603--IBS Electronics

  • CAP SMT CER .1UF 50V 10 % 0603 T/R PICK#127050--Component Electronics

GRM188R71H104KA93D Features

  • Terminations are made of metal highly resistant to migration.

  • The GRM series is a complete line of chip ceramic capacitors in 6.3V, 10V, 16V, 25V, 50V, 100V, 200V, and 500V ratings. These capacitors have temperature characteristics ranging from C0G to Y5V.

  • A wide selection of sizes is available, from the miniature LxWxT: 1.0x0.5x0.5mm to LxWxT: 3.2x1.6x1.15mm. GRM18, 21, and GRM31 types are suited to flow and reflow soldering. GRM15 type is applied to only reflow soldering.

  • Stringent dimensional tolerances allow highly reliable, high-speed automatic chip placement on PCBs.

  • The GRM series is available in paper or plastic embossed tape and reel packaging for automatic placement. Bulk case packaging is also available for GRM15, GRM18, and GRM21

Specifications

Murata Electronics GRM188R71H104KA93D technical specifications, attributes, parameters and parts with similar specifications to Murata Electronics GRM188R71H104KA93D.

GRM188R71H104KA93D Tech Specifications

Murata Electronics GRM188R71H104KA93D technical specifications, attributes, parameters and parts with similar specifications to Murata Electronics GRM188R71H104KA93D.

Product Attribute Attribute Value
Lifecycle StatusTO BE DISCONTINUED (Last Updated: 1 month ago)
Contact PlatingTin
MountSurface Mount
Mounting TypeSurface Mount, MLCC
Package / Case0603 (1608 Metric)
Terminal ShapeWRAPAROUND
Number of Pins2Pins
Dielectric MaterialCeramic
Operating Temperature-55°C~125°C
PackagingTape & Reel (TR)
SeriesGRM
Size / Dimension0.063Lx0.031W 1.60mmx0.80mm
Tolerance±10%
JESD-609 Codee3
Product Attribute Attribute Value
Pbfree Codeyes
Part StatusObsolete
Moisture Sensitivity Level (MSL)1 (Unlimited)
Number of Terminations2Terminations
TerminationSMD/SMT
ECCN CodeEAR99
Temperature CoefficientX7R
ApplicationsGeneral Purpose
Capacitance0.1μF
Voltage - Rated DC50V
Packing MethodTR, PAPER, 7 INCH
Depth800μm
Case Code (Metric)1608
Case Code (Imperial)0603
Product Attribute Attribute Value
Temperature Characteristics CodeX7R
MultilayerYes
Insulation Resistance10GOhm
Voltage50V
Height800μm
Length1.6mm
Width0.8mm
Thickness (Max)0.035 0.90mm
Thickness889μm
REACH SVHCNo SVHC
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Lead FreeLead Free
0 Products View Similar

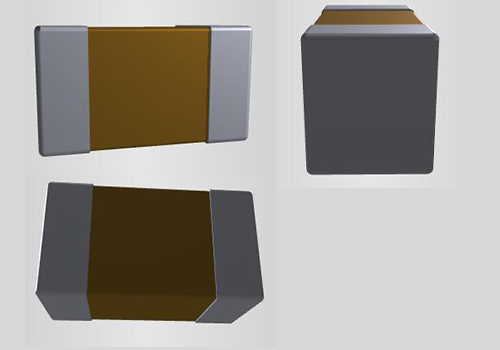

GRM188R71H104KA93D 3D Model

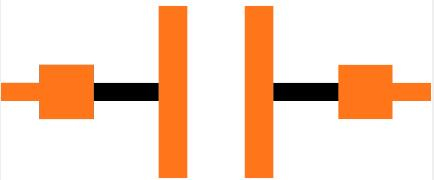

GRM188R71H104KA93D Symbol

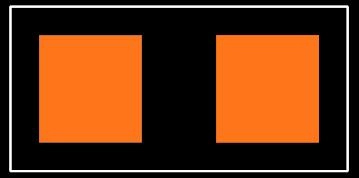

GRM188R71H104KA93D Footprint

GRM188R71H104KA93D 3D Model

GRM188R71H104KA93D Application

  • General electronic equipment

GRM188R71H104KA93D Equivalents

  • C0603C104K5RACTU

  • GCJ188R71H104KA12D

  • C0603C104K5RAC7411

  • CL10B104KB8NNNC



GRM188R71H104KA93D Manufacturer

Murata is a global leader in the design, manufacture, and supply of advanced electronic materials, leading-edge electronic components, and multi-functional, high-density modules. Murata innovations can be found in a wide range of applications from mobile phones to home appliances, and automotive applications to energy management systems and healthcare devices.

Datasheet PDF

GRM188R71H104KA93D Documents

Download datasheets and manufacturer documentation for GRM188R71H104KA93D

Frequently Asked Questions

How many pins of GRM188R71H104KA93D ?
2 pins.
What’s the operating temperature of GRM188R71H104KA93D?
-55°C~125°C.
FAQ
How many pins of GRM188R71H104KA93D ?
2 pins.
What’s the operating temperature of GRM188R71H104KA93D?
-55°C~125°C.
