CAP CER 4.7UF 16V X7R 0805
This product specification is applied to Chip Monolithic Ceramic Capacitor used for General Electronic equipment. This article will unlock its datasheet, application, feature, and more details about GRM21BR71C475KA73L.
GRM21BR71C475KA73L Ceramic Capacitor: Datasheet, Price, GRM Series
CAP CER 4.7UF 16V X7R 0805 This product specification is applied to Chip Monolithic Ceramic Capacitor used for General Electronic equipment. This article will unlock its datasheet, application, feature, and more details about GRM21BR71C475KA73L.
54
Feb 16, 2022
GRM21BR71C475KA73L
2270In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.06637 | $0.07 |
| 500+ | $0.0488 | $24.4 |
| 1000+ | $0.04067 | $40.67 |
| 2000+ | $0.03731 | $74.62 |
| 5000+ | $0.03487 | $174.35 |
| 10000+ | $0.03244 | $324.4 |
| 15000+ | $0.03137 | $470.55 |
| 50000+ | $0.03085 | $1542.5 |
Unit Price:$0.06637
Subtotal: $0.07
Quick Links

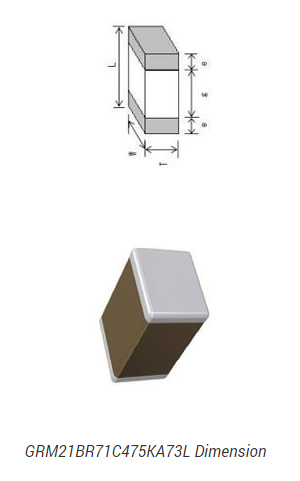

GRM21BR71C475KA73L Dimension
GRM21BR71C475KA73L CAD Model
Symbol
GRM21BR71C475KA73L Symbol
Footprint
GRM21BR71C475KA73L Footprint
3D Model
GRM21BR71C475KA73L 3D Model
GRM21BR71C475KA73L Description
GRM21BR71C475KA73L belongs to GRM Series, chip multilayer ceramic capacitors for general purpose. This is Murata's primary product renowned for both small size and large capacitance value with the latest advanced technology.
GRM21BR71C475KA73L Feature
-
Achieves large-capacity and small size in a multilayer structure.
-
Sn plating is applied to the external electrodes; excellent solderability.
-
High reliability with no polarity.
GRM21BR71C475KA73L Application
1. Rated voltage 100 V Max.
High Dielectric Constant Type --For decoupling and smoothing circuits
Temperature Compensating Type -- For tuning circuits. oscillating circuits,
and high-frequency filter circuits
2. Rated voltage 200V min.
High Dielectric Constant Type --For clamp snubber circuits and smoothing circuits
Temperature Compensating Type--Power supply damper snubber
GRM21BR71C475KA73L Manufacturer
Murata is a global leader in the design, manufacture and supply of advanced electronic materials, leading-edge electronic components, and multi-functional, high-density modules. Murata innovations can be found in a wide range of applications from mobile phones to home appliances, and automotive applications to energy management systems and healthcare devices.
Specifications
Murata Electronics GRM21BR71C475KA73L technical specifications, attributes, parameters and parts with similar specifications to Murata Electronics GRM21BR71C475KA73L.
GRM21BR71C475KA73L Tech Specifications
GRM21BR71C475KA73L Tech Specifications
Murata Electronics GRM21BR71C475KA73L technical specifications, attributes, parameters and parts with similar specifications to Murata Electronics GRM21BR71C475KA73L.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | TO BE DISCONTINUED (Last Updated: 1 month ago) | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount, MLCC | |
| Package / Case | 0805 (2012 Metric) | |
| Terminal Shape | WRAPAROUND | |
| Number of Pins | 2Pins | |
| Material | Ceramic | |
| Operating Temperature | -55°C~125°C | |
| Packaging | Tape & Reel (TR) | |
| Series | GRM | |
| Size / Dimension | 0.079Lx0.049W 2.00mmx1.25mm | |
| Tolerance | ±10% | |
| JESD-609 Code | e3 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Pbfree Code | yes | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 2Terminations | |
| Termination | SMD/SMT | |
| ECCN Code | EAR99 | |
| Temperature Coefficient | X7R | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Applications | General Purpose | |
| Capacitance | 4.7μF | |
| Voltage - Rated DC | 16V | |
| Packing Method | TR, EMBOSSED, 7 INCH | |
| Depth | 1.25mm |
| Product Attribute | Attribute Value | |
|---|---|---|
| Case Code (Metric) | 2012 | |
| Case Code (Imperial) | 0805 | |
| Temperature Characteristics Code | X7R | |
| Multilayer | Yes | |
| Voltage | 16V | |
| Height | 1.25mm | |
| Thickness (Max) | 0.053 1.35mm | |
| Thickness | 1.3462mm | |
| REACH SVHC | No SVHC | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Lead Free |
Datasheet PDF
Download datasheets and manufacturer documentation for Murata Electronics GRM21BR71C475KA73L.
GRM21BR71C475KA73L Documents
GRM21BR71C475KA73L Documents
Download datasheets and manufacturer documentation for GRM21BR71C475KA73L
Datasheets
Chip Multilayer Ceramic Caps Catalog
GRM21BR71C475KA73x Spec
Chip Monolithic Ceramic Caps Part Numbering
ReachStatement
Murata-company-16.pdf
PCN Obsolescence/ EOL
GR ZRA Series 26/Mar/2018
Frequently Asked Questions
What is the name of the primary product that is renowned for small size and large capacitance value?
Murata.
What is the Rated Voltage of GRM21BR71C475KA73L?
2.5Vdc to 3150Vdc.
What is Capacitance of GRM21BR71C475KA73L?
0.10pF to 330µF.
What may aected the performance of chip multilayer ceramic capacitors and chip EMIFIL NFM series?
Storage conditions.
FAQ
What is the name of the primary product that is renowned for small size and large capacitance value?
Murata.
What is the Rated Voltage of GRM21BR71C475KA73L?
2.5Vdc to 3150Vdc.
What is Capacitance of GRM21BR71C475KA73L?
0.10pF to 330µF.
What may aected the performance of chip multilayer ceramic capacitors and chip EMIFIL NFM series?
Storage conditions.
