GRM31CR60J107ME39L CAP CER 100UF 6.3V X5R 1206[FAQ]：Datasheet, and Dimensions

CAP CER 100UF 6.3V X5R 1206 GRM31CR60J107ME39L multilayer ceramic capacitor from Murata is the solution you are looking for! It can withstand a voltage of 6.3 VDC. This MLCC capacitor has a maximum operating temperature of 85 °C.

73

Mar 4, 2022

Felix Becky

CAP CER 100UF 6.3V X5R 1206

GRM31CR60J107ME39L multilayer ceramic capacitor from Murata is the solution you are looking for! It can withstand a voltage of 6.3 VDC. This MLCC capacitor has a maximum operating temperature of 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. So this article is going to talk about more detailed information about GRM31CR60J107ME39L.

GRM31CR60J107ME39L

4000000In Stock
Min.: 1 Mult.: 1
Quantity Unit Price Ext. Price
1+ $0.29678$0.3
10+ $0.27999$2.8
100+ $0.26414$26.41
500+ $0.24919$124.6
1000+ $0.23508$235.08
Unit Price:$0.29678
Subtotal: $0.3
Looking for a better price? Want a lower wholesale price? Please send an RFQ, and we will respond immediately.
Quick Links

Overview of GRM31CR60J107ME39L

GRM31CR60J107ME39L Descriptions
Multilayer Ceramic Capacitors MLCC - SMD/SMT 100UF 6.3V 20% 1206
CAP, 100µF, 6.3V, 20%, X5R, 1206; Capacitance:100µF; Voltage Rating:6.3V; Ceramic Capacitor Case:1206 [3216 Metric]; Capacitance Tolerance:± 20%;
Dielectric Characteristic:X5R; Product Range:GRM Series; Operating Temperature Min:-55°C; Operating Temperature Max:85°C;
Automotive Qualification Standard:-; MSL:-; SVHC:No SVHC (27-Jun-2018); Capacitance Tolerance ±:± 20%; Capacitor Terminals:SMD
CAP, 100µF, 6.3V, 20%, X5R, 1206; Capacitance:100µF; Voltage Rating:6.3V; Ceramic Capacitor Case:1206 [3216 Metric];
Capacitance Tolerance:± 20%; Dielectric Characteristic:X5R; Product Range:GRM Series; Operating Temperature Min:-55°C;
Operating Temperature Max:85°C; Automotive Qualification Standard:-; MSL:MSL 1 - Unlimited; SVHC:No SVHC (15-Jan-2019)
Multilayer Ceramic Capacitors MLCC - SMD/SMT 100UF 6.3V 20% 1206, Restricted Availability
100 µF ±20% 6.3V Ceramic Capacitor X5R 1206 (3216 Metric)
Multilayer Ceramic Capacitors MLCC - SMD/SMT 100UF 6.3V 20% 1206

GRM31CR60J107ME39L Dimensions

GRM31CR60J107ME39L Dimensions





L size  3.2 ±0.3mm
W size  1.6 ±0.3mm
T size 1.6 ±0.3mm
External terminal width e 0.3 to 0.8mm
Distance between external terminals g 1.5mm min.
Size code in inch(mm) 1206 (3216M)

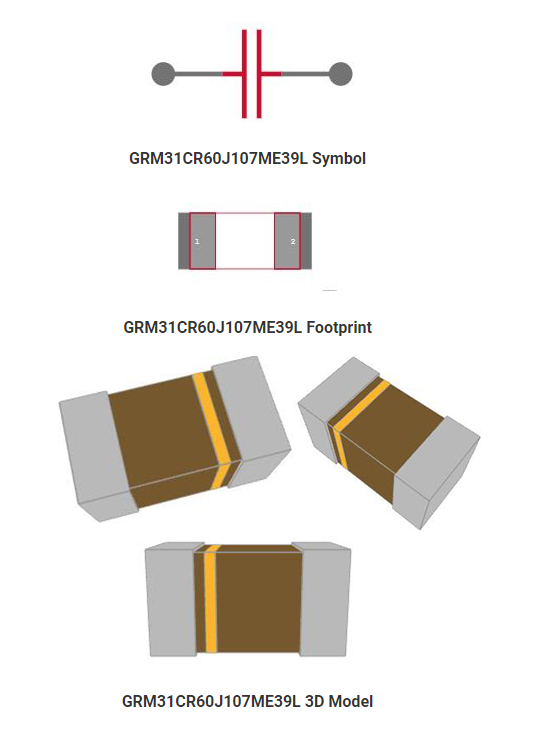

GRM31CR60J107ME39L 3D Model

Specifications

GRM31CR60J107ME39L Tech Specifications

Murata Electronics GRM31CR60J107ME39L technical specifications, attributes, parameters and parts with similar specifications to Murata Electronics GRM31CR60J107ME39L.

Product Attribute Attribute Value
Lifecycle StatusNRND (Last Updated: 1 month ago)
Factory Lead Time10 Weeks
MountSurface Mount
Mounting TypeSurface Mount, MLCC
Package / Case1206 (3216 Metric)
Terminal ShapeWRAPAROUND
Number of Pins2Pins
MaterialCeramic
Operating Temperature-55°C~85°C
PackagingTape & Reel (TR)
SeriesGRM
Size / Dimension0.126Lx0.063W 3.20mmx1.60mm
Tolerance±20%
Product Attribute Attribute Value
JESD-609 Codee3
Pbfree Codeyes
Part StatusActive
Moisture Sensitivity Level (MSL)1 (Unlimited)
Number of Terminations2Terminations
TerminationSMD/SMT
ECCN CodeEAR99
Temperature CoefficientX5R
Terminal FinishMatte Tin (Sn) - with Nickel (Ni) barrier
ApplicationsGeneral Purpose
Capacitance100μF
Voltage - Rated DC6.3V
Packing MethodTR, EMBOSSED, 7 INCH
Product Attribute Attribute Value
Depth1.6mm
Case Code (Metric)3216
Case Code (Imperial)1206
Temperature Characteristics CodeX5R
MultilayerYes
Voltage6.3V
Height1.6mm
Thickness (Max)0.071 1.80mm
Thickness1.8034mm
REACH SVHCNo SVHC
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Lead FreeLead Free
0 Products View Similar

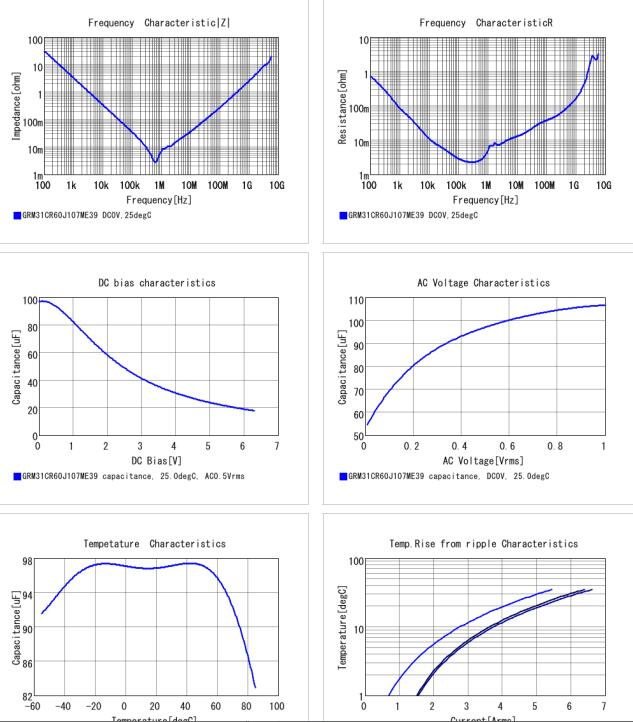

GRM31CR60J107ME39L Electrical Characteristics

GRM31CR60J107ME39L Electrical Characteristics

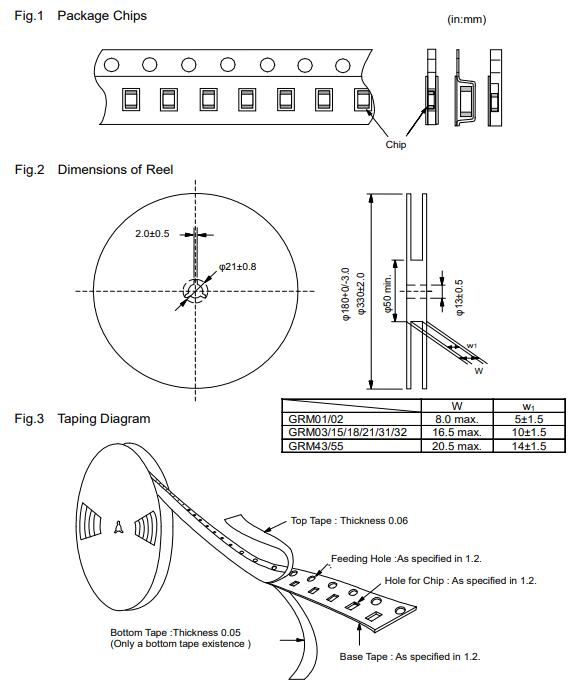

GRM31CR60J107ME39L Package information

GRM31CR60J107ME39L Package information

GRM31CR60J107ME39L Manufacturer

Murata is a global leader in the design, manufacture, and supply of advanced electronic materials, leading-edge electronic components, and multi-functional, high-density modules. Murata innovations can be found in a wide range of applications from mobile phones to home appliances, and automotive applications to energy management systems and healthcare devices.

Datasheet PDF

GRM31CR60J107ME39L Documents

Download datasheets and manufacturer documentation for GRM31CR60J107ME39L

Frequently Asked Questions

What is a GRM31CR60J107ME39L?
Murata's GRM31CR60J107ME39L multilayer ceramic capacitor is the answer you've been waiting for. GRM31CR60J107ME39L can handle a 6.3 VDC voltage. The maximum operating temperature of this MLCC capacitor is 85 degrees Celsius. This product will be sent in tape and reel packaging to allow for effective component mounting.
What’s the Operating Temperature of GRM31CR60J107ME39L?
-55°C~85°C.
What’s the Capacitance of GRM31CR60J107ME39L?
100μF.
What’s the voltage of GRM31CR60J107ME39L?
6.3V.
What’s the packaging way of GRM31CR60J107ME39L?
Tape & Reel (TR).
What’s the Tolerance of GRM31CR60J107ME39L?
±20%
FAQ
What is a GRM31CR60J107ME39L?
Murata's GRM31CR60J107ME39L multilayer ceramic capacitor is the answer you've been waiting for. GRM31CR60J107ME39L can handle a 6.3 VDC voltage. The maximum operating temperature of this MLCC capacitor is 85 degrees Celsius. This product will be sent in tape and reel packaging to allow for effective component mounting.
What’s the Operating Temperature of GRM31CR60J107ME39L?
-55°C~85°C.
What’s the Capacitance of GRM31CR60J107ME39L?
100μF.
What’s the voltage of GRM31CR60J107ME39L?
6.3V.
What’s the packaging way of GRM31CR60J107ME39L?
Tape & Reel (TR).
What’s the Tolerance of GRM31CR60J107ME39L?
±20%
