HMC344LC3TR-R5 RF Switch: Pinout, Feature, Datasheet

The HMC344LC3 includes an integrated binary decoder circuit which reduces the required logic control lines to two. The switch operates using a negative control voltage of 0/-5V and requires a fixed bias of -5V. Simple external level shifting circuitry allows this switch to be controlled with most TTL/CMOS positive logic families.

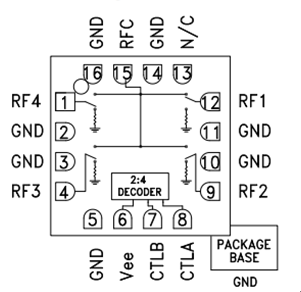

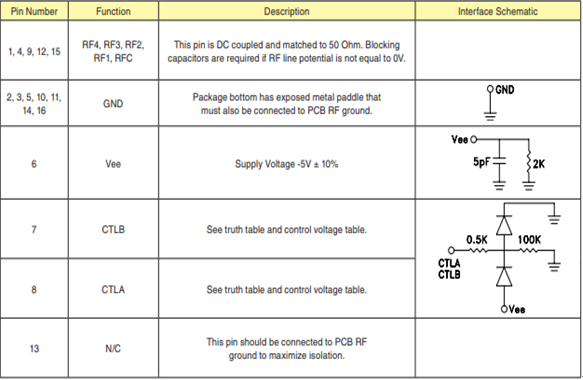

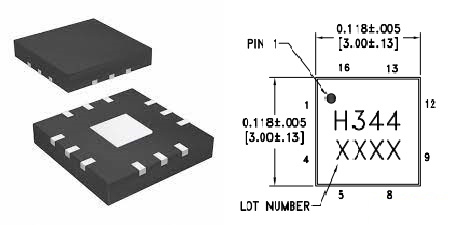

HMC344LC3TR-R5             HMC344LC3TR-R5 Pinout

Broadband Performance: DC - 8 GHz

Integrated 2:4 TTL Decoder

High Isolation: 40 dB@ 6 GHz

Low Insertion Loss: 2 dB@ 6 GHz

Non-Reflective Topology

Analog Devices Inc. HMC344LC3TR-R5 technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. HMC344LC3TR-R5.

The HMC344LC3 is ideal for:

• Broadband, Military, Radar & ECM

• Fiber Optics

• Switched Filter Banks

• Wireless below 8 GHz

• Test Instrumentation
