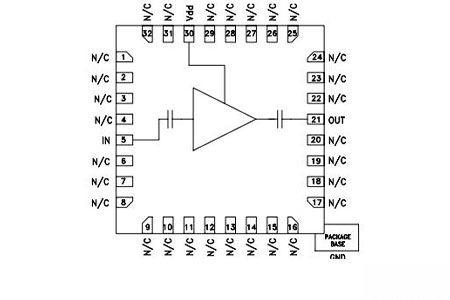

HMC462LP5 Pinout

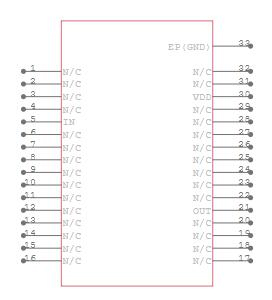

HMC462LP5 Symbol

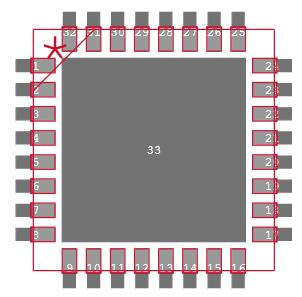

HMC462LP5 Footprint
HMC462LP5 3D Model
The HMC462LP5 is a GaAs MMIC pHEMT Low Noise Distributed Amplifier in leadless 5x5 mm surface-mount packages that operate between 2 and 20 GHz. The self-biased amplifier provides 13 dB of gain, 2.5 to 3.5 dB noise figure and +14.5 dBm of output power at 1 dB gain compression while requiring only 66 mA from a single +5V supply.
Gain flatness is excellent from 6 - 18 GHz making the HMC462LP5 & HMC462LP5E ideal for EW, ECM RADAR and test equipment applications. The wideband amplifier I/Os are internally matched to 50 Ohms and are internally DC blocked.
Noise Figure: 2.5 dB @ 10 GHz
Gain: 13 dB P1dB
Output Power: +14.5 dBm @ 10 GHz
Self-Biased: +5V @ 66mA
50 Ohm Matched Input/Output 2
5 mm 2 Leadless SMT Package
• Telecom Infrastructure
• Microwave Radio & VSAT
• Military EW, ECM & C 3 I
• Test Instrumentation
• Fiber Optics
The alternative for HMC465LP5:
HMC462LP5
HMC462LP5E
Analog Devices Inc. HMC462LP5 technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. HMC462LP5.
Analog Devices Inc. HMC462LP5 technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. HMC462LP5.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | PRODUCTION (Last Updated: 2 weeks ago) | |
| Factory Lead Time | 20 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 32-VFQFN Exposed Pad | |
| Surface Mount | YES | |
| Number of Pins | 32Pins | |
| Packaging | Strip | |
| JESD-609 Code | e0 | |
| Pbfree Code | no | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 32Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Max Operating Temperature | 85°C | |
| Min Operating Temperature | -40°C | |
| Max Power Dissipation | 3.25W | |
| Number of Functions | 1Function | |
| Construction | COMPONENT | |
| Reach Compliance Code | not_compliant | |
| Frequency | 2GHz~20GHz | |
| Base Part Number | HMC462 | |
| Pin Count | 32 | |
| Operating Supply Voltage | 5V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Power Supplies | 5V | |
| Number of Channels | 1Channel | |
| Test Frequency | 10GHz | |
| Operating Supply Current | 66mA | |
| Gain | 13dB | |
| RF/Microwave Device Type | WIDE BAND LOW POWER | |
| RF Type | General Purpose | |
| Characteristic Impedance | 50Ohm | |
| Noise Figure | 2.5dB | |
| P1dB | 14dBm | |
| RoHS Status | Non-RoHS Compliant | |
| Lead Free | Contains Lead |

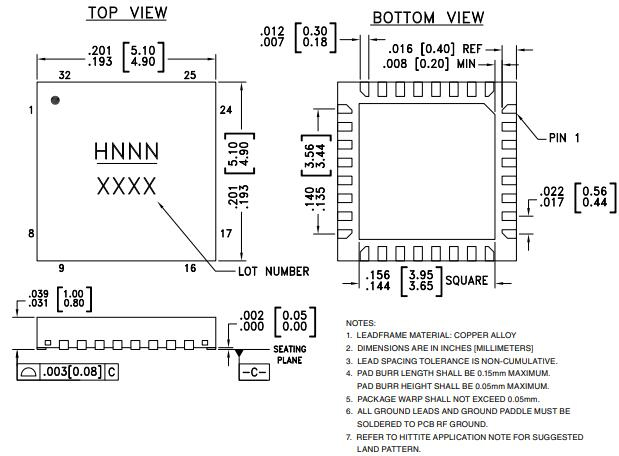

HMC462LP5 Package
