HMC5883L is a 3-Axis Digital Compass IC. This article mainly covers pinout, datasheet, applications, alternatives, and other details about HMC5883L.
HMC5883L Digital Compass IC: Pinout, Datasheet and Alternatives
SENSOR MAGMTR I2C 16LCC HMC5883L is a 3-Axis Digital Compass IC. This article mainly covers pinout, datasheet, applications, alternatives, and other details about HMC5883L.
117
Sep 1, 2021
Adam Maxwell
HMC5883L-T
Inquiry
Min.: 1 Mult.: 1
Quick Links
HMC5883L Pinout
HMC5883L CAD Model
Symbol
Symbol
Footprint
Footprint
3D Model
3D Model
HMC5883L Description
The HMC5883L is a surface-mount, multi-chip module designed for low-field magnetic sensing with a digital interface for applications such as low-cost compassing and magnetometry. The HMC5883L includes our state-of-the-art, high-resolution HMC118X series magneto-resistive sensors plus an ASIC containing amplification, automatic degaussing strap drivers, offset cancellation, and a 12-bit ADC that enables 1° to 2° compass heading accuracy.
Specifications
Honeywell Aerospace HMC5883L-T technical specifications, attributes, parameters and parts with similar specifications to Honeywell Aerospace HMC5883L-T.
HMC5883L-T Tech Specifications
HMC5883L-T Tech Specifications
Honeywell Aerospace HMC5883L-T technical specifications, attributes, parameters and parts with similar specifications to Honeywell Aerospace HMC5883L-T.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mounting Type | Surface Mount | |
| Package / Case | 16-LCC | |
| Number of Pins | 16Pins | |
| Supplier Device Package | 16-LCC | |
| Operating Temperature | -30°C~85°C TA | |
| Packaging | Strip | |
| Published | 2010 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Max Operating Temperature | 85°C | |
| Min Operating Temperature | -30°C | |
| Voltage - Supply | 2.16V~3.6V | |
| Current - Supply (Max) | 100μA Typ | |
| Output Type | I2C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Supply Current | 100μA | |
| Sensing Method | Magnetoresistive | |
| Sensing Range | ±0.8mT | |
| Axis | X, Y, Z | |
| RoHS Status | RoHS Compliant |
HMC5883L Features
-
It operates with a DC voltage ranging from 3V to 6V.
-
It supports communication protocol.
-
The sensor has 3-Axis Magnetoresistive Sensors, ASIC, 12-bit ADC, and strap drive circuits.
-
The HMC2883L measures strength of the magnetic field in a range of -8 to +8 gauss with an accuracy of 1-2 degrees.
-
The maximum data output rate is 160Hz.
HMC5883L Applications
-
Auto and personal navigation.
-
UAV systems.
-
Robotic navigation.
-
Location-based services (LBS).

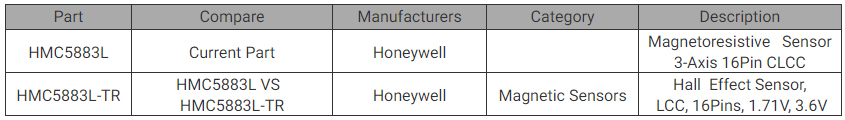

HMC5883L Alternative

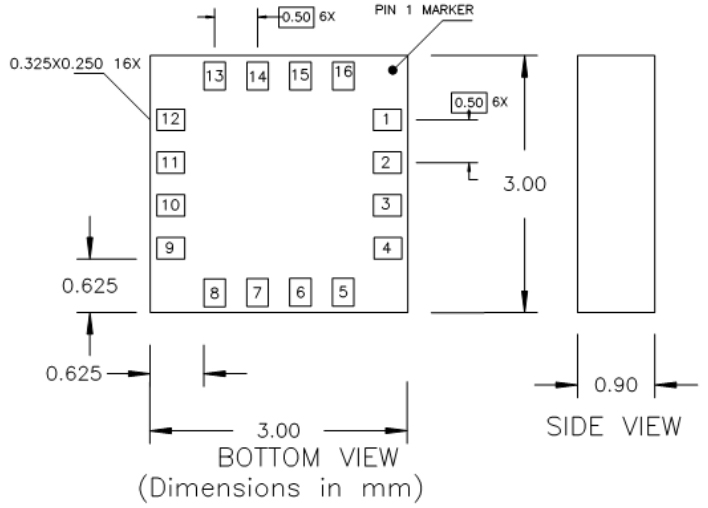

HMC5883L Package
HMC5883L Manufacturer
Honeywell Aerospace is a manufacturer of aircraft engines and avionics,[1] as well as a producer of auxiliary power units (APUs) and other aviation products. Headquartered in Phoenix, Arizona, it is a division of the Honeywell International conglomerate. It generates approximately $10 billion in annual revenue from a 50/50 mix of commercial and defense contracts.
Datasheet PDF
Download datasheets and manufacturer documentation for Honeywell Aerospace HMC5883L-T.
HMC5883L-T Documents
HMC5883L-T Documents
Download datasheets and manufacturer documentation for HMC5883L-T
ConflictMineralStatement
Honeywell-company-50.pdf
Frequently Asked Questions
What is HMC5883L used for?
HMC5883L is a 3-axis digital compass used for two general purposes: to measure the magnetization of a magnetic material like a ferromagnet or to measure the strength and, in some cases, the direction of the magnetic field at a point in space.
HMC5883L is a 3-axis digital compass used for two general purposes: to measure the magnetization of a magnetic material like a ferromagnet, or to measure the strength and, in some cases, the direction of the magnetic field at a point in space.
This is the basic working principle of the magnetometer. HMC5883L uses a magnetoresistive sensor arranged in a bridge circuit, which is made of nickel-iron (Ni-Fe magnetic film) material. This change in voltages is used to get the magnetic field direction in space.
FAQ
What is HMC5883L used for?
HMC5883L is a 3-axis digital compass used for two general purposes: to measure the magnetization of a magnetic material like a ferromagnet or to measure the strength and, in some cases, the direction of the magnetic field at a point in space.
HMC5883L is a 3-axis digital compass used for two general purposes: to measure the magnetization of a magnetic material like a ferromagnet, or to measure the strength and, in some cases, the direction of the magnetic field at a point in space.
This is the basic working principle of the magnetometer. HMC5883L uses a magnetoresistive sensor arranged in a bridge circuit, which is made of nickel-iron (Ni-Fe magnetic film) material. This change in voltages is used to get the magnetic field direction in space.
