MOSFET N-CH 200V 30A TO-247AD IRFP250 is an N channel MOSFET or power field-effect transistor available in TO-247 and some manufacturers also make it in the TO-3P transistor package.
1743
Apr 29, 2022
Ruth Bertie
How to test N Chanel MOSFET IRFP250 with Multimeter.
MOSFET N-CH 200V 30A TO-247AD
IRFP250 is an N channel MOSFET or power field-effect transistor available in TO-247 and some manufacturers also make it in the TO-3P transistor package. This article will unlock its pinout, datasheet, application, equivalent, how to run it and more details about IRFP250.
IRFP250
IRFP250 Pinout

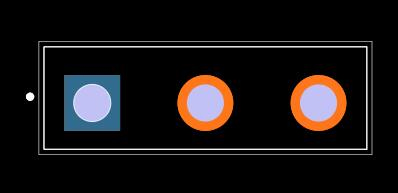

Footprint
IRFP250 Footprint
3D Model
IRFP250 3D Model

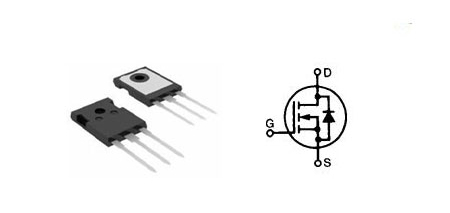

The IRFP250 is an N-Channel MOSFET or power field-effect transistor that is available in TO-247 and TO-3P transistor packages. The transistor has many features such as a low drain to source on-resistance of only 0.085 Ohm, a very fast switching speed of Nanosecond, which makes it ideal for use in applications requiring high-speed switching, a high input impedance, it is simple to drive and can be operated directly from a microcontroller or IC outputs, voltage control, temperature stability, and so on. All of these and other features make this gadget suitable for business use.
As previously stated, the IRFP250 MOSFET is primarily intended for use in applications such as UPS, AC to DC and DC to DC converters, lighting equipment, and so on, but it is not limited to these applications and can be used for a variety of other purposes as well. It can also be utilized to construct high-power audio amplifiers.
International standard package
JEDEC TO-247 AD
Low RDS (on) HDMOSTM process l Rugged polysilicon gate cell structure
High commutating DV/DT rating
Fast switching times
Switch-mode and resonant-mode
power supplies
Motor controls
Uninterruptible Power Supplies (UPS)
DC choppers
Easy to mount with 1 screw (isolated mounting screw hole)
Space savings
High power density
The equivalent for IRFP250:
IRFP260
STW38NB20
MTW32N20E
IRFP250 Package
With the acquisition of IXYS, Littelfuse significantly expands the breadth of its power semiconductor portfolio, with solutions spanning a full range of technologies. This diverse portfolio will provide customers with the best technology and enhanced, differentiated capabilities in target markets and geographies as well as deliver greater industry access and increased growth opportunities.
IXYS IRFP250 technical specifications, attributes, parameters and parts with similar specifications to IXYS IRFP250.
IXYS IRFP250 technical specifications, attributes, parameters and parts with similar specifications to IXYS IRFP250.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-247-3 | |
| Number of Pins | 3Pins | |
| Transistor Element Material | SILICON | |
| Current - Continuous Drain (Id) @ 25℃ | 30A Tc | |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 190W Tc | |
| Turn Off Delay Time | 110 ns | |
| Operating Temperature | -55°C~150°C TJ | |
| Packaging | Tube | |
| Published | 2000 | |
| Part Status | Obsolete |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Pin Count | 3 | |
| Qualification Status | Not Qualified | |
| Element Configuration | Single | |
| Operating Mode | ENHANCEMENT MODE | |
| Power Dissipation | 190W | |
| Case Connection | DRAIN | |
| FET Type | N-Channel | |
| Transistor Application | SWITCHING | |
| Rds On (Max) @ Id, Vgs | 85m Ω @ 18A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250μA | |
| Input Capacitance (Ciss) (Max) @ Vds | 2970pF @ 25V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Gate Charge (Qg) (Max) @ Vgs | 140nC @ 10V | |
| Rise Time | 130ns | |
| Vgs (Max) | ±20V | |
| Fall Time (Typ) | 98 ns | |
| Continuous Drain Current (ID) | 30A | |
| JEDEC-95 Code | TO-247AD | |
| Gate to Source Voltage (Vgs) | 20V | |
| Drain-source On Resistance-Max | 0.085Ohm | |
| Drain to Source Breakdown Voltage | 200V | |
| Pulsed Drain Current-Max (IDM) | 120A | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Lead Free |
Download datasheets and manufacturer documentation for IRFP250
