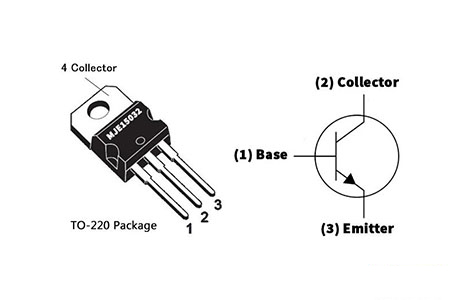

MJE15032 Pinout

Symbol

MJE15032 Symbol

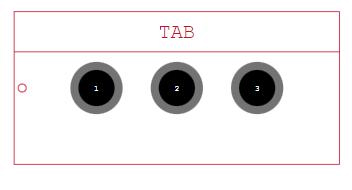

Footprint

MJE15032 Footprint

3D Model

MJE15032 3D Model

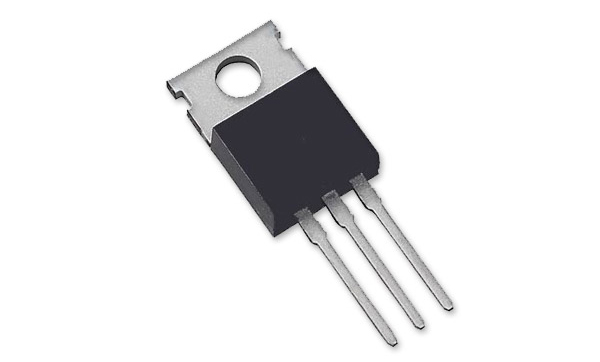

MJE15032 is an NPN transistor that is available in a TO-220 package from a variety of vendors. The transistor has several positive characteristics, such as a high transition frequency of 30MHz, a high collector to emitter voltage of 250V DC, and so on. The transistor's collector current is 8A, with a peak collector current of 16A. The peak collector is the value of the transistor on which the transistor can only survive for a few microseconds. The transistor has a maximum power dissipation of 50 Watts.

The transistor is primarily intended for high-frequency driver usage in audio amplifiers, but because of its intriguing specifications, it can also be employed in a range of other electrical applications. Because it is a power transistor, a sufficient heatsink is required. Because the transistor's collector is also linked to the heatsink mounting tab, it is advisable to isolate the heatsink from the circuit's open connections.

• High DC Current Gain

• High Current Gain − Bandwidth Product

• TO−220 Compact Package

• Epoxy Meets UL 94 V−0 @ 0.125 in

• These Devices are Pb−Free and are RoHS Compliant*

• Driving or Switching Loads under 8A

• BMS Applications

• Motor Drivers

• Battery Chargers

The equivalent for MJE15032:

• MJE5740

• 2SD1117

• MJE5742

• 2SD1118

• 2SD1124

• 2SD499

• 2SD501

• BU921T

• BU931T

MJE15032 transistor is primarily intended for use in high-frequency driver circuitry of audio amplifiers, but it is not confined to these applications and may also be used for a wide range of other reasons such as switch, motor driver, a variety of high DC voltage applications, and so on.

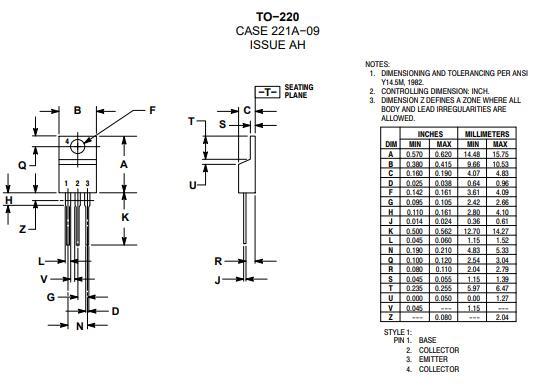

MJE15032 Package
