ICL7107CPLZ A/D Converter: Features, Pinout, and Datasheet

The ICL7107CPLZ is a 3.5-digit A/D converter in a 40-pin DIP package with great performance and low power consumption. It has a seven-segment decoder, display drivers, a clock, and a reference. An instrument-sized light-emitting diode (LED) display is directly driven by the ICL7107. It has an auto-zero range of less than 10V, a zero-drift range of less than 1V/°C, a 10pA input bias current, and a rollover error range of less than one count. True differential inputs and references are beneficial in all systems, but they provide a distinct advantage to the designer when measuring load cells, strain gauges, and other bridge-type transducers.

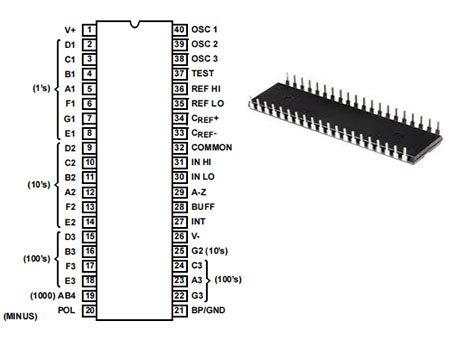

The following figure is ICL7107CPLZ Pinout.

Pinout

The followings are ICL7107CPLZ Symbol, Footprint and 3D Model.

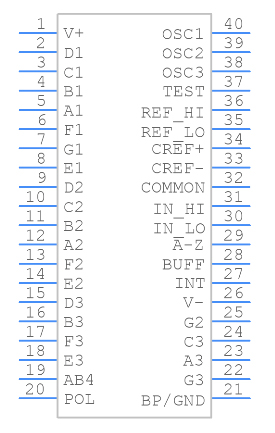

Symbol

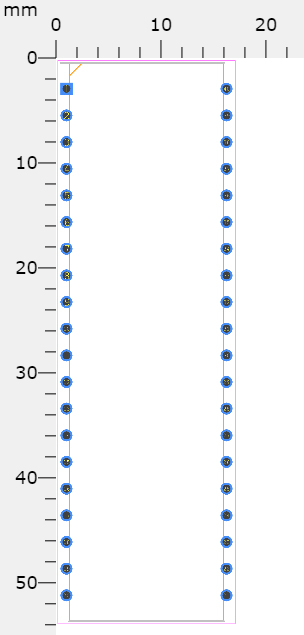

Footprint

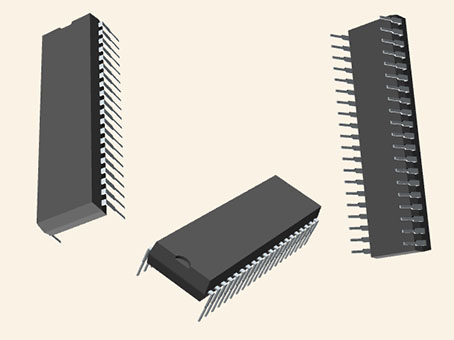

3D Model

• Guaranteed Zero Reading for 0V Input on All Scales

• True Polarity at Zero for Precise Null Detection

• 1pA Typical Input Current

• True Differential Input and Reference, Direct Display Drive

- LCD ICL7106, LED lCL7107

• Low Noise - Less Than 15µVP-P

• On-Chip Clock and Reference

• Low Power Dissipation - Typically Less Than 10mW

• No Additional Active Circuits Required

• Enhanced Display Stability

• Pb-Free Plus Anneal Available (RoHS Compliant)

Intersil (Renesas Electronics America) ICL7107CPLZ technical specifications, attributes, parameters and parts with similar specifications to Intersil (Renesas Electronics America) ICL7107CPLZ.

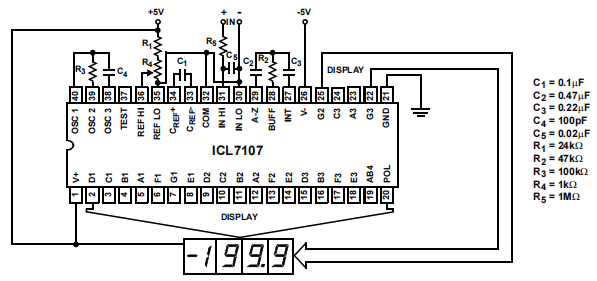

The following figure is ICL7107CPLZ Typical Applications and Test Circuits.

ICL7107 Test Circuit and Typical Application with Led Display Components Selected for 200mv Full Scale

• Pressure

• Voltage

• Resistance

• Temperature

• Conductance

• Current

• Speed

• Material

• Thickness

• Signal Processing

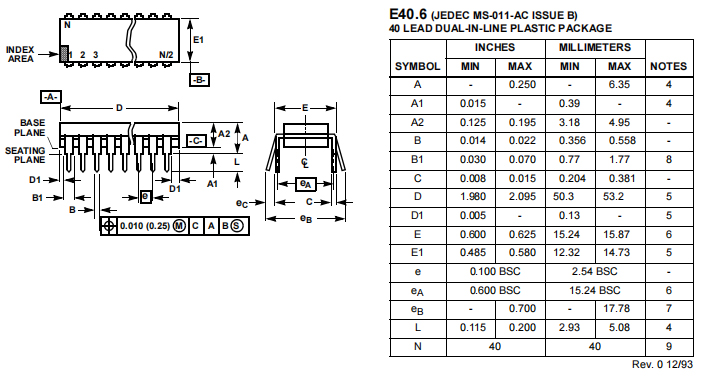

The following figure is ICL7107CPLZ Package.

Package
