Dual Voltage Supply build with the ICL7660
SWITCHED CAPACITOR CONVERTER
ICL7660S Super Voltage Converters are monolithic CMOS voltage conversion ICs that outperform similar devices. So this article is going to talk about more detailed information about ICL7660S.
ICL7660SIBA
ICL7660S Super Voltage Converters are monolithic CMOS voltage conversion ICs that outperform similar devices. They are direct replacements for the industry-standard ICL7660, having a 12V operational supply voltage range and lower supply current. A Frequency Boost pin has been added to allow users to obtain reduced output impedance even with smaller capacitors.
The ICL7660S converts positive to negative supply voltages for an input range of 1.5V to 12V, yielding complementary output voltages of -1.5V to -12V. For the charge pump and charge reservoir functions, just two non-critical external capacitors are required. With a 12V input, the ICL7660S can be linked to act as a voltage doubler, generating up to 22.8V. They can also be used as voltage multipliers or voltage dividers.
• Guaranteed Lower Max Supply Current for All Temperature Ranges
• Wide Operating Voltage Range: 1.5V to 12V
• 100% Tested at 3V
• Boost Pin (Pin 1) for Higher Switching Frequency
• Guaranteed Minimum Power Efficiency of 96%
• Improved Minimum Open Circuit Voltage Conversion Efficiency by 99%
• Improved SCR Latchup Protection
• Simple Conversion of +5V Logic Supply to ±5V Supplies
• Simple Voltage Multiplication VOUT = (-)VIN
• Easy to Use; Requires Only Two External Non-Critical Passive Components
• Improved Direct Replacement for Industry Standard ICL7660 and Other Second Source Devices
• Pb-Free Available (RoHS Compliant)

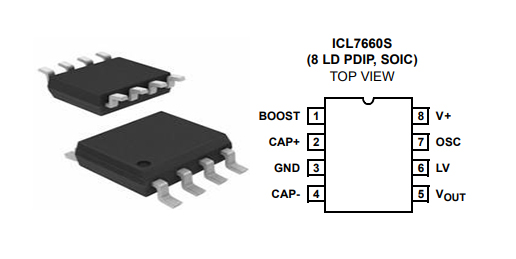

ICL7660S Pinout
ICL7660S Block Diagram
ICL7660S Symbol
ICL7660S Footprint
ICL7660S 3D Model
Rochester Electronics, LLC ICL7660SIBA technical specifications, attributes, parameters and parts with similar specifications to Rochester Electronics, LLC ICL7660SIBA.
Rochester Electronics, LLC ICL7660SIBA technical specifications, attributes, parameters and parts with similar specifications to Rochester Electronics, LLC ICL7660SIBA.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Surface Mount | YES | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tube | |
| JESD-609 Code | e0 | |
| Pbfree Code | no | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Finish | TIN LEAD | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| JESD-30 Code | R-PDSO-G8 | |
| Function | Ratiometric | |
| Number of Outputs | 1Output | |
| Voltage - Input (Max) | 12V | |
| Output Type | Fixed | |
| Voltage - Input (Min) | 1.5V | |
| Input Voltage-Nom | 5V | |
| Analog IC - Other Type | SWITCHED CAPACITOR CONVERTER |
| Product Attribute | Attribute Value | |
|---|---|---|
| Output Configuration | Positive or Negative | |
| Current - Output | 45mA | |
| Voltage - Output (Min/Fixed) | -Vin 2Vin | |
| Topology | Charge Pump | |
| Frequency - Switching | 10kHz~35kHz | |
| Synchronous Rectifier | No | |
| Switcher Configuration | DOUBLER INVERTER | |
| Length | 4.9mm | |
| Width | 3.9mm | |
| RoHS Status | Non-RoHS Compliant |
ICL7660S Test Circuit
| PARAMETER | SYMBOL | TEST CONDITIONS | MIN (Note 9) |
TYP | MAX (Note 9) |
UNITS |
| Oscillator Impedance | ZOIC | V+ = 2V | - | 1 | - | M |
| V+ = 5V | - | 100 | - | k | ||
| ICL7660A, V+ = 3V, TA = 25°C, OSC = Free running, Test Circuit Figure 13, unless otherwise specified | ||||||
| Supply Current (Note 13) | I+ | V+ = 3V, RL = , +25°C | - | 26 | 100 | A |
| 0°C < TA < +70°C | - | - | 125 | A | ||
| -40°C < TA < +85°C | - | - | 125 | A | ||
| Output Source Resistance | ROUT | V+ = 3V, IOUT = 10mA | - | 97 | 150 | |
| 0°C < TA < +70°C | - | - | 200 | | ||
| 40°C < TA < +85°C | - | - | 200 | | ||
| Oscillator Frequency (Note 13) | fOSC | V+ = 3V (same as 5V conditions) | 5 | 8 | - | kHz |
| 0°C < TA < +70°C | 3 | - | - | kHz | ||
| 40°C < TA < +85°C | 3 | - | - | kHz | ||
• Simple Conversion of +5V to ±5V Supplies
• Voltage Multiplication VOUT = ±nVIN
• Negative Supplies for Data Acquisition Systems and Instrumentation
• RS232 Power Supplies
• Supply Splitter, VOUT = ±VS
ICL7660S Package information
Rochester Electronics is the world's largest semiconductor continuous source maker. Rochester continues to develop and distribute mature products with product licensing from top manufacturers including Analog Devices, Altera, Cypress, Fairchild, Freescale, Infineon, Intel, NXP, Renesas, and Texas Instruments. This product life extension is crucial for long-term production and maintenance in industrial, transportation, and high-reliability applications. No other firm can match our variety, capabilities, or solutions, which include over 100,000 products and 15 billion units in stock.
Download datasheets and manufacturer documentation for ICL7660SIBA
