DGTL ISO 2500VRMS 2CH GP 8MSOP
IL511 is a Dc-correct digital isolator. This article mainly covers datasheet, pinout, applications, and other details about IL511.
IL511 Digital Isolators: Datasheet, Pinout and Applications
DGTL ISO 2500VRMS 2CH GP 8MSOP IL511 is a Dc-correct digital isolator. This article mainly covers datasheet, pinout, applications, and other details about IL511.
132
Aug 25, 2021
Claire Aldington
IL 511-1E
500In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $5.15732 | $5.16 |
| 10+ | $4.8654 | $48.65 |
| 100+ | $4.59 | $459 |
| 500+ | $4.33019 | $2165.09 |
| 1000+ | $4.08508 | $4085.08 |
Unit Price:$5.15732
Subtotal: $5.16
Quick Links
IL511 Pinout
IL511 CAD Model
Symbol
Footprint
3D Model
IL511 Description
IL5011 isolator is a low-cost isolator operating up to 2 Mbps over an operating temperature range of −40 ºC to 85 ºC.
IL511 Functional Diagram
Specifications
NVE Corp/Isolation Products IL 511-1E technical specifications, attributes, parameters and parts with similar specifications to NVE Corp/Isolation Products IL 511-1E.
IL 511-1E Tech Specifications
IL 511-1E Tech Specifications
NVE Corp/Isolation Products IL 511-1E technical specifications, attributes, parameters and parts with similar specifications to NVE Corp/Isolation Products IL 511-1E.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 1 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | |
| Surface Mount | YES | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tube | |
| Series | IsoLoop® | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | 5A991 | |
| Type | General Purpose |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply | 3V~5.5V | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Number of Functions | 2Functions | |
| Supply Voltage | 3.3V | |
| Terminal Pitch | 0.65mm | |
| Pin Count | 8 | |
| JESD-30 Code | S-PDSO-G8 | |
| Voltage - Isolation | 2500Vrms | |
| Supply Voltage-Max (Vsup) | 5.5V | |
| Supply Voltage-Min (Vsup) | 3V | |
| Number of Channels | 2Channels |
| Product Attribute | Attribute Value | |
|---|---|---|
| Data Rate | 2Mbps | |
| Rise / Fall Time (Typ) | 1ns 1ns | |
| Channel Type | Unidirectional | |
| Propagation Delay tpLH / tpHL (Max) | 25ns, 25ns | |
| Common Mode Transient Immunity (Min) | 30kV/μs | |
| Inputs - Side 1/Side 2 | 2/0 | |
| Isolated Power | No | |
| Pulse Width Distortion (Max) | 10ns | |
| Length | 3mm | |
| Height Seated (Max) | 1.1mm | |
| RoHS Status | ROHS3 Compliant |
IL511 Features
• 2 Mbps maximum speed
• DC-correct
• 3 V to 5 V power supplies
• 1.3 mA/channel typical quiescent current
• −40ºC to 85ºC operating temperature
• 50 kV/μs typ.; 30 kV/μs min. common-mode transient immunity
• 1000 VRMS/1500 VDC high voltage endurance
• 44000-year barrier life
• 10 ns pulse width distortion
• 25 ns propagation delay
• Low EMC footprint
• 8-pin MSOP and SOIC; 0.15", 0.3", and True 8™ mm 16-pin SOIC packages
• UL 1577 recognized; IEC 60747-5-5 (VDE 0884) certified
IL511 Applications
• ADCs and DACs
• Digital Fieldbus
• RS-485 and RS-422
• Multiplexed data transmission
• Data interfaces
• Board-to-board communication
• Digital noise reduction
• Ground loop elimination
• Peripheral interfaces
• Parallel bus
• Logic level shifting

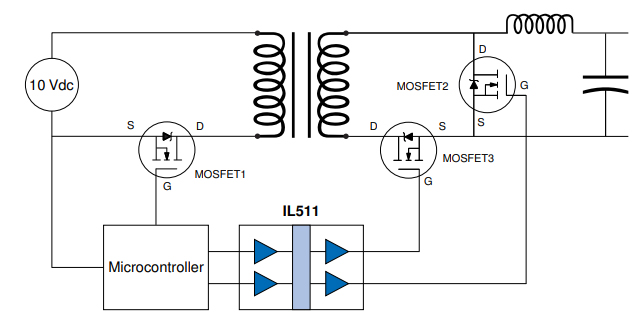

IL511 Application Circuit

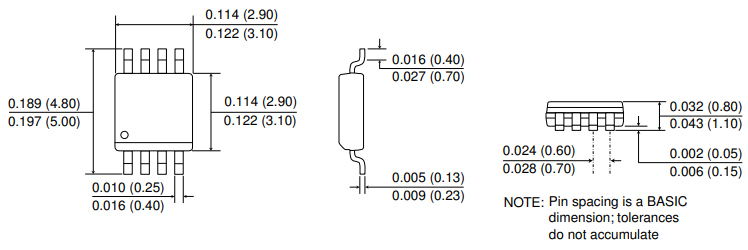

IL511 Package
IL511 Manufacturer
NVE is a leader in spintronics, nanotechnology. NVE licenses MRAM intellectual property and sells Giant Magnetoresistive (GMR) sensors and isolators.
Datasheet PDF
Download datasheets and manufacturer documentation for NVE Corp/Isolation Products IL 511-1E.
IL 511-1E Documents
IL 511-1E Documents
Download datasheets and manufacturer documentation for IL 511-1E
Datasheets
IL510-516, 521
Frequently Asked Questions
What is IL500-Series Isolators?
IL500-Series Isolators are a cost-effective alternative to digital optocouplers in a number of applications including serial interfaces, isolated Serial Peripheral Interface (SPI), isolated A/D converters, and isolated power interfaces.
FAQ
What is IL500-Series Isolators?
IL500-Series Isolators are a cost-effective alternative to digital optocouplers in a number of applications including serial interfaces, isolated Serial Peripheral Interface (SPI), isolated A/D converters, and isolated power interfaces.
