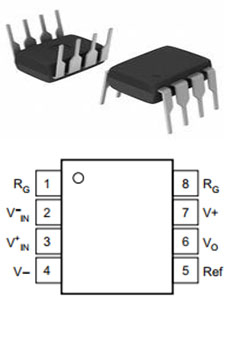

TEXAS INSTRUMENTS - INA126P - INSTRUMENT AMPLIFIER, 200KHZ, 94DB, DIP-8
The INA126P is a precision instrumentation amplifiers for accurate, low noise differential signal acquisition.
INA126P
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.97977 | $2.98 |
| 10+ | $2.8111 | $28.11 |
| 100+ | $2.65198 | $265.2 |
| 500+ | $2.50187 | $1250.94 |
| 1000+ | $2.36025 | $2360.25 |

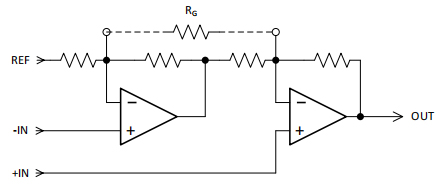

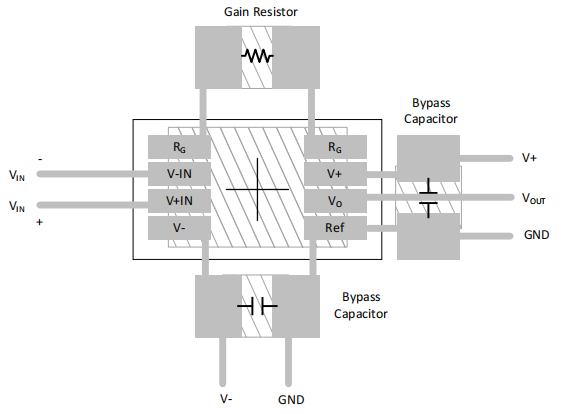

The INA126P is precision instrumentation amplifiers for accurate, low noise differential signal acquisition. Its two-op-amp design provides excellent performance with very low quiescent current (175µA/channel). This, combined with a wide operating voltage range of ±1.35V to ±18V, makes them ideal for portable instrumentation and data acquisition systems. Gain can be set from 5V/V to 10000V/V with a single external resistor. Laser trimmed input circuitry provides low offset voltage (250µV max), low offset voltage drift (3µV/°C max) and excellent common-mode rejection. Single version package options include 8-pin plastic DIP, SO-8 surface mount, and fine-pitch MSOP-8 surface-mount. Dual version is available in the space-saving SSOP-16 finepitch surface mount, SO-16, and 16-pin DIP. All are specified for the –40°C to +85°C industrial temperature range.
● LOW QUIESCENT CURRENT: 175µA/chan.
● WIDE SUPPLY RANGE: ±1.35V to ±18V
● LOW OFFSET VOLTAGE: 250µV max
● LOW OFFSET DRIFT: 3µV/°C max
● LOW NOISE: 35nV/√Hz
● LOW INPUT BIAS CURRENT: 25nA max
● 8-PIN DIP, SO-8, MSOP-8 SURFACE- MOUNT DUAL: 16-Pin DIP, SO-16, SSOP-16
● Industrial Sensor Amplifier: Bridge, RTD, Thermocouple
● Physiological Amplifier: ECG, EEG, EMG
● Multi-Channer Data Acquisition
● Portable, Battery Operated Systems

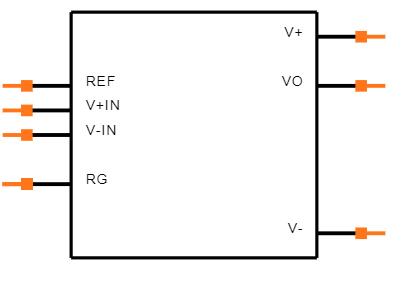

Symbol

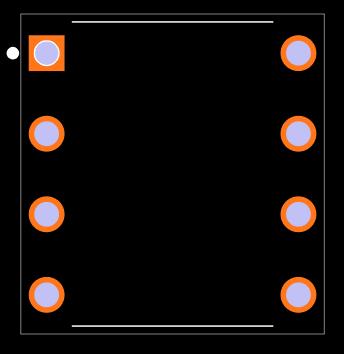

Footprint

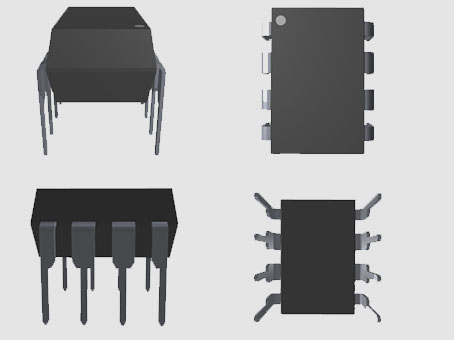

3D Model
Texas Instruments INA126P technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments INA126P.
Texas Instruments INA126P technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments INA126P.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 1 day ago) | |
| Factory Lead Time | 6 Weeks | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP (0.300, 7.62mm) | |
| Surface Mount | NO | |
| Number of Pins | 8Pins | |
| Weight | 523.190449mg | |
| Number of Elements | 2 Elements | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tube | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Resistance | 1GOhm | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | DUAL | |
| Number of Functions | 1Function | |
| Supply Voltage | 15V | |
| Base Part Number | INA126 | |
| Pin Count | 8 | |
| Number of Circuits | 1Circuit | |
| Operating Supply Current | 175μA | |
| Nominal Supply Current | 200μA | |
| Max Supply Current | 200μA | |
| Quiescent Current | 175μA | |
| Slew Rate | 0.4V/μs | |
| Amplifier Type | Instrumentation | |
| Common Mode Rejection Ratio | 83 dB | |
| Current - Input Bias | 10nA | |
| Voltage - Supply, Single/Dual (±) | 2.7V~36V ±1.35V~18V | |
| Output Current per Channel | 10mA | |
| Input Offset Voltage (Vos) | 250μV | |
| Bandwidth | 200 kHz |
| Product Attribute | Attribute Value | |
|---|---|---|
| Gain Bandwidth Product | 200 kHz | |
| Neg Supply Voltage-Nom (Vsup) | -15V | |
| Voltage Gain | 80dB | |
| Power Supply Rejection Ratio (PSRR) | 106dB | |
| Voltage - Input Offset | 100μV | |
| -3db Bandwidth | 0.2MHz | |
| Dual Supply Voltage | 15V | |
| Input Voltage Noise Density | 35nV/sqrt Hz | |
| Voltage Gain-Nom | 100 | |
| Height | 5.08mm | |
| Length | 9.81mm | |
| Width | 6.35mm | |
| Thickness | 3.9mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
