The INA219AIDCNR is a digital current sensing amplifier that supports I 2C and SMBus interfaces. The article is going to introduce the details of the component.
INA219AIDCNR Amplifier: Pinout, Datasheet, INA219
The INA219AIDCNR is a digital current sensing amplifier that supports I 2C and SMBus interfaces. The article is going to introduce the details of the component.
189
Feb 10, 2022
Fitch Jacob
INA219AIDCNR
24282In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.97277 | $2.97 |
| 10+ | $2.8045 | $28.05 |
| 100+ | $2.64575 | $264.58 |
| 500+ | $2.49599 | $1247.99 |
| 1000+ | $2.35471 | $2354.71 |
Unit Price:$2.97277
Subtotal: $2.97
Quick Links
INA219AIDCNR Description
The INA219AIDCNR is a digital current sensing amplifier that supports I 2C and SMBus interfaces. It offers the digital current, voltage, and power readings required for exact decision-making in finely controlled systems. Programmable registers enable adjustable setup of measurement resolution and continuous versus triggered operation.
INA219AIDCNR Pinout
INA219AIDCNR CAD Model
Symbol

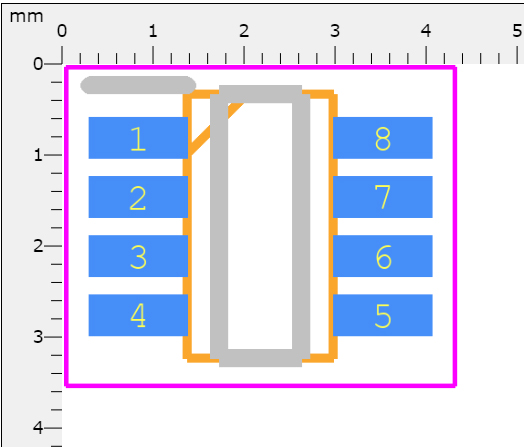

Footprint
3D Model
INA219AIDCNR Features
• Senses Bus Voltages from 0 to 26 V
• Reports Current, Voltage, and Power
• 16 Programmable Addresses
• High Accuracy: 0.5% (Maximum) Over Temperature
• Filtering Options
• Calibration Registers
• SOT23-8 and SOIC-8 Packages
INA219AIDCNR Functional Block Diagram
INA219AIDCNR Recommended Operating Conditions
| MIN | NOM | UNIT | |
| VCM | 12 | V | |
| Vs | 3.3 | V | |
| Ta | -25 | °C | |
INA219AIDCNR Equivalent
Specifications
INA219AIDCNR Tech Specifications
INA219AIDCNR Tech Specifications
Texas Instruments INA219AIDCNR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments INA219AIDCNR.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 1 day ago) | |
| Factory Lead Time | 12 Weeks | |
| Contact Plating | Gold | |
| Mounting Type | Surface Mount | |
| Package / Case | SOT-23-8 | |
| Surface Mount | YES | |
| Number of Pins | 8Pins | |
| Weight | 40.001177mg | |
| Operating Temperature | -40°C~125°C | |
| Packaging | Tape & Reel (TR) | |
| Series | Zero-Drift | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
| ECCN Code | EAR99 | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING |
| Product Attribute | Attribute Value | |
|---|---|---|
| Peak Reflow Temperature (Cel) | 260 | |
| Supply Voltage | 3.3V | |
| Terminal Pitch | 0.65mm | |
| Base Part Number | INA219 | |
| Function | Current Monitor | |
| Output Type | Digital | |
| Number of Channels | 2Channels | |
| Trim/Adjustable Output | YES | |
| Max Supply Voltage | 5.5V | |
| Min Supply Voltage | 3V | |
| Analog IC - Other Type | POWER SUPPLY SUPPORT CIRCUIT | |
| Operating Supply Current | 1mA | |
| Nominal Supply Current | 700μA | |
| Max Supply Current | 5mA | |
| Adjustable Threshold | NO | |
| Quiescent Current | 700μA | |
| Accuracy | ±1% | |
| Min Input Voltage | 0V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Common Mode Rejection Ratio | 100 dB | |
| Max Input Voltage | 26V | |
| Output Current per Channel | 10mA | |
| Input Offset Voltage (Vos) | 100μV | |
| Threshold Voltage | 2V | |
| Sensing Method | High-Side | |
| Number of Amplifiers | 1Amplifier | |
| Features | I2C | |
| Height | 1.45mm | |
| Length | 2.9mm | |
| Width | 1.63mm | |
| Thickness | 1.1mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
INA219AIDCNR Applications
Servers
• Telecom Equipment
• Notebook Computers
• Power Management
• Battery Chargers
• Welding Equipment
• Power Supplies
• Test Equipment
INA219AIDCNR Typical Application Circuit
INA219AIDCNR Typical Application Circuit
INA219AIDCNR Package
INA219AIDCNR Manufacturer
Texas Instruments Incorporated (TI) is an American technology company based in Dallas, Texas, that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally. It is one of the top 10 semiconductor companies worldwide based on sales volume. The company's focus is on developing analog chips and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing technology and education technology products including calculators, micro-controllers, and multi-core processors. The company boasts 45,000 patents around the globe as of 2016.
Datasheet PDF
INA219AIDCNR Documents
INA219AIDCNR Documents
Download datasheets and manufacturer documentation for INA219AIDCNR
PCN Design/Specification
Data Sheet Chg 04/Feb/2016
Frequently Asked Questions
What is INA219AIDCNR?
The INA219AIDCNR is a digital current sensing amplifier that supports I 2C and SMBus interfaces. It offers the digital current, voltage, and power readings required for exact decision-making in finely controlled systems. Programmable registers enable adjustable setup of measurement resolution and continuous versus triggered operation.
What is the recommended operating temperature of the component?
-40°C~125°C.
What is the package of the device?
SOT-23-8.
What is the component’s number of pins?
8.
FAQ
What is INA219AIDCNR?
The INA219AIDCNR is a digital current sensing amplifier that supports I 2C and SMBus interfaces. It offers the digital current, voltage, and power readings required for exact decision-making in finely controlled systems. Programmable registers enable adjustable setup of measurement resolution and continuous versus triggered operation.
What is the recommended operating temperature of the component?
-40°C~125°C.
What is the package of the device?
SOT-23-8.
What is the component’s number of pins?
8.
