36V, 16-bit, ultra-precise i2c output current/voltage/power monitor w/alert 10-VSSOP -40 to 125 The INA226AIDGSR is a digital current sensing amplifier that supports I 2C and SMBus interfaces. The article is going to introduce its pinout, features, etc.
274
Feb 8, 2022
Daniel Hope
INA226AIDGSR Supplier and TI INA226AIDGST(226) Distributor in China - Rantle East Electronic
36V, 16-bit, ultra-precise i2c output current/voltage/power monitor w/alert 10-VSSOP -40 to 125
The INA226AIDGSR is a digital current sensing amplifier that supports I 2C and SMBus interfaces. The article is going to introduce its pinout, features, etc.
INA226AIDGSR
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.55738 | $2.56 |
| 10+ | $2.41262 | $24.13 |
| 100+ | $2.27606 | $227.61 |
| 500+ | $2.14723 | $1073.62 |
| 1000+ | $2.02569 | $2025.69 |
The INA226AIDGSR is a digital current sensing amplifier that supports I 2C and SMBus interfaces. It offers the digital current, voltage, and power readings required for exact decision-making in finely controlled systems. Programmable registers enable adjustable setup of measurement resolution and continuous versus triggered operation. Beginning with Table 4, detailed register information comes at the end of this data sheet. A block diagram of the INA226AIDGSR device can be seen in the Functional Block Diagram section.
Symbol
Footprint

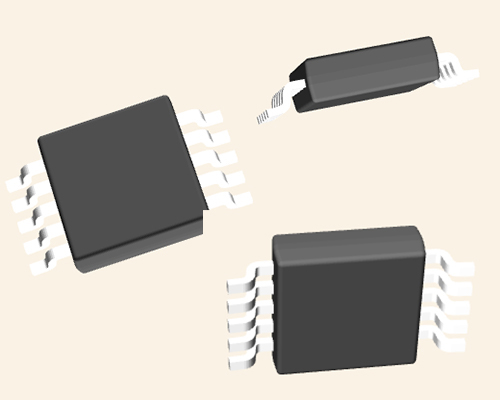

3D Model
• Senses Bus Voltages From 0 V to 36 V
• High-Side or Low-Side Sensing
• Reports Current, Voltage, and Power
• High Accuracy:
– 0.1% Gain Error (Max)
– 10 μV Offset (Max)
• Configurable Averaging Options
• 16 Programmable Addresses
• Operates from 2.7-V to 5.5-V Power Supply
• 10-Pin, DGS (VSSOP) Package
| MIN | NOM | MAX | UNIT | ||
| VCM | Common-mode input voltage | 12 | V | ||
| VVS | Operating supply voltage | 3.3 | V | ||
| Ta | Operating free-air temperature | -40 | 125 | °C | |
Texas Instruments INA226AIDGSR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments INA226AIDGSR.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 1 day ago) | |
| Factory Lead Time | 16 Weeks | |
| Contact Plating | Gold | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | |
| Number of Pins | 10Pins | |
| Operating Temperature | -40°C~125°C | |
| Packaging | Cut Tape (CT) | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
| Number of Terminations | 10Terminations | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| HTS Code | 8542.39.00.01 | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Supply Voltage | 3.3V | |
| Terminal Pitch | 0.5mm | |
| Base Part Number | INA226 | |
| Function | Current Monitor | |
| Power Supplies | 3.3V | |
| Max Supply Voltage | 5.5V | |
| Min Supply Voltage | 2.7V | |
| Analog IC - Other Type | POWER SUPPLY MANAGEMENT CIRCUIT | |
| Nominal Supply Current | 330μA | |
| Accuracy | ±0.02% | |
| Common Mode Rejection Ratio | 140 dB |
| Product Attribute | Attribute Value | |
|---|---|---|
| Input Offset Voltage (Vos) | 2.5μV | |
| Supply Current-Max (Isup) | 0.42mA | |
| Threshold Voltage | 2 | |
| Sensing Method | High/Low-Side | |
| Input Bias Current | 10μA | |
| Min Supply Voltage (DC) | 2.7V | |
| Height | 1.07mm | |
| Length | 3mm | |
| Width | 3mm | |
| Thickness | 1.02mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
• Servers
• Telecom Equipment
• Computing
• Power Management
• Battery Chargers
• Power Supplies
• Test Equipment

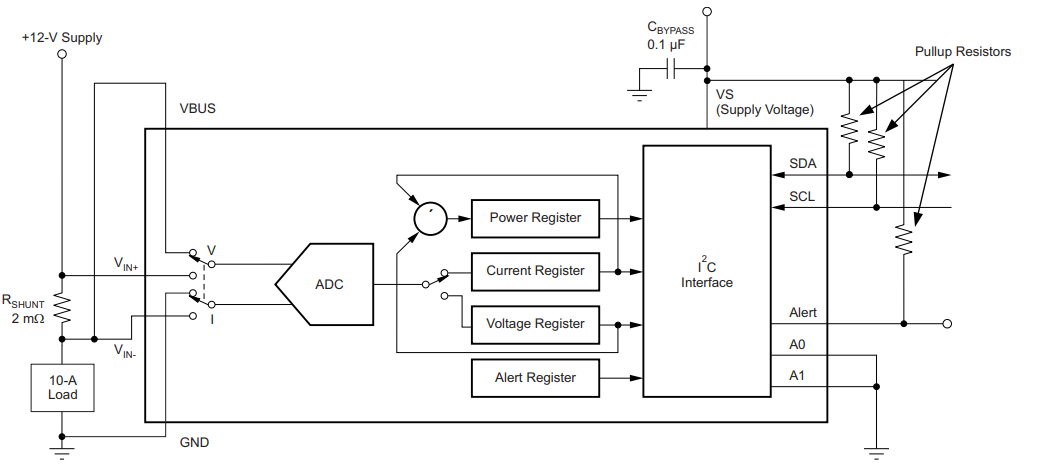

INA226AIDGSR Typical Application Circuit
The INA260 has a maximum CMRR of 150uA/V. Convert this to voltage terms by multiplying 150uA/V by 2 mOhms, which equals 300nV/V --> 20*log(1V/300nV) = 130dB minimum. The INA226 has a minimum CMRR of 126dB. The offset (10uV), offset drift (100nV/degC), and ADC shunt voltage LSB (2.5uV) of the two devices are the same. From above, we can know that the two components are the same.
Texas Instruments Incorporated (TI) is an American technology company based in Dallas, Texas, that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally. It is one of the top 10 semiconductor companies worldwide based on sales volume. The company's focus is on developing analog chips and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing technology and education technology products including calculators, micro-controllers, and multi-core processors. The company boasts 45,000 patents around the globe as of 2016.
Download datasheets and manufacturer documentation for INA226AIDGSR
