IR2104 Simple Power Inverter DC to AC 12V to 220V
IC GATE DRVR HALF-BRIDGE 8DIP
The IR2104 is a high voltage, high-speed power MOSFET and IGBT driver. This article will cover more details about IR2104. And more, huge range of Semiconductors, Capacitors, Resistors and ICs in stock. Welcome RFQ.
IR2104

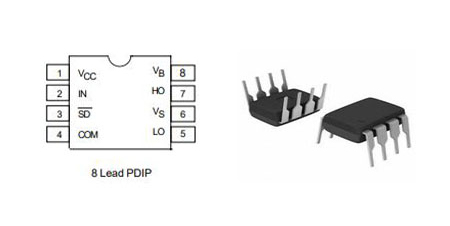

IR2104 Pinout
IR2104 Symbol
IR2104 Footprint
IR2104 3D Model
The IR2104 is a high voltage, high-speed power MOSFET and IGBT driver with dependent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic.
The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates from 10 to 600 volts.
Infineon Technologies IR2104 technical specifications, attributes, parameters and parts with similar specifications to Infineon Technologies IR2104.
Infineon Technologies IR2104 technical specifications, attributes, parameters and parts with similar specifications to Infineon Technologies IR2104.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP (0.300, 7.62mm) | |
| Surface Mount | NO | |
| Driver Configuration | Half-Bridge | |
| Logic voltage-VIL, VIH | 0.8V 3V | |
| Operating Temperature | -40°C~150°C TJ | |
| Packaging | Tube | |
| Published | 1996 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply | 10V~20V | |
| Terminal Position | DUAL | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Number of Functions | 1Function | |
| Supply Voltage | 15V | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Part Number | IR2104 | |
| JESD-30 Code | R-PDIP-T8 | |
| Qualification Status | Not Qualified | |
| Input Type | Non-Inverting | |
| Output Characteristics | TOTEM-POLE | |
| Output Polarity | TRUE |
| Product Attribute | Attribute Value | |
|---|---|---|
| Input Characteristics | SCHMITT TRIGGER | |
| Rise / Fall Time (Typ) | 100ns 50ns | |
| Channel Type | Synchronous | |
| Number of Drivers | 2Drivers | |
| Output Peak Current Limit-Nom | 0.36A | |
| Gate Type | IGBT, N-Channel MOSFET | |
| Current - Peak Output (Source, Sink) | 210mA 360mA | |
| High Side Driver | YES | |
| High Side Voltage - Max (Bootstrap) | 600V | |
| Length | 9.88mm | |
| Height Seated (Max) | 5.33mm | |
| RoHS Status | Non-RoHS Compliant |
• Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune
• Gate drive supply range from 10 to 20V
• Undervoltage lockout
• 3.3V, 5V and 15V input logic compatible
• Cross-conduction prevention logic
• Internally set deadtime
• High side output in phase with the input
• Shut down input turns off both channels
• Matched propagation delay for both channels
• Also available LEAD-FREE

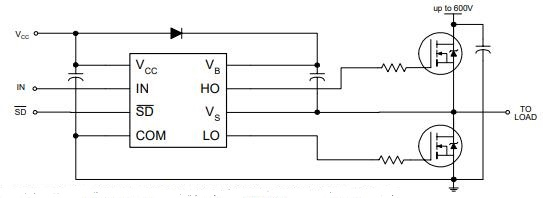

IR2104 Typical Schematic
IR2104 Functional Block Diagram

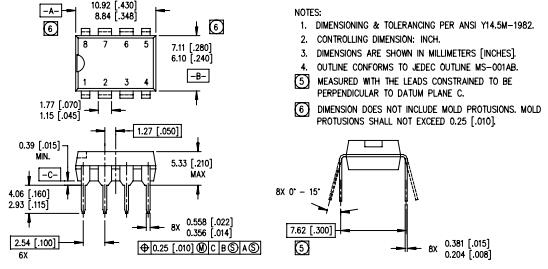

IR2104 Package
On April 1, 1999, Siemens Semiconductors officially changed its name to Infineon Technologies. Infineon is a dynamic and flexible company. Success in the highly competitive and ever-changing microelectronics world is our constant goal. As the world's leading designer, manufacturer and supplier, Infineon has a wide range of products used in various microelectronics applications. Our product portfolio includes not only logic products, including digital, mixed-signal and analogue integrated circuits but also discrete semiconductor products.
Download datasheets and manufacturer documentation for Infineon Technologies IR2104
Download datasheets and manufacturer documentation for IR2104
