IC GATE DRVR HI/LOW SIDE 14DIP
Hello everyone, welcome to the new post today. The IR2112 is a high voltage IC that acts as a MOSFET driver and IGBT driver. This article mainly introduces circuit, pinout, datasheet, and other detailed information about Infineon Technologies IR2112.
IR2112
The IR2112 is a high voltage IC that acts as a MOSFET driver and IGBT driver. It has independent high and low-side referenced output channels with a threshold voltage of 600 V.
Bootstrap feature makes it compatible with high-side driver applications. Additionally, it has Schmitt triggered inputs that are compatible with the standard CMOS and LSTTL outputs. The voltage range is 10V to 20V.
Furthermore, it has applications that require the circuitry of both high and low-side drive, for example, half-bridge and full-bridge circuits. It is available in 14 Lead PDIP and 16 lead SOIC packages.
| Pin Number | Pin Name | Description |
| 1 | LO | Logic supply |
| 2 | COM | Logic input for high side gate driver output (HO), in phase |
| 3 | VCC | Logic input for shutdown |
| 5 | VS | Logic input for low side gate driver output (LO), in phase |
| 6 | VB | Logic ground |
| 7 | HO | High side floating supply |
| 9 | VDD | High side gate drive output |
| 10 | HIN | High side floating supply return |
| 11 | SD | Low side supply |
| 12 | LIN | Low side gate drive output |
| 13 | VSS | Low side return |
Symbol
Footprint

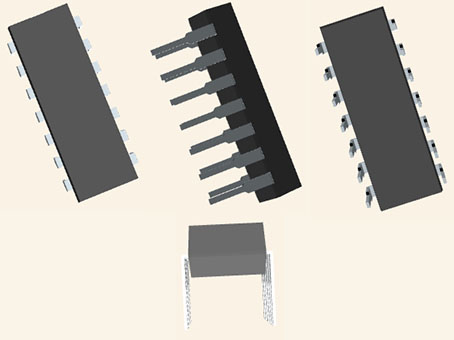

3D Model
-High and low side driver IC with source current 0.25 A and sink current 0.5 A
-It can tolerate negative transient voltage
-The range of separate voltage supply is from 3.3V to 20V and gate driver supply range is from 10 to 20 V
-floating channel designed for bootstrap operation
-Inputs and outputs are in phase
-Matched propagation delay and under-voltage lockout for both channels
-Threshold voltage is +600 V
-Cycle by cycle edge-triggered shutdown logic
-3.3V logic compatible
-Logic and power ground ±5V offset
-CMOS Schmitt-triggered inputs with pull-down
Infineon Technologies IR2112 technical specifications, attributes, parameters and parts with similar specifications to Infineon Technologies IR2112.
Infineon Technologies IR2112 technical specifications, attributes, parameters and parts with similar specifications to Infineon Technologies IR2112.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mounting Type | Through Hole | |
| Package / Case | 14-DIP (0.300, 7.62mm) | |
| Surface Mount | NO | |
| Driver Configuration | High-Side or Low-Side | |
| Logic voltage-VIL, VIH | 6V 9.5V | |
| Operating Temperature | -40°C~150°C TJ | |
| Packaging | Tube | |
| Published | 1996 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 14Terminations | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply | 10V~20V | |
| Terminal Position | DUAL | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Number of Functions | 1Function | |
| Supply Voltage | 15V | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Part Number | IR2112 | |
| JESD-30 Code | R-PDIP-T14 | |
| Qualification Status | Not Qualified | |
| Input Type | Non-Inverting | |
| Rise / Fall Time (Typ) | 80ns 40ns | |
| Interface IC Type | HALF BRIDGE BASED MOSFET DRIVER |
| Product Attribute | Attribute Value | |
|---|---|---|
| Channel Type | Independent | |
| Number of Drivers | 2Drivers | |
| Turn On Time | 0.18 μs | |
| Output Peak Current Limit-Nom | 0.5A | |
| Gate Type | IGBT, N-Channel MOSFET | |
| Current - Peak Output (Source, Sink) | 250mA 500mA | |
| High Side Driver | YES | |
| Turn Off Time | 0.16 μs | |
| High Side Voltage - Max (Bootstrap) | 600V | |
| Length | 19.305mm | |
| Height Seated (Max) | 5.33mm | |
| RoHS Status | Non-RoHS Compliant |
IR2110, IR2118, IR2101, IR2102, IR2104, IR2106, IR2184
| Part Number | Description | Manufacturer |
| IR2112DRIVERS AND INTERFACES | Half Bridge Based MOSFET Driver, 0.5A, CMOS, PDIP14, PLASTIC, MS-001AC, DIP-14 | International Rectifier |
| IR2112PBFDRIVERS AND INTERFACES | Half Bridge Based MOSFET Driver, 0.5A, CMOS, PDIP14, LEAD-FREE, PLASTIC, MS-001AC, DIP-14 | Infineon Technologies AG |
IR2112 Functional Block Diagram
This IC can be used as both a Mosfet driver and an IGBT driver. These IC’s are commonly used in half-bridge circuits for switching Mosfets. You can use this IC in high-frequency applications due to its matched propagation delays. It is used in high voltage applications for switching discrete power Mosfets ON and OFF using low voltage input.
The connection diagram of this IC IR2112 is shown in the figure below. HIN and LIN are the input signals for the high and low driver sides. They connect to some microcontroller or a voltage supply through a switch and are provided with an input signal of range 4 to 5V. It has a shutdown pin which is provided to protect the circuit in case of overvoltages or current by connecting this pin to +5V. It will shut down the circuit.
Typical Connection
Floating Supply Voltage Transient Test Circuit
Switching Time Test Circuit
▲Used in designing H-bridge, half-bridge, and full-bridge circuits
▲Used in switched-mode power supplies
▲Used in inverters, traction motor control, and induction heating.
Infineon Technologies AG is a German semiconductor manufacturer founded in 1999 when the semiconductor operations of the former parent company Siemens AG were spun off. Infineon has about 46,665 employees and is one of the ten largest semiconductor manufacturers worldwide. It is the market leader in automotive and power semiconductors.
Download datasheets and manufacturer documentation for Infineon Technologies IR2112.
Download datasheets and manufacturer documentation for IR2112
