IC DRIVER HALF BRIDGE OSC 8DIP
IR2153 is a self-oscillating half-bridge driver. This article enforces datasheet, equivalent, circuit, frequency, applications, and more details about the half-bridge IR2153 MOSFET driver. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and Ics in stock. Welcome your RFQ!
IR2153PBF
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.08345 | $1.08 |
| 10+ | $1.02212 | $10.22 |
| 100+ | $0.96427 | $96.43 |
| 500+ | $0.90969 | $454.85 |
| 1000+ | $0.85819 | $858.19 |
| Pin Number | Pin Name | Description |
| 1 | VCC | Logic and internal gate drive supply voltage |
| 2 | RT | Oscillator timing resistor input |
| 3 | CT | Oscillator timing capacitor input |
| 4 | COM | IC power and signal ground |
| 5 | LO | Low side gate driver output |
| 6 | VS | High voltage floating supply return |
| 7 | HO | High side gate driver output |
| 8 | VB | High side gate driver floating supply |
IR2153 Symbol

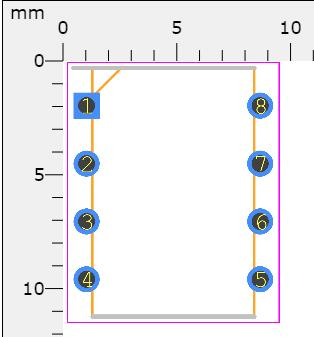

IR2153 Footprint
IR2153 3D Model
The IR2153 includes a high voltage half-bridge gate driver with a front-end oscillator comparable to the industry-standard CMOS 555 timer and is an enhanced version of the popular IR2155 and IR2151 gate driver ICs. The IR2153 has more features and is more user-friendly than prior ICs. The CT pin features a shutdown capability that allows both gate driver outputs to be disabled using a low voltage control signal. Furthermore, after the rising under-voltage lockout threshold on VCC is achieved, the gate driver output pulse widths are the same, resulting in a more stable frequency vs time profile at startup.
Infineon Technologies IR2153PBF technical specifications, attributes, parameters and parts with similar specifications to Infineon Technologies IR2153PBF.
Infineon Technologies IR2153PBF technical specifications, attributes, parameters and parts with similar specifications to Infineon Technologies IR2153PBF.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 18 Weeks | |
| Mount | Surface Mount, Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP (0.300, 7.62mm) | |
| Number of Pins | 8Pins | |
| Driver Configuration | Half-Bridge | |
| Turn Off Delay Time | 100 ns | |
| Operating Temperature | -40°C~125°C TJ | |
| Packaging | Tube | |
| Published | 1996 | |
| Part Status | Not For New Designs | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Type | Integrated Circuit (IC) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Power Dissipation | 1W | |
| Voltage - Supply | 10V~15.6V | |
| Terminal Position | DUAL | |
| Number of Functions | 1Function | |
| Supply Voltage | 12V | |
| Frequency | 106kHz | |
| Base Part Number | IR2153PBF | |
| Number of Outputs | 2Outputs | |
| Output Voltage | 10V | |
| Max Output Current | 400mA | |
| Nominal Supply Current | 5mA | |
| Power Dissipation | 1W | |
| Output Current | 400mA | |
| Max Supply Current | 5mA | |
| Input Type | RC Input Circuit |
| Product Attribute | Attribute Value | |
|---|---|---|
| Turn On Delay Time | 150 ns | |
| Input Offset Voltage (Vos) | 600V | |
| Rise Time | 150ns | |
| Fall Time (Typ) | 100 ns | |
| Rise / Fall Time (Typ) | 80ns 45ns | |
| Channel Type | Synchronous | |
| Gate Type | N-Channel MOSFET | |
| High Side Driver | YES | |
| Height | 4.9276mm | |
| Length | 10.8966mm | |
| Width | 7.11mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Contains Lead, Lead Free |
Integrated 600V half-bridge gate driver
15.6V Zener clamp on Vcc
True micropower startup
Tighter initial deadtime control
Low-temperature coefficient deadtime
Shutdown feature (1/6th Vcc) on CT pin
Increased Undervoltage lockout Hysteresis (1V)
Lower power level-shifting circuit
Constant LO, HO pulse widths at startup
Lower di/dt gate driver for better noise immunity
Low side output in phase with RT
Internal 50nsec (Typ.) bootstrap diode (IR2153D)
Excellent latch immunity on all inputs and outputs
ESD protection on all leads
Also available LEAD-FREE
IR44272, IR44273, IR44252, IR2100, IR2122
This IC has several unique characteristics that must be understood to operate with it. The maximum high-side floating supply voltage is 25V, the high-side floating supply offset voltage is 3V, the RT and CT pins are VCC + 0.3 Volts, and the IC's applied current is 25mA. This IC has a slew rate of 50V/nS. This IC's maximum power dissipation is 1W. The maximum junction temperature is 150 degrees Celsius.
The IR2155 and IR2151 gate driver ICs have been upgraded in the IR2153. The IR2153 has more features and is more user-friendly than prior ICs. By decreasing the peak di/dt of the gate drivers and raising the under-voltage lockout hysteresis to 1V, noise immunity has been greatly enhanced. Finally, the device's latch immunity has been maximized, and all pins have been provided with extensive ESD protection.
IR2153 Functional Block Diagram
Because this IC is a half-bridge gate driver, it can be utilized in a variety of applications such as DC-DC power supply, inverters, motor drivers, solenoid drivers, and high side MOSFET drivers for protection relay and motor driver applications.

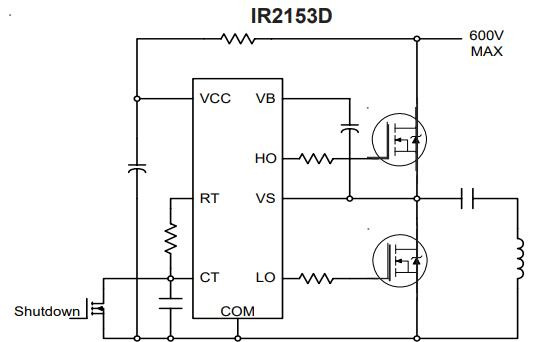

This IC is mostly used to drive the gate of MOSFETs, as the name implies. When a MOSFET must be switched with exceptional efficiency, a MOSFET gate driver is necessary. The graphic below depicts a basic schematic of the IR2153's configuration.
IR2153 Circuit
IR2153 Dimensions
