TO220 MOSFET RoHS
The IRF4905PBF( also known as SP001571330) is a -55V single P channel HEXFET power MOSFET in the TO-220AB package. This passage is going to introduce it from the perspectives of IRF4905PBF pinout, IRF4905PBF datasheet, IRF4905PBF description, and IRF4905PBF features。
IRF4905PBF
IRF4905PBF, manufactured by Infineon and distributed by Utmel Electronics. Its category belongs to Electronic Components ICs. It is applied to many fields, like Communications equipment Datacom module Industrial Medical Personal electronics PC & notebooks.
And the main parameters of this part are Benefits: RoHS Compliant; Low RDS(on); Industry-leading quality; Dynamic dv/dt Rating; Fast Switching; Fully Avalanche Rated; 175C Operating Temperature; P-Channel MOSFET.
Additionally, it is green and compliant to RoHS (Lead-free / RoHS Compliant). Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.
This MOSFET features extremely low on-resistance per silicon area, dynamic dv/dt rating, rugged, fast switching, and fully avalanche rating, as a result, power MOSFET is well known to provide extremely efficiency and reliability which can be used in a wide variety of applications.
① Drain to source voltage Vds is -55V
② Gate to source voltage is ±20V
③ On resistance Rds(on) of 20mohm at Vgs of -10V
④ Power dissipation Pd of 200W at 25°C
⑤ Continuous drain current Id of -74A at Vgs 10V and 25°C
⑥ Junction temperature range from -55°C to 175°C
Symbol

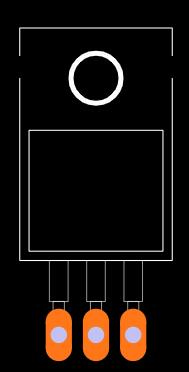

Footprint
3D Models
1. Communications equipment
Broadband fixed-line access/Datacom module/Wired networking/Wireless infrastructure
2.Industrial
Aerospace & defense/Appliances/Building automation/Electronic point of sale (EPOS)Factory automation & control/Grid infrastructure/Industrial transport (non-car & non-light truck)/Lighting/Medical/Motor drives/Power delivery/Pro audio, video & signage/Test & measurement
3.Personal electronics
Connected peripherals & printers/Data storage/Gaming/Home theater & entertainment/Mobile phones/PC & notebooks/Portable electronics/Tablets/TV/Wearables (non-medical)
Infineon Technologies AG is a German semiconductor manufacturer that was founded in 1999 after the former parent company Siemens AG spun off its semiconductor operations. Infineon employs approximately 46,665 people and is one of the top ten semiconductor manufacturers in the world. It dominates the automotive and power semiconductor markets. [3] The company's sales in the fiscal year 2020 were €8.6 billion. Infineon will acquire Cypress in April 2020.
Infineon sells semiconductors and systems for the automotive, industrial, and multimarket industries, as well as chip cards and security products. Infineon has subsidiaries in Milpitas, California, Singapore, and Tokyo, Japan in the Asia-Pacific region.
TO-220AB Package Outline
The TO-220 package is universally preferred for all commercial-industrial applications at power
dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO220 contribute to its wide acceptance throughout the industry.
