Transistors - FETs, MOSFETs - Single MOSFET N-CH 100V 17A TO220AB
The IRF530N is an N-Channel power MOSFET supplied in the TO220AB conventional leaded package. This article is going to explain the datasheet, pinout, applications, benefits, and more details about IRF530N MOSFET.
IRF530N,127
The IRF530N is an N-Channel power MOSFET supplied in the TO220AB conventional leaded package. The IR MOSFET series of power MOSFET s uses proven silicon technologies to provide designers with a diverse device portfolio to serve a variety of applications including DC motors, inverters, SMPS, lights, load switches, and battery-powered applications. For ease of design, the devices come in a choice of surface mount and through-hole packaging with industry-standard footprints.

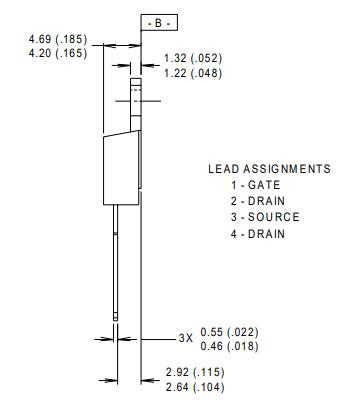

| Pin No. | Description |
| 1 | gate |
| 2 | drain |
| 3 | source |
| tab | drain |
IRF530N Symbol
IRF530N Footprint
IRF530N 3D Model
NXP USA Inc. IRF530N,127 technical specifications, attributes, parameters and parts with similar specifications to NXP USA Inc. IRF530N,127.
NXP USA Inc. IRF530N,127 technical specifications, attributes, parameters and parts with similar specifications to NXP USA Inc. IRF530N,127.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Surface Mount | NO | |
| Transistor Element Material | SILICON | |
| Current - Continuous Drain (Id) @ 25℃ | 17A Tc | |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 79W Tc | |
| Operating Temperature | -55°C~175°C TJ | |
| Packaging | Tube | |
| Series | TrenchMOS™ | |
| Published | 1999 | |
| JESD-609 Code | e3 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Position | SINGLE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Reach Compliance Code | unknown | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Pin Count | 3 | |
| JESD-30 Code | R-PSFM-T3 | |
| Qualification Status | Not Qualified | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| Operating Mode | ENHANCEMENT MODE | |
| Case Connection | DRAIN | |
| FET Type | N-Channel | |
| Transistor Application | SWITCHING |
| Product Attribute | Attribute Value | |
|---|---|---|
| Rds On (Max) @ Id, Vgs | 110m Ω @ 9A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 1mA | |
| Input Capacitance (Ciss) (Max) @ Vds | 633pF @ 25V | |
| Gate Charge (Qg) (Max) @ Vgs | 40nC @ 10V | |
| Drain to Source Voltage (Vdss) | 100V | |
| Vgs (Max) | ±20V | |
| JEDEC-95 Code | TO-220AB | |
| Drain Current-Max (Abs) (ID) | 17A | |
| Drain-source On Resistance-Max | 0.11Ohm | |
| Pulsed Drain Current-Max (IDM) | 68A | |
| DS Breakdown Voltage-Min | 100V | |
| Avalanche Energy Rating (Eas) | 150 mJ | |
| RoHS Status | ROHS3 Compliant |
Planar cell structure for wide SOA
Optimized for broadest availability from distribution partners
Product qualification according to JEDEC standard
Silicon optimized for applications switching below <100kHz
Industry-standard through-hole power package
High-current rating
Increased ruggedness
Wide availability from distribution partners
Industry-standard qualification
High performance in low-frequency applications
Standard pin-out allows for drop-in replacement
High current capability

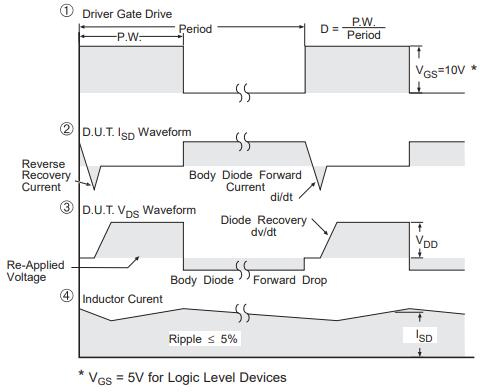

IRF530N Test Circuit
NXP Semiconductors enables secure connections and infrastructure for a smarter world, advancing solutions that make lives easier, better, and safer. As the world leader in secure connectivity solutions for embedded applications, NXP is driving innovation in the secure connected vehicle, end-to-end security & privacy, and smart connected solutions markets. Built on more than 60 years of combined experience and expertise, the company has 45,000 employees in more than 35 countries. Freescale Semiconductor has been acquired by NXP Semiconductor. Freescale Semiconductor parts are now a part of the NXP family (Dec 2015)
Download datasheets and manufacturer documentation for IRF530N,127
