IRF610 Power MOSFET: Equivalent, Pinout and Datasheet

IRF610 is an N Channel power transistor basically designed to be used in high speed applications like uninterrupted power supplies, switching supplies, motor controllers, converters etc.

The maximum load this transistor can drive is 3.3A and the load voltage can be upto 200V. The maximum pulsed drain current this transistor can drive is 8A and the max power dissipation is 43 watts.

There are also other transistor are available in this series which are IRF611, IRF612, IRF613. These transistors are slightly different from each other but can be used as an equivalent if IRF610 is not available.

This MOSFET also has low drive requirement due to which it can be directly derived from the output of electronic chips and also derived from the output of many electronic platforms. Other than that it can also be used as an audio amplifier and also in audio amplifier stages.

Footprint

3D Model

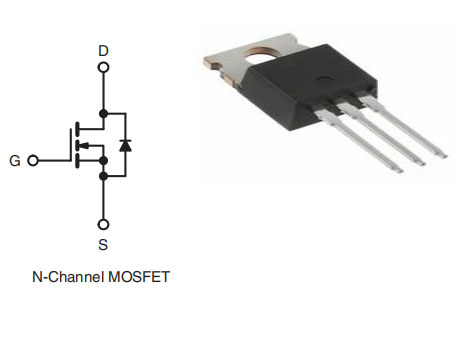

●Package Type: TO-220AB And TO-220

●Transistor Type: N Channel

●Max Voltage Applied From Drain to Source: 200V

●Max Gate to Source Voltage Should Be: ±20V

●Max Continues Drain Current is : 3A

●Max Pulsed Drain Current is: 8A

●Max Power Dissipation is: 43W

●Minimum Voltage Required to Conduct: 2V to 4V

●Max Storage & Operating temperature Should Be: -55 to +150 Centigrade

Vishay Siliconix IRF610PBF technical specifications, attributes, parameters and parts with similar specifications to Vishay Siliconix IRF610PBF.

IRF610 can be used in any application which requires high speed switching other than that it can also be used in power supplies, motor drivers, solenoid drivers etc. As mentioned above this transistor has low gate drive requirements due to which it can be derived directly from ICs, microcontrollers and many electronic platforms such as arduino, raspberry pi etc.

STP4N20, 2SK2381,IRF611, IRF612, IRF613, MTP2N18, MTP2N20, IRF610A , IRF622 IRF620, IRF620A, IRF620FI, IRF621(R), IRF622(R), IRF623(R), IRFI620G, IRFS610A, IRFS620A, IRL620, IRLI620G, MTP2N20, MTP7N20, PHP3N20E, PHP5N20E, RFP2N12, RFP2N12L, RFP2N15, RFP2N15L, RFP2N18, RFP2N18L, RFP2N20, RFP2N20L

■ Used in telecommunication applications

■ Used in high voltage applications

■ Used in relay driving applications

■ Used in UPS

■ Used in DC to DC converters
