Power MOSFET working, structure and characteristics in Power Electronics
Transistors - FETs, MOSFETs - Single MOSFET N CH 60V 95A TO-220AB
The IRFB7545PBF is a HEXFET® N-channel Power MOSFET. This post will cover its equivalent, datasheet, pinout and more details about IRFB7545. Welcome your RFQ!
IRFB7545PBF
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.28655 | $1.29 |
| 10+ | $1.21373 | $12.14 |
| 100+ | $1.14503 | $114.5 |
| 500+ | $1.08022 | $540.11 |
| 1000+ | $1.01907 | $1019.07 |

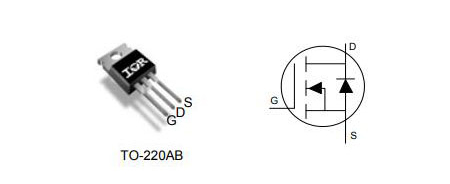

IRFB7545 Pinout
The IRFB7545PBF is a HEXFET® N-channel Power MOSFET that offers improved gate, avalanche and dynamic dV/dt ruggedness. It is suitable for battery-powered circuits, half-bridge and full-bridge topologies, synchronous rectifier applications, DC-to-AC inverters, DC-to-DC and AC-to-DC converters.
Improved gate, avalanche and dynamic dV/dt ruggedness
Fully characterized capacitance and avalanche SOA
Enhanced body diode dV/dt and dI/dt capability
Lead-free, RoHS compliant
Brushed motor drive applications
BLDC motor drive applications
Battery-powered circuits
Half-bridge and full-bridge topologies
Synchronous rectifier applications
Resonant mode power supplies
OR-ing and redundant power switches
DC/DC and AC/DC converters
DC/AC inverters
The equivalent for IRFB754:
IRF034
IRF1010E
IRF044
IRF054

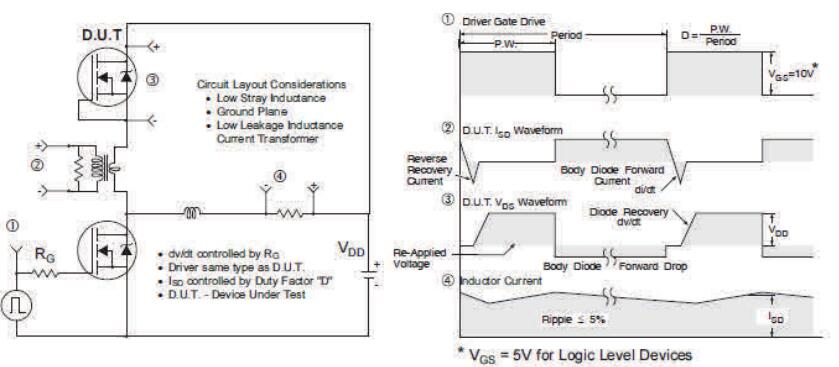

The test circuit of IRFB7545PBF is shown below:
IRFB7545PBF Test Circuit
Infineon Technologies IRFB7545PBF technical specifications, attributes, parameters and parts with similar specifications to Infineon Technologies IRFB7545PBF.
Infineon Technologies IRFB7545PBF technical specifications, attributes, parameters and parts with similar specifications to Infineon Technologies IRFB7545PBF.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 12 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Number of Pins | 3Pins | |
| Weight | 6.000006g | |
| Current - Continuous Drain (Id) @ 25℃ | 95A Tc | |
| Drive Voltage (Max Rds On, Min Rds On) | 6V 10V | |
| Power Dissipation (Max) | 125W Tc | |
| Turn Off Delay Time | 44 ns | |
| Operating Temperature | -55°C~175°C TJ | |
| Packaging | Tube | |
| Series | HEXFET®, StrongIRFET™ | |
| Published | 2008 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| ECCN Code | EAR99 | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Number of Channels | 1Channel | |
| Element Configuration | Single | |
| Power Dissipation | 125W | |
| Turn On Delay Time | 12 ns | |
| FET Type | N-Channel | |
| Rds On (Max) @ Id, Vgs | 5.9m Ω @ 57A, 10V | |
| Vgs(th) (Max) @ Id | 3.7V @ 100μA | |
| Input Capacitance (Ciss) (Max) @ Vds | 4010pF @ 25V | |
| Gate Charge (Qg) (Max) @ Vgs | 110nC @ 10V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Rise Time | 72ns | |
| Drain to Source Voltage (Vdss) | 60V | |
| Vgs (Max) | ±20V | |
| Fall Time (Typ) | 43 ns | |
| Continuous Drain Current (ID) | 95A | |
| Threshold Voltage | 3.7V | |
| Gate to Source Voltage (Vgs) | 20V | |
| Height | 16.51mm | |
| Length | 10.67mm | |
| Width | 4.83mm | |
| REACH SVHC | No SVHC | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
On April 1st, 1999, Siemens Semiconductors became Infineon Technologies. A dynamic more flexible company geared towards success in the competitive, ever-changing world of microelectronics. Infineon is a leading global designer, manufacturer and supplier of a broad range of semiconductors used in various microelectronic applications. Infineon's product portfolio consists of logic products, including digital, mixed-signal, and analogue integrated circuits, as well as discrete semiconductor products.
Download datasheets and manufacturer documentation for IRFB7545PBF
