Transistors - FETs, MOSFETs - Single MOSFET N-CH 200V 30A TO-247AC
IRFP250N is an N-channel power MOSFET. This article is going to explain datasheet pdf, pinout, equivalents, and other details about IRFP250N n-channel MOSFET.
IRFP250NPBF
IRFP250N is an N-Channel Power MOSFET. The IRFP250N MOSFET is used to power loads operating on a voltage of less than 60V and a current of 200mA. This N -Channel enhancement mode silicon gate power field effect transistor is an advanced power MOSFET designed, tested, and guaranteed to withstand a specified level of energy in the breakdown avalanche mode of operation.
| Pin Number | Pin Name | Description |
| 1 | Source | Current flows out through Source |
| 2 | Gate | Controls the biasing of the MOSFET |
| 3 | Drain | Current flows in through Drain |

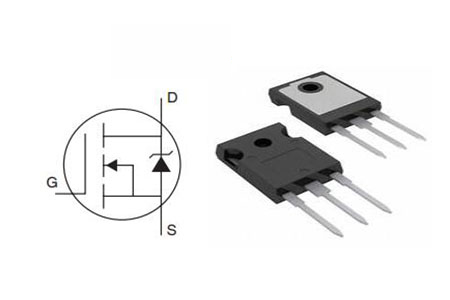

IRFP250N Symbol

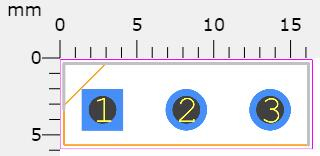

IRFP250N Footprint
IRFP250N 3D Model
Infineon Technologies IRFP250NPBF technical specifications, attributes, parameters and parts with similar specifications to Infineon Technologies IRFP250NPBF.
Infineon Technologies IRFP250NPBF technical specifications, attributes, parameters and parts with similar specifications to Infineon Technologies IRFP250NPBF.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 12 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-247-3 | |
| Number of Pins | 3Pins | |
| Transistor Element Material | SILICON | |
| Current - Continuous Drain (Id) @ 25℃ | 30A Tc | |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 214W Tc | |
| Turn Off Delay Time | 41 ns | |
| Operating Temperature | -55°C~175°C TJ | |
| Packaging | Tube | |
| Series | HEXFET® | |
| Published | 2004 | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| Termination | Through Hole | |
| ECCN Code | EAR99 | |
| Resistance | 75mOhm | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Additional Feature | AVALANCHE RATED, HIGH RELIABILITY, ULTRA-LOW RESISTANCE | |
| Voltage - Rated DC | 200V | |
| Peak Reflow Temperature (Cel) | 250 | |
| Current Rating | 30A | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Element Configuration | Single | |
| Operating Mode | ENHANCEMENT MODE | |
| Power Dissipation | 214W | |
| Case Connection | DRAIN | |
| Turn On Delay Time | 14 ns | |
| FET Type | N-Channel | |
| Transistor Application | SWITCHING | |
| Rds On (Max) @ Id, Vgs | 75m Ω @ 18A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250μA | |
| Input Capacitance (Ciss) (Max) @ Vds | 2159pF @ 25V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Gate Charge (Qg) (Max) @ Vgs | 123nC @ 10V | |
| Rise Time | 43ns | |
| Vgs (Max) | ±20V | |
| Fall Time (Typ) | 33 ns | |
| Continuous Drain Current (ID) | 30A | |
| JEDEC-95 Code | TO-247AC | |
| Gate to Source Voltage (Vgs) | 20V | |
| Drain to Source Breakdown Voltage | 200V | |
| Dual Supply Voltage | 200V | |
| Recovery Time | 279 ns | |
| Nominal Vgs | 4 V | |
| Height | 20.2946mm | |
| Length | 15.875mm | |
| Width | 5.3mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Contains Lead, Lead Free |
Dynamic DV/DT Rating
Repetitive Avalanche Rated
Isolated Central Mounting hole
Fast Switching
Ease of Paralleling
Simple Drive Requirements
Compliant to RoHS Directive 2002/95/EC
IRFP250M, IRFP260M, IRFP260N, IRFP4227, IRFP4229, IRFP4232, IRFP4242, IRFP4332, IRFP4668, IRFP4768, IRFP90N20D
LED flashers or dimmers
Low power analog inverters or converters
Small signal switching
Switching high voltage loads
On April 1st, 1999, Siemens Semiconductors became Infineon Technologies. A dynamic more flexible company geared towards success in the competitive, ever-changing world of microelectronics. Infineon is a leading global designer, manufacturer, and supplier of a broad range of semiconductors used in various microelectronic applications. Infineon's product portfolio consists of logic products, including digital, mixed-signal, and analog integrated circuits, as well as discrete semiconductor products.
Download datasheets and manufacturer documentation for IRFP250NPBF
