Transistors - FETs, MOSFETs - Single MOSFET N-CH 200V 46A TO247 IRFP260 is a 46A 200V N-Channel Power MOSFET providing the designer with an extremely efficient and reliable device for use in a wide variety of applications.
59
Nov 18, 2021
Vivien Leighton
Experiment using IRFP260 N-Channel MOSFET by FET Society
Transistors - FETs, MOSFETs - Single MOSFET N-CH 200V 46A TO247
IRFP260 is a 46A 200V N-Channel Power MOSFET providing the designer with an extremely efficient and reliable device for use in a wide variety of applications. This article is going to cover details about IRFP260 MOSFET for your reference.
IRFP260
IRFP260 is a 46A 200V N-Channel Power MOSFET providing the designer with an extremely efficient and reliable device for use in a wide variety of applications. It is from the inside and is covered with TO-247.N Channel Power Mosfet.

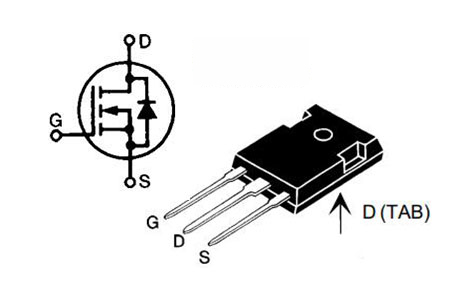

| Pin No | Pin Name |
| 1 | Gate |
| 2 | Drain |
| 3 | Source |

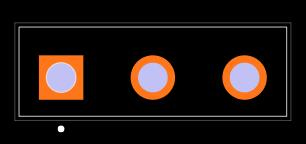

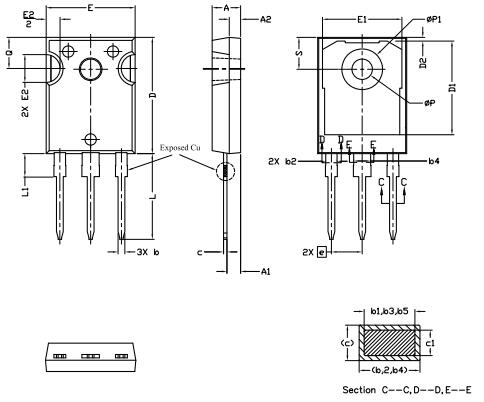

IRFP260 Footprint

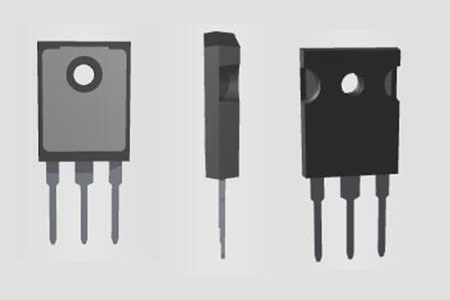

IRFP260 3D Model

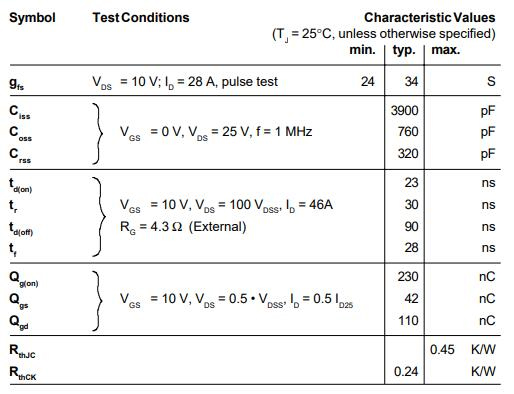

IXYS IRFP260 technical specifications, attributes, parameters and parts with similar specifications to IXYS IRFP260.
IXYS IRFP260 technical specifications, attributes, parameters and parts with similar specifications to IXYS IRFP260.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-247-3 | |
| Number of Pins | 3Pins | |
| Transistor Element Material | SILICON | |
| Current - Continuous Drain (Id) @ 25℃ | 46A Tc | |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 280W Tc | |
| Turn Off Delay Time | 90 ns | |
| Operating Temperature | -55°C~150°C TJ | |
| Packaging | Tube | |
| Published | 2000 | |
| Pbfree Code | yes | |
| Part Status | Obsolete |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Pin Count | 3 | |
| Qualification Status | Not Qualified | |
| Element Configuration | Single | |
| Operating Mode | ENHANCEMENT MODE | |
| Power Dissipation | 280W | |
| Case Connection | DRAIN | |
| FET Type | N-Channel | |
| Transistor Application | SWITCHING | |
| Rds On (Max) @ Id, Vgs | 55m Ω @ 28A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250μA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Input Capacitance (Ciss) (Max) @ Vds | 3900pF @ 25V | |
| Gate Charge (Qg) (Max) @ Vgs | 230nC @ 10V | |
| Rise Time | 30ns | |
| Vgs (Max) | ±20V | |
| Fall Time (Typ) | 28 ns | |
| Continuous Drain Current (ID) | 46A | |
| JEDEC-95 Code | TO-247AD | |
| Gate to Source Voltage (Vgs) | 20V | |
| Drain-source On Resistance-Max | 0.055Ohm | |
| Drain to Source Breakdown Voltage | 200V | |
| Pulsed Drain Current-Max (IDM) | 184A | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Lead Free |
Dynamic DV/DT Rating
Repetitive Avalanche Rated
Isolated Central Mounting Hole
Fast Switching
Ease of Paralleling
Simple Drive Requirements
Compliant to RoHS Directive 2002/95/EC
Easy to mount with 1 screw (isolated mounting screw hole)
Space savings
High power density
IRF044, IRFP260N, IRF044SMD, IRF054, IRF054SMD, IRF100B201
Switch-mode and resonant-mode power supplies
Motor controls
Uninterruptible Power Supplies (UPS)
DC choppers
With the acquisition of IXYS, Littelfuse significantly expands the breadth of its power semiconductor portfolio, with solutions spanning a full range of technologies. This diverse portfolio will provide customers with the best technology and enhanced, differentiated capabilities in target markets and geographies as well as deliver greater industry access and increased growth opportunities. Below are the 3 business units that will gradually merge into IXYS a Littelfuse Technology as Littelfuse Inc. integrates them into their portfolio of world-class products.
Download datasheets and manufacturer documentation for IRFP260
