IRFP9240 is a kind of power MOSFET. This article mainly covers datasheet, pinout, equivalents, and other details about IRFP9240.
IRFP9240 Power MOSFET : Datasheet, Pinout and Equivalent
MOSFET P-CH 200V 12A TO-247AC IRFP9240 is a kind of power MOSFET. This article mainly covers datasheet, pinout, equivalents, and other details about IRFP9240.
332
Aug 23, 2021
Harold Alerander
IRFP9240
Inquiry
Min.: 1 Mult.: 1
Quick Links
IRFP9240 Pinout
IRFP9240 CAD Model
Symbol

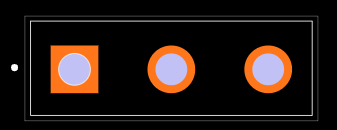

Footprint

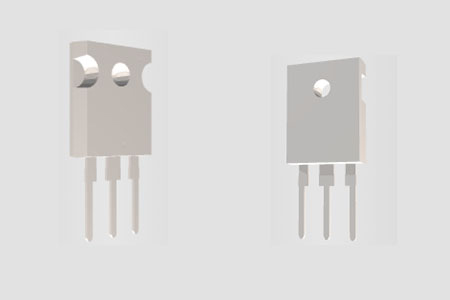

3D Model
IRFP9240 Description
IRFP9240 provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance, and cost-effectiveness. The TO-247AC package is preferred for commercial-industrial applications where higher power levels preclude the use of TO-220AB devices. The TO-247AC is similar but superior to the earlier TO-218 package because of its isolated mounting hole. It also provides a greater creepage distance between pins to meet the requirements of most safety specifications.
Specifications
Vishay Siliconix IRFP9240 technical specifications, attributes, parameters and parts with similar specifications to Vishay Siliconix IRFP9240.
IRFP9240 Tech Specifications
IRFP9240 Tech Specifications
Vishay Siliconix IRFP9240 technical specifications, attributes, parameters and parts with similar specifications to Vishay Siliconix IRFP9240.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-247-3 | |
| Number of Pins | 3Pins | |
| Supplier Device Package | TO-247-3 | |
| Weight | 38.000013g | |
| Current - Continuous Drain (Id) @ 25℃ | 12A Tc | |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 150W Tc | |
| Turn Off Delay Time | 39 ns | |
| Operating Temperature | -55°C~150°C TJ | |
| Packaging | Tube | |
| Published | 2015 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -55°C | |
| Number of Channels | 1Channel | |
| Element Configuration | Single | |
| Power Dissipation | 150W | |
| Turn On Delay Time | 14 ns | |
| FET Type | P-Channel | |
| Rds On (Max) @ Id, Vgs | 500mOhm @ 7.2A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250μA | |
| Input Capacitance (Ciss) (Max) @ Vds | 1200pF @ 25V | |
| Gate Charge (Qg) (Max) @ Vgs | 44nC @ 10V | |
| Rise Time | 43ns |
| Product Attribute | Attribute Value | |
|---|---|---|
| Drain to Source Voltage (Vdss) | 200V | |
| Vgs (Max) | ±20V | |
| Fall Time (Typ) | 38 ns | |
| Continuous Drain Current (ID) | 12A | |
| Gate to Source Voltage (Vgs) | 20V | |
| Drain to Source Breakdown Voltage | -200V | |
| Input Capacitance | 1.2nF | |
| Drain to Source Resistance | 500mOhm | |
| Rds On Max | 500 mΩ | |
| Height | 20.7mm | |
| Length | 15.87mm | |
| Width | 5.31mm | |
| RoHS Status | Non-RoHS Compliant |
IRFP9240 Features
• Dynamic dV/DT Rating
• Repetitive Avalanche Rated
• P-Channel
• Isolated Central Mounting Hole
• Fast Switching
• Ease of Paralleling
• Simple Drive Requirements
• Compliant to RoHS Directive 2002/95/EC
IRFP9240 Applications
IRFP9240 is used to switch or amplify voltages in circuits. Being part of the field-effect transistor family, it is a current-controlled device that is constructed.
IRFP9240 Circuit
IRFP9240 Equivalents
IRFP9240 Package
IRFP9240 Manufacturer
Vishay, through its Siliconix subsidiary, leads the industry in the development of power semiconductor products that improve the efficiency of power management circuitry in end products while reducing space requirements. As the world's number-one brand of low-voltage power MOSFETs (metal-oxide-semiconductor field-effect transistors), Vishay Siliconix products play a key role in making handheld and portable electronic systems operate more efficiently from smaller and lighter battery packs.
Datasheet PDF
Download datasheets and manufacturer documentation for Vishay Siliconix IRFP9240.
IRFP9240 Documents
IRFP9240 Documents
Download datasheets and manufacturer documentation for IRFP9240
Datasheets
IRFP9240
RohsStatement
Vishay-company-15.pdf
PCN Obsolescence/ EOL
SIL-018-2015-Rev-0 20/May/2015
Frequently Asked Questions
What is IRFP9240 MOSFET used for?
MOSFET, in short, is a metal oxide semiconductor field-effect transistor used to switch or amplify voltages in circuits. Being part of the field-effect transistor family, it is a current-controlled device that is constructed.
How does IRFP9240 Power MOSFET work?
IRFP9240 Power MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) are three-terminal silicon devices that function by applying a signal to the gate that controls current conduction between source and drain.
FAQ
What is IRFP9240 MOSFET used for?
MOSFET, in short, is a metal oxide semiconductor field-effect transistor used to switch or amplify voltages in circuits. Being part of the field-effect transistor family, it is a current-controlled device that is constructed.
How does IRFP9240 Power MOSFET work?
IRFP9240 Power MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) are three-terminal silicon devices that function by applying a signal to the gate that controls current conduction between source and drain.
