IRFZ24N Transistor: Datasheet, Pinout, IRFZ24N MOSFET

IRFZ24N  Pinout

IRFZ24N Symbol

IRFZ24N Footprint

IRFZ24N 3D Model

The IRFZ24N is an N channel MOSFET with a TO-220 package. The transistor can be used in a wide range of general-purpose applications. The MOSFET has a high speed, low resistance, and provides protection against unexpected voltage spikes of up to 2kV transient voltages. The transistor can drive a maximum load of 17A at up to 55V load voltage and can also drive a load of 68A in a single pulse. All of the above characteristics make this MOSFET appropriate for applications like high-speed switching, power supplies, and so on.

• Package Type: TO-220

• Transistor Type: N Channel

• Max Voltage Applied From Drain to Source: 55V

• Max Gate to Source Voltage Should Be: ±20V

• Max Continues Drain Current: 17A

• Max Pulsed Drain Current is: 68A

• Max Power Dissipation is: 45W

• Drain to Source Resistance in ON State (RDS on): 0.07Ω

• Max Storage & Operating temperature Should Be: -55 to +150 ℃

• Use in Uninterruptible Power Supplies

• Use in Voltage Converters

• Use in Power Supplies

• Use in Telecommunication Circuits

• Use in Battery Charger Circuits

• Use in Solar Chargers and Power Supplies

The Equivalent for IRFZ24N

• IRFZ24

• IRFZ34

• IRFZ34A

• IRFZ34E

• IRFZ34N

• IRLIZ24G

• IRLIZ24N

• IRLR024

• IRLZ24

Because the IRFZ24N MOSFET is designed for high-speed switching, it can be utilized in any switching application where speed is critical, such as a UPS circuit. It can also be utilized in a wide range of switching power supply, motor controller circuits, converter circuits, and other applications. It can also be employed in situations where unexpected voltage transients are a possibility.

Aside from that, it can be utilized in any general-purpose application that meets its requirements. It can also be utilized to construct high-powered audio amplifiers.

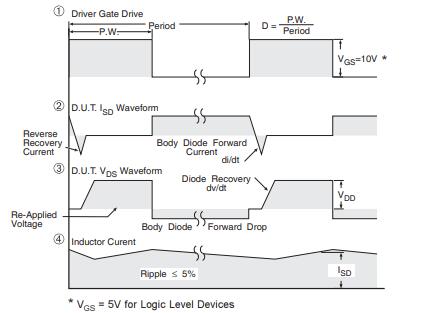

IRFZ24N Test Circuit

For N-Channel HEXFETÆ power MOSFETs

IRFZ24N Package
