Transistors - FETs, MOSFETs - Single MOSFET N-CH 100V 9.2A TO-220AB The IRL520 is the third generation Power MOSFETs from Vishay.
87
Nov 18, 2021
Asa Arnold
MOSFETs and How to Use Them
Transistors - FETs, MOSFETs - Single MOSFET N-CH 100V 9.2A TO-220AB
The IRL520 is the third generation Power MOSFETs from Vishay. This article will unlock more details about IRL520. There is a huge range of Semiconductors, Capacitors, Resistors and ICs in stock. Welcome RFQ!
IRL520

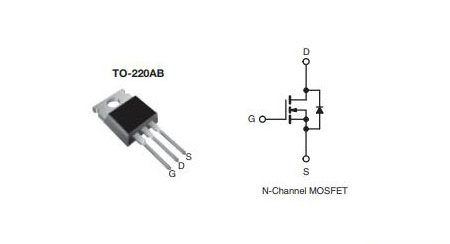

IRL520 Symbol

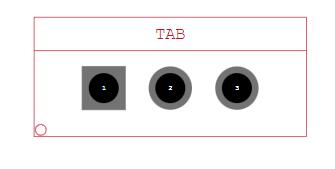

IRL520 Footprint
IRL520 3D Model
Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.
The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50W. The low thermal resistance and low package cost of the TO-220AB contribute to its wide acceptance throughout the industry.
Advanced processing techniques are used to create extraordinarily low on-resistance per silicon area in the IRL520 10A 100V N-Channel Power MOSFET. This benefit, when paired with the quick switching speed and ruggedized device architecture that HEXFET Power MOSFETs are known for, offers the designer a highly efficient and dependable device that can be used in a wide range of applications.
• Dynamic dV/dt Rating
• Repetitive Avalanche Rated
• Logic-Level Gate Drive
• RDS(on) Specified at VGS = 4 V and 5 V
• 175 °C Operating Temperature
• Fast Switching
• Ease of Paralleling
• Compliant to RoHS Directive 2002/95/EC
Commercial-Industrial Applications at Power Dissipation
The equivalent for IRL520:
IRL530
IRL540
IRL640

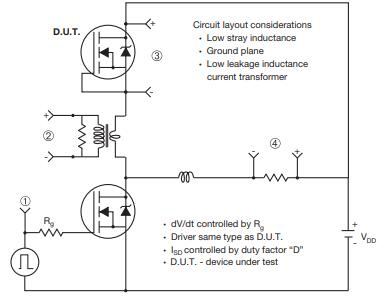

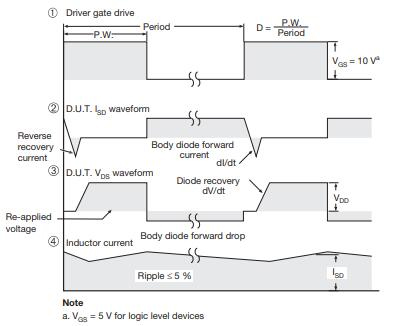

IRL520-Peak Diode Recovery DV /DTTest Circuit
IRL520-14 - For N-Channel
Vishay Siliconix IRL520 technical specifications, attributes, parameters and parts with similar specifications to Vishay Siliconix IRL520.
Vishay Siliconix IRL520 technical specifications, attributes, parameters and parts with similar specifications to Vishay Siliconix IRL520.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Number of Pins | 3Pins | |
| Supplier Device Package | TO-220AB | |
| Weight | 6.000006g | |
| Current - Continuous Drain (Id) @ 25℃ | 9.2A Tc | |
| Drive Voltage (Max Rds On, Min Rds On) | 4V 5V | |
| Power Dissipation (Max) | 60W Tc | |
| Turn Off Delay Time | 21 ns | |
| Operating Temperature | -55°C~175°C TJ | |
| Packaging | Tube | |
| Published | 2016 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Operating Temperature | 175°C | |
| Min Operating Temperature | -55°C | |
| Voltage - Rated DC | 100V | |
| Current Rating | 9.2A | |
| Number of Channels | 1Channel | |
| Element Configuration | Single | |
| Turn On Delay Time | 9.8 ns | |
| FET Type | N-Channel | |
| Rds On (Max) @ Id, Vgs | 270mOhm @ 5.5A, 5V | |
| Vgs(th) (Max) @ Id | 2V @ 250μA | |
| Input Capacitance (Ciss) (Max) @ Vds | 490pF @ 25V | |
| Gate Charge (Qg) (Max) @ Vgs | 12nC @ 5V | |
| Rise Time | 64ns | |
| Drain to Source Voltage (Vdss) | 100V | |
| Vgs (Max) | ±10V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Fall Time (Typ) | 27 ns | |
| Continuous Drain Current (ID) | 9.2A | |
| Gate to Source Voltage (Vgs) | 10V | |
| Drain to Source Breakdown Voltage | 100V | |
| Input Capacitance | 490pF | |
| Drain to Source Resistance | 270mOhm | |
| Rds On Max | 270 mΩ | |
| Height | 8.76mm | |
| Length | 10.54mm | |
| Width | 4.7mm | |
| Radiation Hardening | No | |
| RoHS Status | Non-RoHS Compliant | |
| Lead Free | Contains Lead |

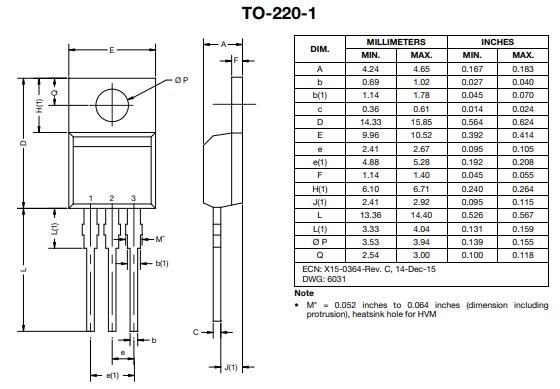

IRL520 Package
Vishay's product portfolio is an unmatched collection of discrete semiconductors (diodes, MOSFETs, and optoelectronics) and passive components (resistors, inductors, and capacitors). These components are used in virtually all types of electronic devices and equipment in the industrial, computing, automotive, consumer, telecommunications, military, aerospace, and medical markets. Vishay is proud to be a major partner with Digi-Key.
Download datasheets and manufacturer documentation for Vishay Siliconix IRL520.
Download datasheets and manufacturer documentation for IRL520
