IRL540 MOSFET belongs to the Third Generation Power MOSFETs. This article will cover its datasheet, pinout, equivalent and more details about IRL540. Welcome your RFQ!
IRL540
IRL540 Pinout
IRL540 Symbol
IRL540 Footprint
IRL540 3D Model
IRL540 MOSFET comes from the Third Generation Power MOSFETs provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.
IRL540 36A 100V N-Channel Power MOSFET is an advanced processing technology to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.
• Dynamic DV/DT Rating
• Repetitive Avalanche Rated
• Logic-Level Gate Drive
• RDS(on) Specified at VGS = 4 V and 5 V
• 175 °C Operating Temperature
• Fast Switching
• Ease of Paralleling
• Compliant to RoHS Directive 2002/95/EC
General Purpose Switching Applications
The equivalent for IRL540 :
RL1004
IRL1004L
IRL1104
Vishay Siliconix IRL540 technical specifications, attributes, parameters and parts with similar specifications to Vishay Siliconix IRL540.
Vishay Siliconix IRL540 technical specifications, attributes, parameters and parts with similar specifications to Vishay Siliconix IRL540.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Supplier Device Package | TO-220AB | |
| Weight | 6.000006g | |
| Current - Continuous Drain (Id) @ 25℃ | 28A Tc | |
| Drive Voltage (Max Rds On, Min Rds On) | 4V 5V | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 150W Tc | |
| Turn Off Delay Time | 35 ns | |
| Operating Temperature | -55°C~175°C TJ | |
| Packaging | Tube | |
| Published | 2011 | |
| Part Status | Obsolete |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Max Operating Temperature | 175°C | |
| Min Operating Temperature | -55°C | |
| Number of Channels | 1Channel | |
| Element Configuration | Single | |
| Power Dissipation | 150W | |
| Turn On Delay Time | 8.5 ns | |
| FET Type | N-Channel | |
| Rds On (Max) @ Id, Vgs | 77mOhm @ 17A, 5V | |
| Vgs(th) (Max) @ Id | 2V @ 250μA | |
| Input Capacitance (Ciss) (Max) @ Vds | 2200pF @ 25V | |
| Gate Charge (Qg) (Max) @ Vgs | 64nC @ 5V | |
| Rise Time | 170ns | |
| Drain to Source Voltage (Vdss) | 100V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Vgs (Max) | ±10V | |
| Fall Time (Typ) | 80 ns | |
| Continuous Drain Current (ID) | 28A | |
| Gate to Source Voltage (Vgs) | 10V | |
| Drain to Source Breakdown Voltage | 100V | |
| Input Capacitance | 2.2nF | |
| Drain to Source Resistance | 77mOhm | |
| Rds On Max | 77 mΩ | |
| Height | 8.76mm | |
| Length | 10.54mm | |
| Width | 4.7mm | |
| Radiation Hardening | No | |
| RoHS Status | Non-RoHS Compliant |

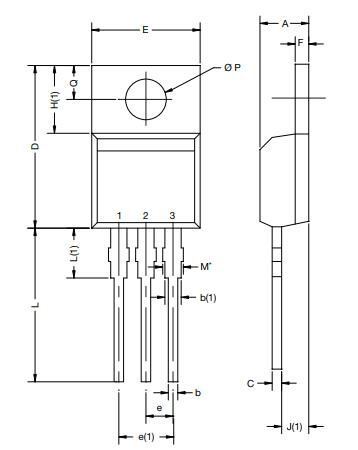

IRL540 Package
|
DIM. |
Millimetres |
Inches |
||
|
MIN. |
Max. |
MIN. |
Max. |
|
|
A |
4.24 |
4.65 |
0.167 |
0.183 |
|
b |
0.69 |
1.02 |
0.027 |
0.040 |
|
b(1) |
1.14 |
1.78 |
0.045 |
0.070 |
|
c |
0.36 |
0.61 |
0.014 |
0.024 |
|
D |
14.33 |
15.85 |
0.564 |
0.624 |
|
E |
9.96 |
10.52 |
0.392 |
0.414 |
|
e |
2.41 |
2.67 |
0.095 |
0.105 |
|
e(1) |
4.88 |
5.28 |
0.192 |
0.208 |
|
F |
1.14 |
1.40 |
0.045 |
0.055 |
|
H(1) |
6.10 |
6.71 |
0.240 |
0.264 |
|
J(1) |
2.41 |
2.92 |
0.095 |
0.115 |
|
L |
13.36 |
14.40 |
0.526 |
0.567 |
|
L(1) |
3.33 |
4.04 |
0.131 |
0.159 |
|
Ø P |
3.53 |
3.94 |
0.139 |
0.155 |
|
Q |
2.54 |
3.00 |
0.100 |
0.118 |
|
ECN: X15-0364-Rev. C, 14-Dec-15 DWG: 6031 |
||||
Vishay's product portfolio is an unmatched collection of discrete semiconductors (diodes, MOSFETs, and optoelectronics) and passive components (resistors, inductors, and capacitors). These components are used in virtually all types of electronic devices and equipment in the industrial, computing, automotive, consumer, telecommunications, military, aerospace, and medical markets. Vishay is proud to be a major partner with Digi-Key.
Download datasheets and manufacturer documentation for Vishay Siliconix IRL540.
Download datasheets and manufacturer documentation for IRL540
