IRLML6402 Transistor: Features, Pinout, and Datasheet

The IRLML6402 is a -20V single P channel HEXFET power MOSFET in Micro3 (SOT-23) package. This MOSFET features extremely low on-resistance per silicon area, ruggedness, fast switching as a result, power MOSFET are well known to provide extremely efficiency and reliability which can be used in a wide variety of applications such as battery and load management, portable electronics and PCMCIA cards and printed circuit board where space is at a premium.

These P-Channel MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET® power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in battery and load management.

A thermally enhanced large pad lead frame has been incorporated into the standard SOT-23 package to produce a HEXFET Power MOSFET with the industry's smallest footprint. This package, dubbed the Micro3™, is ideal for applications where printed circuit board space is at a premium. The low profile (<1.1mm) of the Micro3 allows it to fit easily into extremely thin application environments such as portable electronics and PCMCIA cards. The thermal resistance and power dissipation are the best available.

Symbol

Footprint

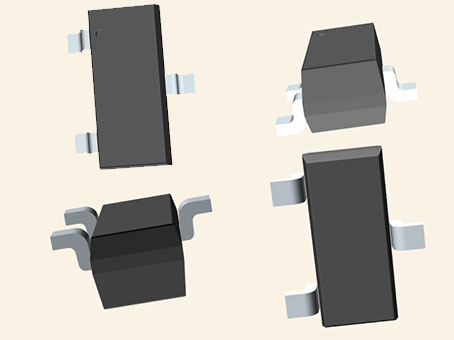

3D Model

● Ultra-Low On-Resistance

● P-Channel MOSFET

● SOT-23 Footprint

● Low Profile (<1.1mm)

● Available In Tape And Reel

● Fast Switching

● Lead-Free

● Halogen-Free

● Drain To Source Voltage (Vds) Of -20V

● Gate To Source Voltage Of ±12V

● On-Resistance Rds(on) Of 80Mohm At Vgs -2.5V

● Power Dissipation Pd Of 1.3W At 25°C

● Continuous Drain Current Id Of -3.7A At Vgs -4.5V And 25°C

● Operating Junction Temperature Range From -55°C To 150°C

● 0.01W/°C Linear Derating Factor

Infineon Technologies IRLML6402TR technical specifications, attributes, parameters and parts with similar specifications to Infineon Technologies IRLML6402TR.

Block Diagram

● 3C Digital

● Medical Electronics

● IoT

● New Energy

● Battery

● Load Management

● Portable Electronics

● PCMCIA Cards

● Printed Circuit Board Where Space Is At A Premium

● DC Switches

● Load Switch

On April 1, 1999, Siemens Semiconductors officially changed its name to Infineon Technologies. Infineon is a dynamic and flexible company. Success in the highly competitive and ever-changing microelectronics world is our constant goal. As the world's leading designer, manufacturer and supplier, Infineon has a wide range of products used in various microelectronics applications. Our product portfolio includes not only logic products, including digital, mixed-signal and analog integrated circuits, but also discrete semiconductor products.
