ISOCOM IS181D Transistor Output Optocoupler, 1 Channel, 3.75 kV, 300 %, 50 mA, SOP, 4 Pins

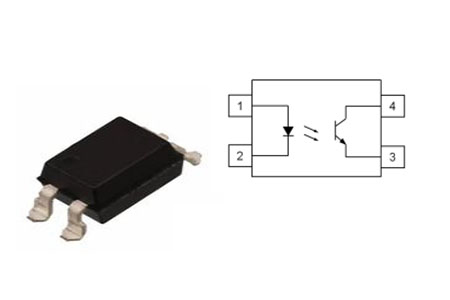

IS181 is high density mounting phototransistor optically coupled isolators. This article mainly covers pinout, datasheet, package, applications and other details about IS181.
IS181D
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.20835 | $0.21 |
| 10+ | $0.19655 | $1.97 |
| 100+ | $0.18543 | $18.54 |
| 500+ | $0.17493 | $87.47 |
| 1000+ | $0.16503 | $165.03 |
The IS181 series of optocoupler consists of an infrared light emitting diode optically coupled to an NPN silicon photo transistor in a space efficient Mini Flat Package.

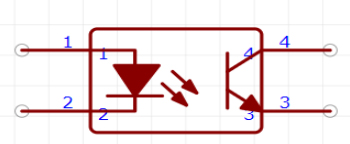

Symbol

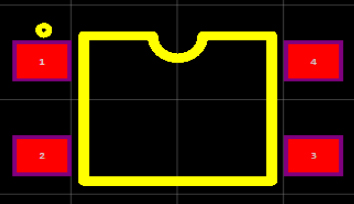

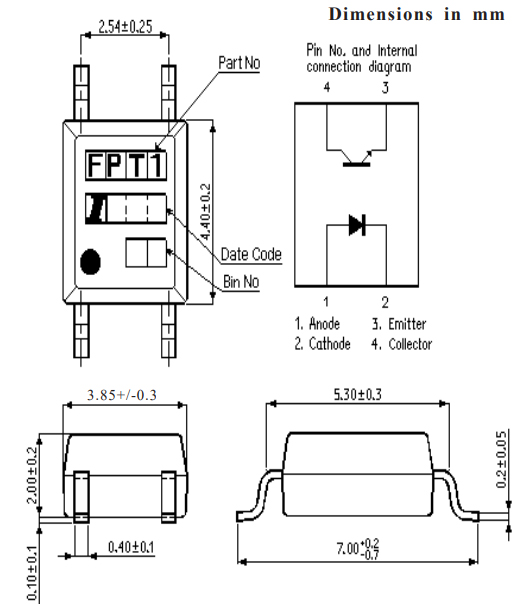

Footprint
Isocom Components 2004 LTD IS181D technical specifications, attributes, parameters and parts with similar specifications to Isocom Components 2004 LTD IS181D.
Isocom Components 2004 LTD IS181D technical specifications, attributes, parameters and parts with similar specifications to Isocom Components 2004 LTD IS181D.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 2 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-SMD, Gull Wing | |
| Number of Pins | 4Pins | |
| Current Transfer Ratio-Min | 300% @ 5mA | |
| Operating Temperature | -55°C~100°C | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Reach Compliance Code | unknown | |
| Voltage - Isolation | 3750Vrms | |
| Output Voltage | 80V | |
| Output Type | Transistor | |
| Number of Channels | 1Channel | |
| Voltage - Forward (Vf) (Typ) | 1.2V | |
| Input Type | DC |
| Product Attribute | Attribute Value | |
|---|---|---|
| Forward Current | 50mA | |
| Rise / Fall Time (Typ) | 4μs 3μs | |
| Input Current | 20mA | |
| Current Transfer Ratio (Max) | 600% @ 5mA | |
| Vce Saturation (Max) | 200mV | |
| REACH SVHC | No SVHC | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Low Profile Package
Ac Isolation Voltage 3750vrms
Ctr Selections Available
Wide Operating Temperature Range -55°C To +110°C
Lead Free And Rohs Compliant
Ul File E91231 Model “Fpt1” And “Fpt2”
Computer Terminals
Industrial System Controllers
Measuring Instruments
Signal Transmission Between Systems Of Different Potentials And Impedance

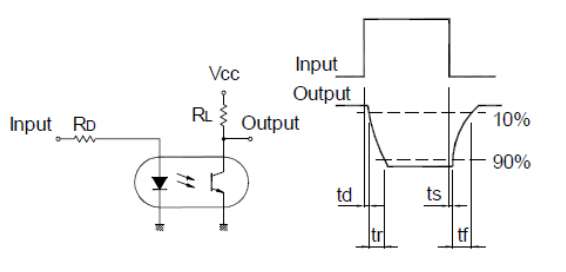

IS181 optocouplers can either be used on their own as a switching device, or used with other electronic devices to provide isolation between low and high voltage circuits. You'll typically find these devices being used for: Microprocessor input/output switching. DC and AC power control.
Isocom Components is a leading manufacturer of high performance infrared optoelectronic devices specialising in optocouplers and optoswitches. Since the business was established over 25 years ago Isocom has consistently delivered in excess of their customer's expectations to become one of the most respected brands in the worldwide optoelectronic industry.Expert knowledge and flexible manufacturing processes result in the shortest production lead times in the world for many parts. Product quality and superior customer service is unrivalled and is endorsed by many long-standing customers. Isocom Components is your natural alternative to all popular commercial optocoupler industry standard types including many no longer supplied by other manufacturers. In addition, they carry out special parametric selections to meet customer's specific circuit design requirements. Parts are available approved to the leading recognized industry standards and all devices are available in various lead forms and in tape and reel packaging if required.
Download datasheets and manufacturer documentation for Isocom Components 2004 LTD IS181D.
