ISL80103 Series 6 V 3 A SMT High Performance Linear Regulator - DFN-10
The ISL80103IRAJZ is a single-output low-voltage, high-current LDO with 2A and 3A output currents, respectively. This article mainly introduces diagram, pinout, datasheet and other detailed information about Intersil (Renesas Electronics America) ISL80103IRAJZ.
ISL80103IRAJZ
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $3.11345 | $3.11 |
| 10+ | $2.93722 | $29.37 |
| 100+ | $2.77096 | $277.1 |
| 500+ | $2.61412 | $1307.06 |
| 1000+ | $2.46615 | $2466.15 |
The ISL80103IRAJZ is a single-output low-voltage, high-current LDO with 2A and 3A output currents, respectively. These LDOs have an input voltage range of 2.2V to 6V and can provide output voltages ranging from 0.8V to 5V on the adjustable VOUT variants. Fixed output voltages of 1.8V, 2.5V, 3.3V, and 5V are available. On request, more unique voltage options are available.
An external capacitor on the soft-start pin provides adjustability for applications that require in-rush current less than the current limit. The ENABLE function enables the part to enter a low quiescent current shutdown mode. This product series uses a sub-micron BiCMOS technology to give best-in-class analog performance and total value.
In comparison to bipolar LDOs, this CMOS (LDOs) will consume much less quiescent current as a function of load, resulting in improved efficiency and the potential to explore packages with smaller footprints. To enable a leading class fast load transient response and hence a shorter overall AC regulation band for an LDO in this category, the quiescent current has been modestly reduced.

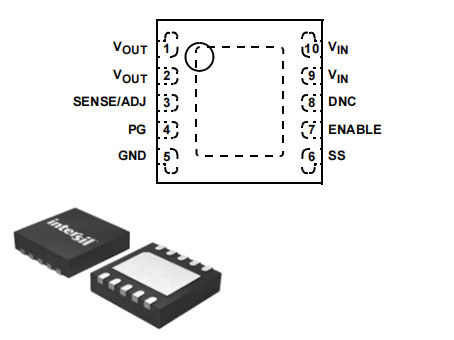

The ISL80103IRAJZ Pinout is shown as follows.
Pinout
| Pin Number | Pin Name | Description |
| 1, 2 | VOUT | Output voltage pin. |
| 3 | SENSE/ADJ | Remote voltage sense for internally fixed VOUT options. ADJ pin for externally set VOUT. |
| 4 | PG | VOUT in the regulation signal. Logic low defines when VOUT is not in regulation. Must be grounded if not used. |
| 5 | GND | GND pin. |
| 6 | SS | External cap adjusts in-rush current. |
| 7 | ENABLE | VIN independent chip enable. TTL and CMOS compatible. |
| 8 | DNC | Do not connect this pin to ground or supply. Leave floating |
| 9, 10 | VIN | Input supply pin. |
| EPAD | EPAD must be connected to copper plane with as many vias as possible for proper electrical and optimal thermal performance. |
The following figure is ISL80103IRAJZ Symbol and Footprint.

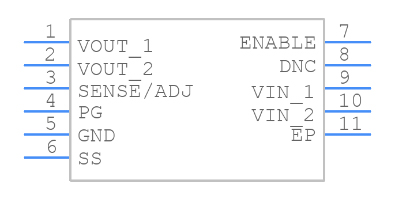

Symbol

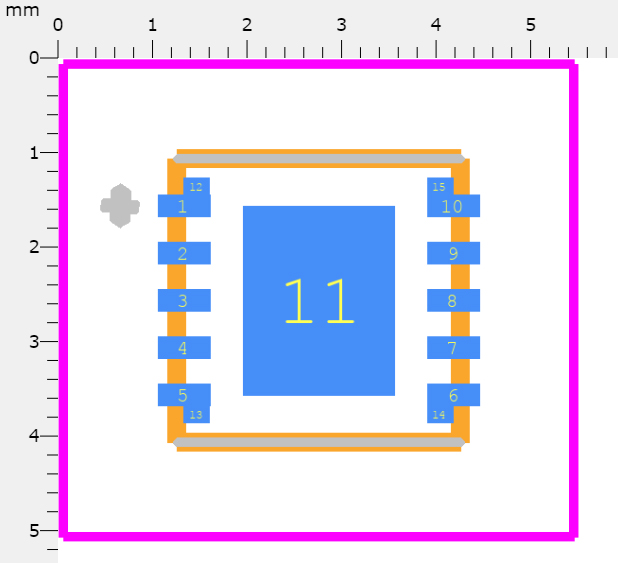

Footprint
• Stable with all capacitor types
• 2A and 3A output current ratings
• 2.2V to 6V input voltage range
• ±1.8% VOUT accuracy guaranteed over line, load and TJ = -40°C to +125°C
• Very low 120mV dropout voltage at 3A
• Fixed and adjustable VOUT versions
• Very fast transient response
• Excellent 62dB PSRR
• 100µVRMS output noise
• Power-good output
• Adjustable in-rush current limiting
• Short circuit and over-temperature protection
• Available in a 10 Ld DFN
• Servers
• Telecommunications and networking
• Medical equipment
• Instrumentation systems
• Routers and switchers
Intersil (Renesas Electronics America) ISL80103IRAJZ technical specifications, attributes, parameters and parts with similar specifications to Intersil (Renesas Electronics America) ISL80103IRAJZ.
Intersil (Renesas Electronics America) ISL80103IRAJZ technical specifications, attributes, parameters and parts with similar specifications to Intersil (Renesas Electronics America) ISL80103IRAJZ.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 8 Weeks | |
| Mount | Surface Mount | |
| Package / Case | DFN | |
| Number of Pins | 10Pins | |
| Published | 2008 | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 10Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Max Operating Temperature | 125°C | |
| Min Operating Temperature | -40°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | DUAL | |
| Terminal Form | NO LEAD | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Terminal Pitch | 0.5mm | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Pin Count | 10 | |
| Number of Outputs | 1Output | |
| Qualification Status | Not Qualified | |
| Output Type | Adjustable | |
| Max Output Current | 3A | |
| Polarity | Positive | |
| Max Output Voltage | 5V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Output | 5V | |
| Min Input Voltage | 2.2V | |
| Max Input Voltage | 6V | |
| Dropout Voltage | 120mV | |
| Min Output Voltage | 800mV | |
| Power Supply Rejection Ratio (PSRR) | 62dB | |
| Length | 3mm | |
| Width | 3mm | |
| REACH SVHC | No SVHC | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Lead Free |

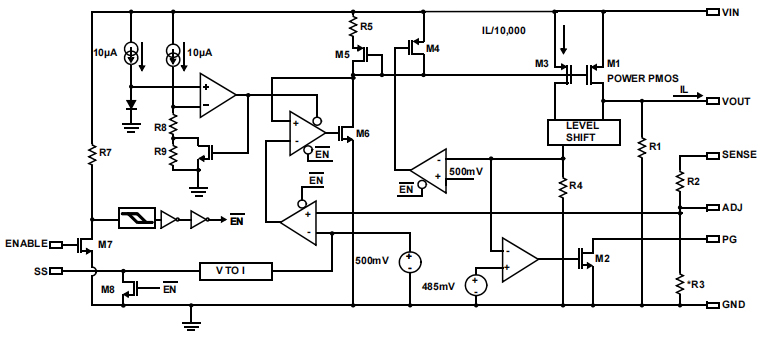

The following figure is ISL80103IRAJZ Functional Block Diagram.
Functional Block Diagram

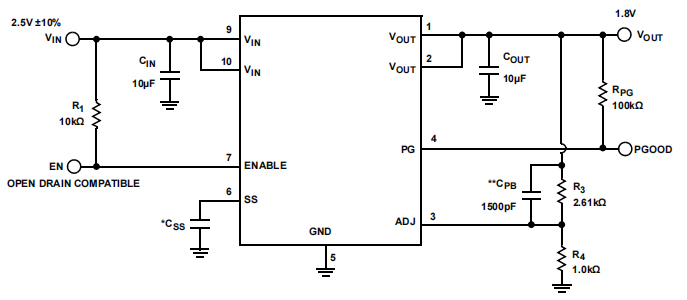

The following figure is ISL80103IRAJZ Typical Application.
Typical Application
| Part Number | Description | Manufacturer |
| ISL80103IRAJZ-TPOWER CIRCUITS | High Performance 3A Linear Regulator; DFN10; Temp Range: -40° to 125°C | Intersil Corporation |
• Servers
• Telecommunications and Networking
• Medical Equipment
• Instrumentation Systems
• Routers and Switchers

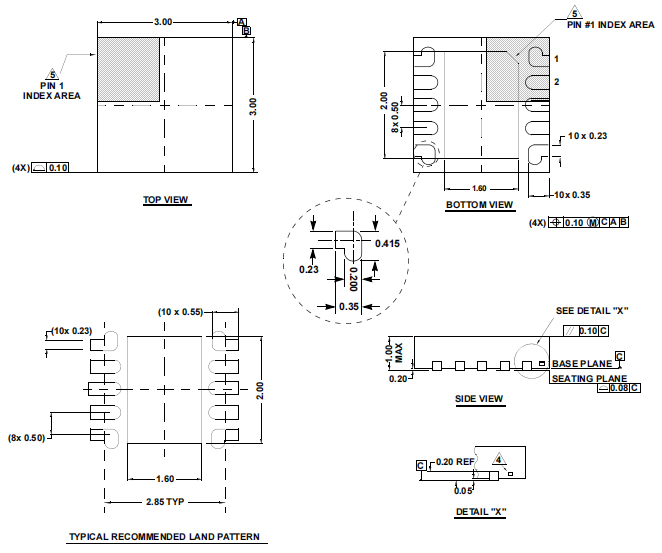

The ISL80103IRAJZ Package is shown as follows.
Package
Renesas and Intersil will merge on January 1, 2018, resulting in a considerable increase in semiconductor inherent capabilities. Intersil's market-leading expertise in high-performance power management and precision analog devices is combined with Renesas' globally regarded MCU and SoC technologies. As a result, organic expansion in the automotive, industrial, and broad-based industries occurs, allowing the new company to respond more quickly to clients' system requirements.
The merger of Renesas and Intersil began on February 24, 2017, with the completion of the acquisition, and the unified "One Global Renesas" went into operation across all markets the following July, bringing together the strengths of both companies in anticipation of customer needs in a rapidly changing market environment. This genuinely worldwide company has a tremendous amount of synergy. Join Renesas as it improves its position as the world's premier semiconductor manufacturer.
