ITR2010:Through Hole Photointerrupters - Slot Type - Transistor Output ROHS

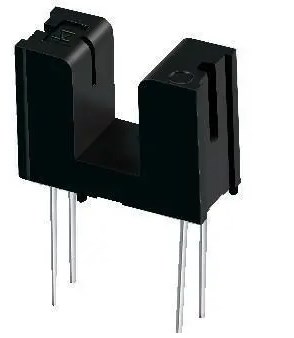

The BY-ITR2010  (Slot Optical Switch) is a gallium arsenide infrared emitting diode which is coupled with a silicon phototransistor in a plastic housing. The packaging system is designed to optimize the mechanical resolution, coupling efficiency, and insulates ambient light. The slot in the housing provides a means of interrupting the signal with a printer, scanner, copier, or other opaque material, switching the output from an “ON” to an “OFF” state.

• Fast response time

• High analytic

• Cut-off visible wavelength λp=940nm

• High sensitivity

• Pb free

• This product itself will remain within RoHS compliant version

Everlight Elec ITR2010 technical specifications, attributes, parameters and parts with similar specifications to Everlight Elec ITR2010.

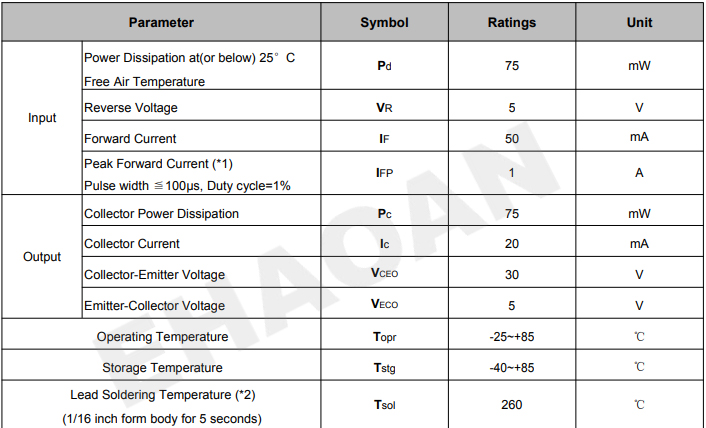

ITR2010 Absolute Maximum Ratings

• Mouse Copier

• Switch Scanner

• Floppy disk driver

• Non-contact Switching

• For Direct Board

Everlight Electronics Co., Ltd. was founded in 1983 in Taipei, Taiwan. Playing a critical role in the formation of the global LED industry, the company is rapidly ascending to become a leading supplier due to its dedication to certification, R&D, production, quality, marketing, and global customer service. Everlight provides a diverse product portfolio consisting of High Power LEDs, Lamps, SMD LEDs, LED Lighting Modules, Digital Displays, Optocouplers, and Infrared Components for various applications. Today, Everlight is a global company with over 6,400 employees based in China, Hong Kong, Japan, Korea, Singapore, Malaysia, Germany, Sweden, U.S., and Canada.
