What is a JFET Transistor? How Does a JFET Transistor Work?
Transistors - JFETs JFET N-CH 35V 625MW TO92
The J112 is a JFET N Channel Transistor. This article will unlock more details about J112. There is a huge range of Semiconductors, Capacitors, Resistors and ICs in stock. Welcome RFQ!
J112
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.52873 | $0.53 |
| 10+ | $0.49881 | $4.99 |
| 100+ | $0.47057 | $47.06 |
| 500+ | $0.44394 | $221.97 |
| 1000+ | $0.41881 | $418.81 |
J112 Symbol

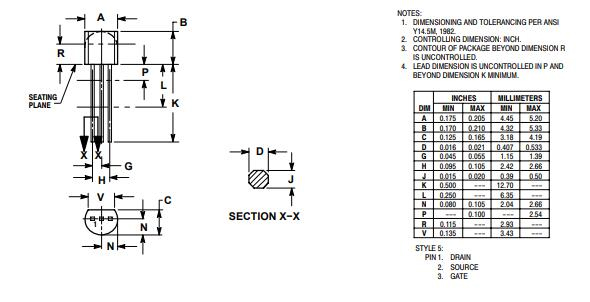

J112 Footprint
J112 3D Model
J112 JFET N Channel Transistor is designed for low-level analogue switching, sample and hold circuits and chopper stabilized amplifiers.
Type Designator: J112
Type of Transistor: JFET
Type of Control Channel: N -Channel
Package: TO92
High-speed switching
Interchangeability of drain and source connections
Low Capacitance
Analogue switches
Choppers
Commutators
Multiplexers
Current Limiters
The equivalent for J112:
HJ112
PMBFJ112
MMBFJ112
SSM3J112TU
ON Semiconductor J112 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor J112.
ON Semiconductor J112 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor J112.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 2 days ago) | |
| Factory Lead Time | 7 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | |
| Number of Pins | 3Pins | |
| Supplier Device Package | TO-92-3 | |
| Weight | 200.998119mg | |
| Breakdown Voltage / V | -35V | |
| Operating Temperature | -55°C~150°C TJ | |
| Packaging | Bulk | |
| Published | 2006 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -65°C | |
| Voltage - Rated DC | 35V | |
| Max Power Dissipation | 625mW | |
| Current Rating | 50mA | |
| Base Part Number | J112 | |
| Voltage | 35V | |
| Element Configuration | Single | |
| Current | 5A | |
| Power Dissipation | 350mW | |
| Power - Max | 625mW | |
| FET Type | N-Channel | |
| Drain to Source Voltage (Vdss) | 35V | |
| Continuous Drain Current (ID) | 5mA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Gate to Source Voltage (Vgs) | -35V | |
| Drain to Source Resistance | 50Ohm | |
| Current - Drain (Idss) @ Vds (Vgs=0) | 5mA @ 15V | |
| Voltage - Cutoff (VGS off) @ Id | 1V @ 1μA | |
| Voltage - Breakdown (V(BR)GSS) | 35V | |
| Resistance - RDS(On) | 50Ohms | |
| Height | 5.33mm | |
| Length | 5.2mm | |
| Width | 4.19mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
ON Semiconductor (Nasdaq: ON) is driving energy efficient innovations, empowering customers to reduce global energy use. The company offers a comprehensive portfolio of energy-efficient power and signal management, logic, discrete and custom solutions to help design engineers solve their unique design challenges in automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace and power supply applications. ON Semiconductor operates a responsive, reliable, world-class supply chain and quality program, and a network of manufacturing facilities, sales offices and design centres in key markets throughout North America, Europe, and the Asia Pacific regions.
Download datasheets and manufacturer documentation for ON Semiconductor J112.
Download datasheets and manufacturer documentation for J112
