J201 is a JFET N-Channel Transistor. This article will unlock pinout, datasheet, equivalent and more details about J201. Welcome your RFQ!
J201 Transistor: JFET N-Channel, Pinout, Datasheet, Equivalent
Transistors - JFETs JFET N-CH 40V 0.625W TO92 J201 is a JFET N-Channel Transistor. This article will unlock pinout, datasheet, equivalent and more details about J201. Welcome your RFQ!
628
Nov 26, 2021
Madge Bronte
J201
Inquiry
Min.: 1 Mult.: 1
Quick Links
J201 Description
J201 JFET N-Channel Transistor is designed primarily for low-level audio and general, purpose applications with high impedance signal sources.
J201 Pinout
J201 CAD Model
J201 Symbol

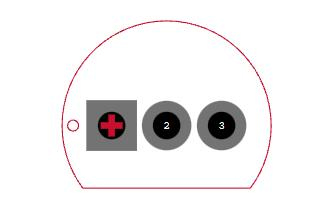

J201 Footprint
J201 3D Model
J201 Feature
-
Type Designator: J201
-
Type of Transistor: JFET
-
Type of Control Channel: N-Channel
-
Package: TO-92
-
Low Cutoff Voltage
-
High Input Impedance
-
Very Low Noise
J201 Application
-
High-Gain, Low-Noise Amplifiers
-
Low-Current, Low-Voltage
-
Battery-Powered Amplifiers
-
Infrared Detector Amplifiers
-
Ultra-High Input
J201 Equivalent
The equivalent for J201:
-
2SJ201
-
LJ2015-52
-
MMBFJ201
-
CJ201NL
Specifications
ON Semiconductor J201 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor J201.
J201 Tech Specifications
J201 Tech Specifications
ON Semiconductor J201 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor J201.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mounting Type | Through Hole | |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | |
| Supplier Device Package | TO-92-3 | |
| Operating Temperature | -55°C~150°C TJ |
| Product Attribute | Attribute Value | |
|---|---|---|
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Power - Max | 625mW |
| Product Attribute | Attribute Value | |
|---|---|---|
| FET Type | N-Channel | |
| Current - Drain (Idss) @ Vds (Vgs=0) | 200μA @ 20V | |
| Voltage - Cutoff (VGS off) @ Id | 300mV @ 10nA | |
| Voltage - Breakdown (V(BR)GSS) | 40V |
J201 Package
J201 Package
J201 Manufacturer
ON Semiconductor (Nasdaq: ON) is driving energy efficient innovations, empowering customers to reduce global energy use. The company offers a comprehensive portfolio of energy-efficient power and signal management, logic, discrete and custom solutions to help design engineers solve their unique design challenges in automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace and power supply applications.
ON Semiconductor operates a responsive, reliable, world-class supply chain and quality program, and a network of manufacturing facilities, sales offices and design centres in key markets throughout North America, Europe, and the Asia Pacific regions.
Datasheet PDF
Download datasheets and manufacturer documentation for ON Semiconductor J201.
J201 Documents
J201 Documents
Download datasheets and manufacturer documentation for J201
Frequently Asked Questions
What is the use of a J201 transistor?
J201 is a general-purpose JFET transistor built for amplification purposes. It is manufactured in TO-92 and SOT-23 packages.
How JFET is different from MOSFET?
JFET is operated only in depletion mode, whereas MOSFET is operated in both depletion mode and enhancement mode. MOSFETs are used in VLSI circuits owing to their expensive manufacturing process, against the less expensive JFETs which are mainly used in small-signal applications.
Can I use a Mosfet instead of a JFET?
Compared to the JFET, MOSFETs are easier to fabricate. JFETs are operated only in the depletion mode. The depletion type MOSFET may be operated in both depletion and enhancement modes.
FAQ
What is the use of a J201 transistor?
J201 is a general-purpose JFET transistor built for amplification purposes. It is manufactured in TO-92 and SOT-23 packages.
How JFET is different from MOSFET?
JFET is operated only in depletion mode, whereas MOSFET is operated in both depletion mode and enhancement mode. MOSFETs are used in VLSI circuits owing to their expensive manufacturing process, against the less expensive JFETs which are mainly used in small-signal applications.
Can I use a Mosfet instead of a JFET?
Compared to the JFET, MOSFETs are easier to fabricate. JFETs are operated only in the depletion mode. The depletion type MOSFET may be operated in both depletion and enhancement modes.
