The KA4558 is a monolithic integrated circuit designed for dual operational amplifiers. This post will unlock more details about KA4558. There is a huge range of Semiconductors, Capacitors, Resistors and ICs in stock. Welcome RFQ!
KA4558

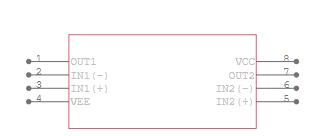

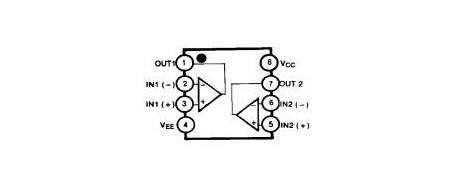

KA4558 Symbol

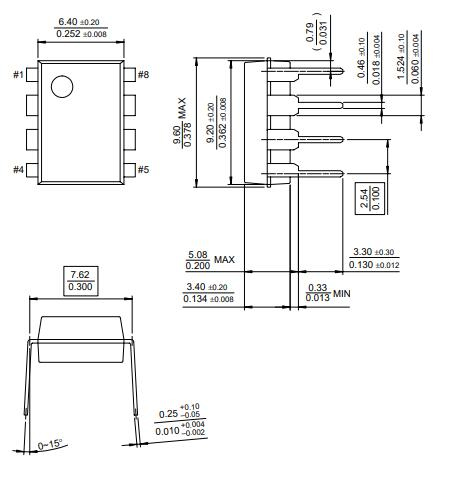

KA4558 Footprint
KA4558 3D Model

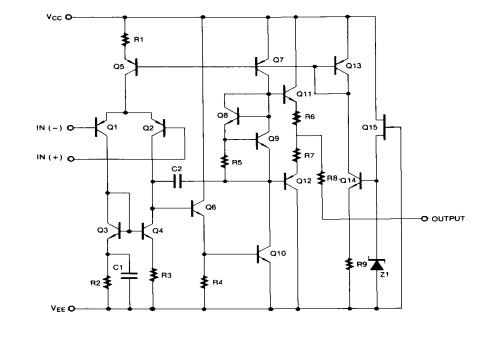

The KA4558 is a Dual Operational Amplifier with low noise input transistors. A monolithic integrated circuit designed for dual operational amplifier. This product is general usage and suitable for many different applications.
Large common mode and differential voltage range
Parameter tracking over-temperature range
Gain and phase match between amplifiers
Internally frequency-compensated
No frequency compensation required
No latch-up
Signal Processing
Industrial
The alternative for KA4558:
NE3552
JRC4558
ON Semiconductor KA4558 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor KA4558.
ON Semiconductor KA4558 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor KA4558.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | LIFETIME (Last Updated: 1 day ago) | |
| Package / Case | 8-DIP (0.300, 7.62mm) | |
| Mounting Type | Through Hole | |
| Mount | Through Hole | |
| Number of Pins | 8Pins | |
| Weight | 851mg | |
| Number of Elements | 2 Elements | |
| Published | 2001 | |
| Packaging | Tube | |
| Operating Temperature | 0°C~70°C | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Last Time Buy | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Finish | Tin (Sn) | |
| Terminal Position | DUAL | |
| Number of Functions | 2Functions | |
| Supply Voltage | 15V | |
| Base Part Number | KA4558 | |
| Operating Supply Voltage | 44V | |
| Power Supplies | +-15V | |
| Operating Supply Current | 3.5mA | |
| Nominal Supply Current | 5.8mA | |
| Power Dissipation | 400mW | |
| Slew Rate | 1.2V/μs | |
| Architecture | VOLTAGE-FEEDBACK | |
| Amplifier Type | General Purpose | |
| Common Mode Rejection Ratio | 70 dB | |
| Current - Input Bias | 30nA | |
| Input Offset Voltage (Vos) | 6mV |
| Product Attribute | Attribute Value | |
|---|---|---|
| Neg Supply Voltage-Nom (Vsup) | -15V | |
| Unity Gain BW-Nom | 3000 kHz | |
| Voltage Gain | 106.02dB | |
| Average Bias Current-Max (IIB) | 0.5μA | |
| Power Supply Rejection Ratio (PSRR) | 76dB | |
| Low-Offset | NO | |
| Frequency Compensation | YES | |
| Voltage - Input Offset | 2mV | |
| Max Dual Supply Voltage | 22V | |
| Bias Current-Max (IIB) @25C | 0.5μA | |
| Width | 6.4mm | |
| Length | 9.6mm | |
| Height | 3.4mm | |
| RoHS Status | ROHS3 Compliant | |
| Radiation Hardening | No | |
| Lead Free | Lead Free |
