HIGH AMP Brindge Rectifier 1000V 50A
Diode Rectifier Bridge Single 1KV 50A 4-Pin Case KBPC Box
KBPC5010 is a 50A 1000V rectifier bridge. It is a single-phase silicon bridge rectifier with a reverse voltage of 50 to 1000V, 50.0A. This article mainly introduces package, pinout, datasheet and other detailed information about Comchip Technology KBPC5010.
KBPC5010-G
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $11.81846 | $11.82 |
| 10+ | $11.14949 | $111.49 |
| 100+ | $10.51839 | $1051.84 |
| 500+ | $9.92301 | $4961.51 |
| 1000+ | $9.36133 | $9361.33 |
KBPC5010 is a 50A 1000V rectifier bridge. It is a single-phase silicon bridge rectifier with a reverse voltage of 50 to 1000V, 50.0A. Its forward current is 10/15/25/35/50A, RoHS Device.
If it is only used the rectifier bridge to prevent reverse connection, it can be implemented in a DXI-50-1200 1200V, TO-237/TOP3 package. If the requirements are high, you can use EUPEC's DD89N as a replacement, which is a 140A 1200V tube.
● Surge Overload -240~500 Amperes Peak.
● Low Forward Voltage Drop.
● Electrically Isolated Base -2000 Volts.
● Materials Used Carries UL Recognition.
● UL Recognized File # E349301
Comchip Technology KBPC5010-G technical specifications, attributes, parameters and parts with similar specifications to Comchip Technology KBPC5010-G.
Comchip Technology KBPC5010-G technical specifications, attributes, parameters and parts with similar specifications to Comchip Technology KBPC5010-G.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 12 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | QC Terminal | |
| Package / Case | 4-Square, KBPC | |
| Diode Element Material | SILICON | |
| Number of Elements | 4 Elements | |
| Operating Temperature | -55°C~150°C TJ | |
| Packaging | Bulk | |
| Published | 2003 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 4Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Additional Feature | UL RECOGNIZED | |
| HTS Code | 8541.10.00.80 | |
| Terminal Position | UPPER | |
| Terminal Form | SOLDER LUG | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| JESD-30 Code | R-XUFM-D4 | |
| Configuration | BRIDGE, 4 ELEMENTS | |
| Diode Type | Single Phase | |
| Current - Reverse Leakage @ Vr | 5μA @ 1000V | |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 25A |
| Product Attribute | Attribute Value | |
|---|---|---|
| Case Connection | ISOLATED | |
| Max Reverse Leakage Current | 10μA | |
| Max Surge Current | 500A | |
| Output Current-Max | 50A | |
| Current - Average Rectified (Io) | 50A | |
| Number of Phases | 1Phase | |
| Voltage - Peak Reverse (Max) | 1kV | |
| Breakdown Voltage-Min | 1000V | |
| Height | 10.77mm | |
| Length | 28.3mm | |
| Width | 28.3mm | |
| RoHS Status | ROHS3 Compliant |

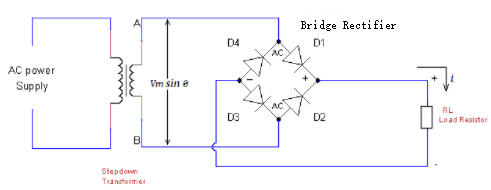

Wiring Diagram
| Part Number | KBPC10005-G KBPC15005-G KBPC25005-G KBPC35005-G KBPC50005-G |
KBPC1001-G KBPC1501-G KBPC2501-G KBPC3501-G KBPC5001-G |
KBPC1002-G KBPC1502-G KBPC2502-G KBPC3502-G KBPC5002-G |
KBPC1004-G KBPC1504-G KBPC2504-G KBPC3504-G KBPC5004-G |
KBPC1006-G KBPC1506-G KBPC2506-G KBPC3506-G KBPC5006-G |
KBPC1008-G KBPC1508-G KBPC2508-G KBPC3508-G KBPC5008-G |
KBPC1010-G KBPC1510-G KBPC2510-G KBPC3510-G KBPC5010-G |

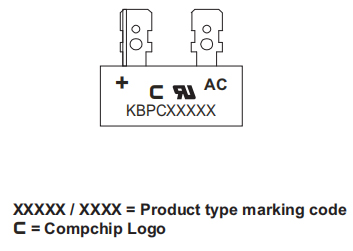

| Marking code | KBPC10005 KBPC15005 KBPC25005 KBPC35005 KBPC50005 |
KBPC1001 KBPC1501 KBPC2501 KBPC3501 KBPC5001 |
KBPC1002 KBPC1502 KBPC2502 KBPC3502 KBPC5002 |
KBPC1004 KBPC1504 KBPC2504 KBPC3504 KBPC5004 |
KBPC1006 KBPC1506 KBPC2506 KBPC3506 KBPC5006 |
KBPC1008 KBPC1508 KBPC2508 KBPC3508 KBPC5008 |
KBPC1010 KBPC1510 KBPC2510 KBPC3510 KBPC5010 |
● Mains Rectification
● Products in the Field of Power Circuit Rectification
● Switching Power Supplies
● Power Adapters
● LED Light Source Circuits
● Chargers
● Refrigerators
● Air Conditioners
● Household Appliances
● Small Appliances and Other Related Products
● Automotive Rectifiers
● Electromechanical Equipment
Comchip Technology Corporation is in a leading position in the design and manufacture of discrete SMD semiconductor systems. Comchip provides bridge rectifiers, fast and efficient rectifiers, switching diodes, Zener diodes, Schottky diodes, TVS and ESD surge protectors with unique research and proprietary production skills.
For your application, we provide the correct diode. Comchip Technology was the first company to establish a RoHS-compliant DFN/flat chip package, using gold terminations to eliminate the potential of tin whiskers. SOD-323F (1005), SOD-523F (0603), SOD-723F (0503), SOD-923F (0402) and 0201 packages can be used in DFN packages. Comchip devices are suitable for many applications, including lighting, automotive, industrial, TFT-LCD, networking/telecommunications, mobile, consumer electronics, and high-reliability applications with zero tin whisker potential. The computer is equipped with a variety of computers.
Comchip has passed TS16949, ISO9001 and ISO14001 certifications to provide better quality and reliability. Comchip bridge corrector and TVS passed the UL safety equipment application test as an additional safety layer. Many Comchip diodes meet the AEC-Q101 automotive stress-test standard and are suitable for automotive and high-reliability applications.
Download datasheets and manufacturer documentation for Comchip Technology KBPC5010-G.
Download datasheets and manufacturer documentation for KBPC5010-G
