KSZ8081MNX Transceiver: Pinout, Equivalent and Datasheet

The following figure is the diagram of KSZ8081MNX pinout.

Pinout

The followings are KSZ8081MNX Symbol, Footprint, and 3D Model.

PCB Symbol

PCB Footprint

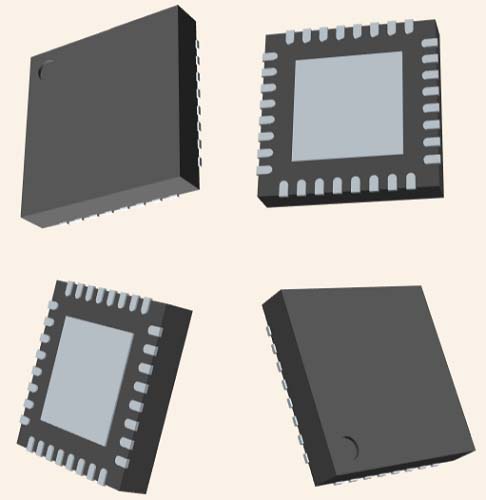

3D Model

The KSZ8081MNX offers the Media Independent Interface (MII) for direct connection with MII-compliant Ethernet MAC processors and switches. The KSZ8081 is a single-supply 10BASE-T/100BASE-TX Ethernet physical-layer transceiver for transmission and reception of data over standard CAT-5 unshielded twisted pair (UTP) cable. The KSZ8081 is a highly-integrated PHY solution. It reduces board cost and simplifies board layout by using on-chip termination resistors for the differential pairs and by integrating a low-noise regulator to supply the 1.2V core. The KSZ8081 provides diagnostic features to facilitate system bring-up and debugging in production testing and in product deployment. Parametric NAND tree support enables fault detection between KSZ8081 I/Os and the board. LinkMD^® TDR-based cable diagnostics identify faulty copper cabling. The KSZ8081MNX and KSZ8081RNB are available in 32-pin, lead-free QFN packages.

This article provides you with a basic overview of the KSZ8081MNX Transceiver, including its pin descriptions, features and specifications, etc., to help you quickly understand what KSZ8081MNX is.

● Single-chip 10Base-T/100Base-TX IEEE 802.3 compliant Ethernet transceiver

● MII interface support

● Back-to-back mode support for a 100 Mbps copper repeater

● MDC/MDIO management interface for PHY register configuration

● Programmable interrupt output

● LED outputs for link, activity, and speed status indication

● On-chip termination resistors for the differential pairs

● Baseline wander correction

● HP Auto MDI/MDI-X to reliably detect and correct straight-through and crossover cable connections with disable and enable option

● Auto-negotiation to automatically select the highest link-up speed (100 Mbps) and duplex (half/full)

● Power-down and power-saving modes

● LinkMD TDR-based cable diagnostics to identify faulty copper cabling

● Parametric NAND Tree support for fault detection between chip I/Os and the board

● HBM ESD rating (6 kV)

● Loopback modes for diagnostics

● Single 3.3V power supply with VDD I/O options for 1.8V, 2.5V, or 3.3V

● Built-in 1.2V regulator for core

● Available in 32-pin (5 mm × 5 mm) QFN package

Microchip Technology KSZ8081MNXIA-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology KSZ8081MNXIA-TR.

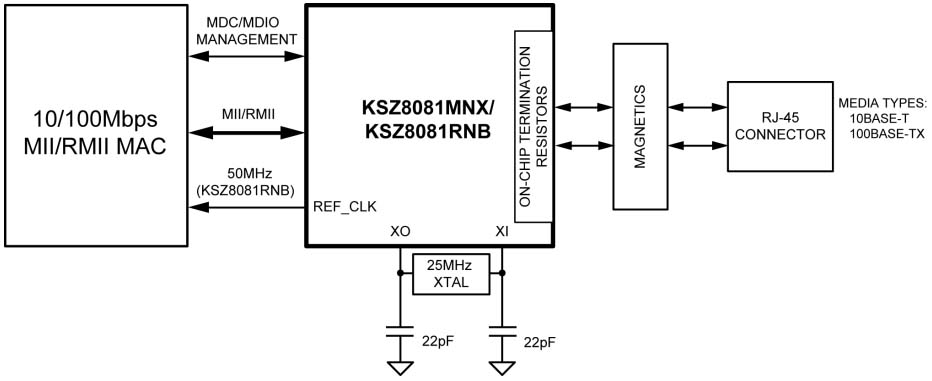

The following is the Block Diagram of KSZ8081MNX.

Functional Block Diagram

The following is the Recommended Reset Circuit of KSZ8081MNX.

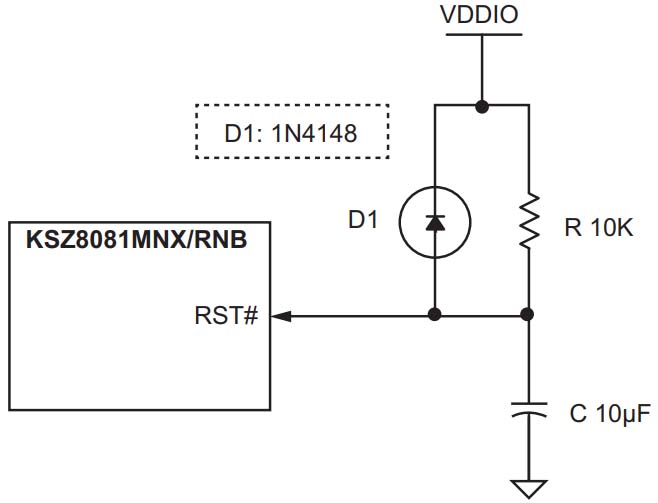

Recommended Reset Circuit

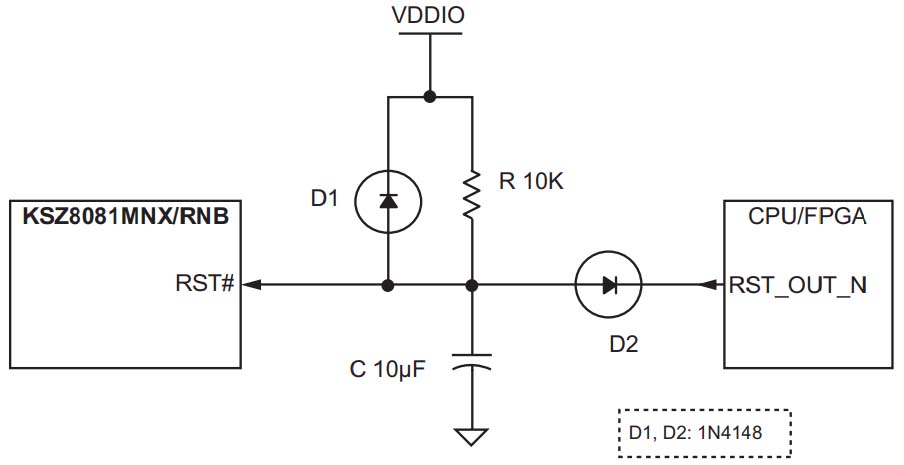

Recommended Reset Circuit for Interfacing with CPU/FPGA Reset Output

● Game console

● IP phone

● IP set-top box

● IP TV

● LOM

● Printer

The following diagram shows the KSZ8081MNX package.

Top View

Side View

Bottom View

The following diagram shows the KSZ8081MNX Recommended Land Pattern.

Recommended Land Pattern
