Overview of KSZ8081MNXCA

The KSZ8081MNXCA is a single-supply 10BASE-T/100BASE-TX Ethernet physical-layer transceiver for transmission and reception of data over standard CAT-5 unshielded twisted pair (UTP) cable.

The KSZ8081MNXCA is a highly-integrated PHY solution. It reduces board cost and simplifies board layout by using on-chip termination resistors for the differential pairs and by integrating a low-noise regulator to supply the 1.2V core.

The KSZ8081MNXCA offers the Media Independent Interface (MII) and the theKSZ8081MNXCA offers the Reduced Media Independent Interface (RMII) for direct connection with MII/RMII-compliant Ethernet MAC processors and switches. A 25 MHz crystal is used to generate all required clocks, including the 50 MHz RMII reference clock output for the KSZ8081MNXCA.

KSZ8081MNXCA Features

• Back-to-back mode support for a 100 Mbps copper repeater

• MDC/MDIO management interface for PHY register configuration

• Programmable interrupt output

• LED outputs for link, activity, and speed status indication

• On-chip termination resistors for the differential pairs

• Baseline wander correction

• HP Auto MDI/MDI-X to reliably detect and correct straight-through and crossover cable connections with disabling and enabling the option

• Auto-negotiation to automatically select the highest link-up speed (10/100 Mbps) and duplex (half/full)

• Power-down and power-saving modes

• LinkMD TDR-based cable diagnostics to identify faulty copper cabling

• Parametric NAND Tree support for fault detection between chip I/Os and the board

• HBM ESD rating (6 kV)

• Loopback modes for diagnostics

• Single 3.3V power supply with VDD I/O options for 1.8V, 2.5V, or 3.3V

• Built-in 1.2V regulator for core

• Available in 32-pin (5 mm × 5 mm) QFN package

KSZ8081MNXCA Pinout

KSZ8081MNXCA Pinout

KSZ8081MNXCA Block Diagram

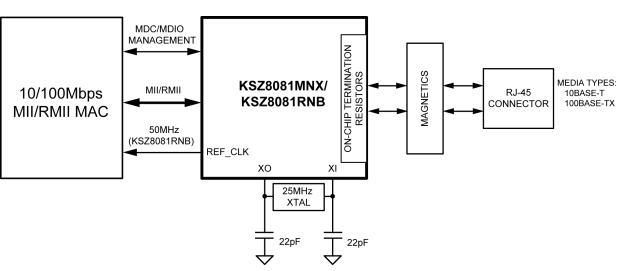

KSZ8081MNXCA Block Diagram

KSZ8081MNXCA CAD Model

KSZ8081MNXCA Symbol

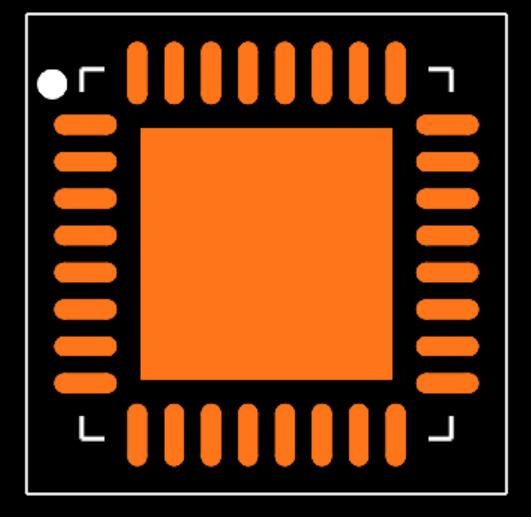

KSZ8081MNXCA Footprint

Specifications

KSZ8081MNXCA Tech Specifications

Microchip Technology KSZ8081MNXCA technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology KSZ8081MNXCA.

Product Attribute	Attribute Value
Factory Lead Time	1 Weeks
Package / Case	32-VFQFN Exposed Pad
Mounting Type	Surface Mount
Mount	Surface Mount
Supplier Device Package	32-QFN (5x5)
Usage Level	Automotive grade
Packaging	Tube
Operating Temperature	0°C~70°C

Product Attribute	Attribute Value
Part Status	Active
Moisture Sensitivity Level (MSL)	2A (4 Weeks)
Type	Transceiver
Max Operating Temperature	70°C
Min Operating Temperature	0°C
Voltage - Supply	1.8V 2.5V 3.3V
Base Part Number	KSZ8081
Data Rate	100 Mbps

Product Attribute	Attribute Value
Protocol	MII
Number of Drivers/Receivers	1/1Drivers/Receiver
Duplex	Full
Simplex/Duplex	Full Duplex
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

View Similar

KSZ8081MNXCA Applications

• Game console

• IP phone

• IP set-top box

• IP TV

• LOM

• Printer

KSZ8081MNXCA Manufacturer

Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, providing low-risk product development, lower total system cost, and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.
