KSZ8081RNA Transceiver: Pinout, Equivalent and Datasheet

The followings are KSZ8081RNA Symbol, Footprint, and 3D Model.

PCB Symbol

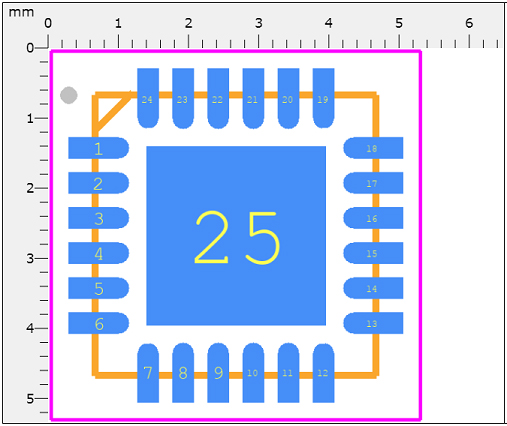

PCB Footprint

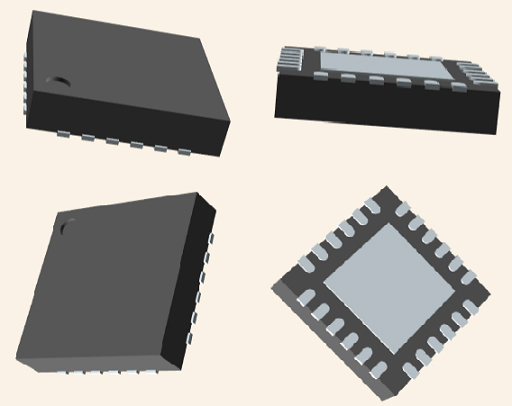

3D Model

The KSZ8081RNA is a single-supply 10BASE-T Ethernet physical-layer transceiver for transmission and reception of data over standard CAT-5 unshielded twisted pair (UTP) cable. The KSZ8081RNA is a highly-integrated PHY solution. It reduces board cost and simplifies board layout by using on-chip termination resistors for the differential pairs and by integrating a low-noise regulator to supply the 1.2V core, and by offering 1.8/2.5/3.3V digital I/O interface support. The KSZ8081RNA offers the Reduced Media Independent Interface (RMII) for direct connection to RMII-compliant MACs in Ethernet processors and switches. As the power-up default, the KSZ8081RNA uses a 25 MHz crystal to generate all required clocks, including the 50 MHz RMII reference clock output for the MAC. To facilitate system bring-up and debugging in production testing and in product deployment, parametric NAND tree support enables fault detection between KSZ8081RNA I/Os and the board. LinkMD® TDR-based cable diagnostics identify faulty copper cabling. The KSZ8081RNA is available in 24-pin, lead-free QFN package.

This article provides you with a basic overview of the KSZ8081RNA Transceiver, including its pin descriptions, features and specifications, etc., to help you quickly understand what KSZ8081RNA is.

● Single-Chip 10BASE-T IEEE 802.3 Compliant Ethernet Transceiver

● RMII v1.2 Interface Support with a 50 MHz Reference Clock Output to MAC, and an Option to Input a 50 MHz Reference Clock

● RMII Back-to-Back Mode Support for a 100 Mbps Copper Repeater

● MDC/MDIO Management Interface for PHY Register Configuration

● Programmable Interrupt Output

● LED Outputs for Link and Activity Status Indication

● On-Chip Termination Resistors for the Differential Pairs

● Baseline Wander Correction

● HP Auto MDI/MDI-X to Reliably Detect and Correct Straight-Through and Crossover Cable Connections with Disable and Enable Option

● Auto-Negotiation to Automatically Select the Highest Link-Up Speed (100 Mbps) and Duplex (Half/Full)

● Power-Down and Power-Saving Modes

● LinkMD^® TDR-Based Cable Diagnostics to Identify Faulty Copper Cabling

● Parametric NAND Tree Support for Fault Detection Between Chip I/Os and the Board

● HBM ESD Rating (6 kV)

● Loopback Modes for Diagnostics

● Single 3.3V Power Supply with V_DD I/O Options for 1.8V, 2.5V, or 3.3V

● Built-In 1.2V Regulator for Core

● Available in 24-pin 4 mm x 4 mm QFN Package

Microchip Technology KSZ8081RNACA-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology KSZ8081RNACA-TR.

The following is the Block Diagram of KSZ8081RNA.

System Block Diagram

● Game Consoles

● IP Phones

● IP Set-Top Boxes

● IP TVs

● LOM

● Printers

The following diagram shows the KSZ8081RNA package.

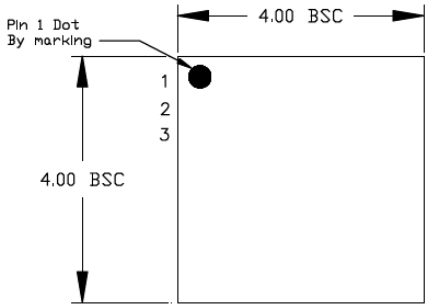

Top View

Bottom View

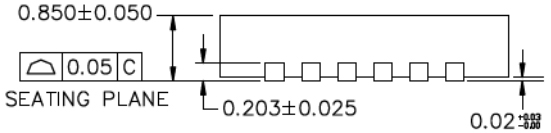

Side View

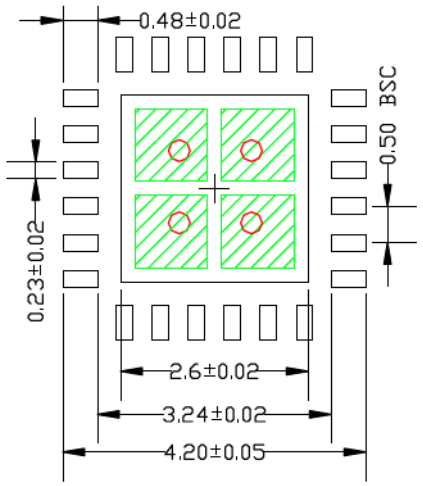

The following is the Recommended Land Pattern of KSZ8081RNA.

Recommended Land Pattern
