Electronics: KSZ8081RNACA phy address setting up
KSZ8081RNACA is an Ethernet physical-layer transceiver with a single supply for data transmission. This article is going to introduce pinout, applications, features, and more details about KSZ8081RNACA.
KSZ8081RNACA
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.92142 | $0.92 |
| 10+ | $0.86927 | $8.69 |
| 100+ | $0.82006 | $82.01 |
| 500+ | $0.77364 | $386.82 |
| 1000+ | $0.72985 | $729.85 |
The KSZ8081RNACA is a 10BASE-T/100BASE-TX Ethernet physical-layer transceiver with a single supply for data transmission and reception over CAT-5 unshielded twisted pair (UTP) cable.
The KSZ8081RNACA is a PHY solution with a high level of integration. It uses on-chip termination resistors for the differential pairs, integrates a low-noise regulator to supply the 1.2V core, and supports 1.8/2.5/3.3V digital I/O interfaces, which minimizes board cost and simplifies board architecture.
For direct connection to RMII-compliant MACs in Ethernet processors and switches, the KSZ8081RNACA supports the Reduced Media Independent Interface (RMII).
• IEEE 802.3 Compliant Single-Chip 10BASE-T/100BASE-TX Ethernet Transceiver
• RMII v1.2 Interface Support with Output to MAC of 50 MHz Reference Clock and Input of 50 MHz Reference Clock
• Support for RMII Back-to-Back Mode on a 100 Mbps Copper Repeater
• PHY Register Configuration through MDC/MDIO Management Interface
• Interrupt Output that can be programmed
• Link and Activity Status Indication LED Outputs
• Differential Pair Termination Resistors on the Chip
• Wander Correction at the Start
• Disable and Enable Option for HP Auto MDI/MDI-X to Reliably Detect and Correct Straight-Through and Crossover Cable Connections
• Auto-Negotiation to Choose the Fastest Link-Up Speed (10/100 Mbps) and Duplex (Half/Full) Automatically
• Energy-Saving and Power-Down Modes
• Faulty Copper Cabling Detection with LinkMD® TDR-Based Cable Diagnostics
• Fault Detection Between Chip I/Os and the Board with Parametric NAND Tree Support
• ESD Rating of HBM (6 kV)
• Diagnostics Loopback Modes
• Single 3.3V power supply with 1.8V, 2.5V, or 3.3V VDD I/O options
• Core has a built-in 1.2V regulator.
• Available in a 24-pin QFN package with dimensions of 4 mm x 4 mm.
KSZ8081RNACA Pinout

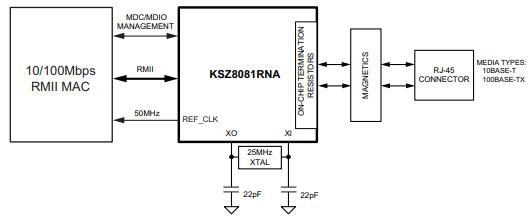

KSZ8081RNACA Block Diagram

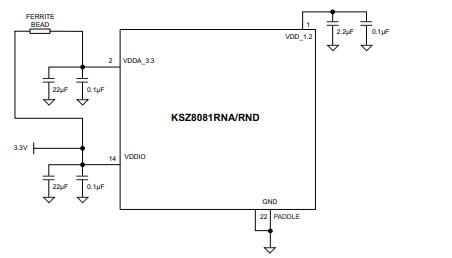

KSZ8081RNACA Circuit

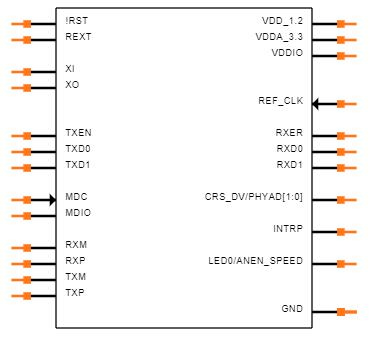

KSZ8081RNACA Symbol

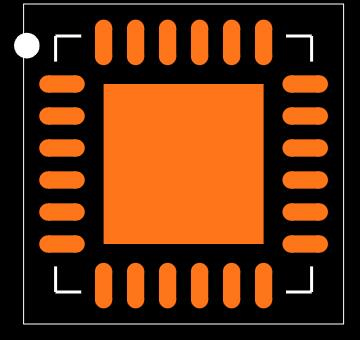

KSZ8081RNACA Footprint
KSZ8081RNACA 3D Model
Microchip Technology KSZ8081RNACA technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology KSZ8081RNACA.
Microchip Technology KSZ8081RNACA technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology KSZ8081RNACA.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 12 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 24-VFQFN Exposed Pad | |
| Manufacturer Package Identifier | QFN44-24LD-PL-1 | |
| Usage Level | Automotive grade | |
| Operating Temperature | 0°C~70°C | |
| Packaging | Tube | |
| Published | 2015 | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
| Number of Terminations | 24Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| Type | Transceiver | |
| Terminal Finish | Matte Tin (Sn) | |
| Voltage - Supply | 1.8V 2.5V 3.3V | |
| Terminal Position | QUAD | |
| Terminal Form | NO LEAD | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 3.3V | |
| Terminal Pitch | 0.5mm | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | KSZ8081 | |
| JESD-30 Code | S-XQCC-N24 | |
| Number of Channels | 1Channel |
| Product Attribute | Attribute Value | |
|---|---|---|
| Interface | Ethernet | |
| Data Rate | 100 Mbps | |
| Protocol | RMII | |
| Number of Drivers/Receivers | 1/1Drivers/Receiver | |
| Duplex | Full | |
| Simplex/Duplex | Full Duplex | |
| Max Junction Temperature (Tj) | 125°C | |
| Ambient Temperature Range High | 70°C | |
| Height | 900μm | |
| Length | 4mm | |
| Width | 4mm | |
| RoHS Status | ROHS3 Compliant |
• Game Consoles
• IP Phones
• IP Set-Top Boxes
• IP TVs
• LOM
• Printers
KSZ8081RNACA Package information
Microchip Technology Inc. is a prominent provider of microcontroller and analog semiconductors, offering low-risk product development, reduced overall system cost, and faster time to market to thousands of customers across the world. Microchip, which is based in Chandler, Arizona, provides excellent technical support as well as consistent delivery and quality.
Download datasheets and manufacturer documentation for KSZ8081RNACA
