KSZ8721BL is a Physical Layer Transceiver that employs MII and RMII interfaces to send and receive data. This article is going to introduce pinout, features, and more details about KSZ8721BL.
KSZ8721BL
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $11.6359 | $11.64 |
| 10+ | $10.97726 | $109.77 |
| 100+ | $10.35591 | $1035.59 |
| 500+ | $9.76972 | $4884.86 |
| 1000+ | $9.21672 | $9216.72 |
The KSZ8721BL is a 10BASE-T /100BASE-TX/FX Physical Layer Transceiver that employs MII and RMII interfaces to send and receive data. It has a 2.5V core to fulfill low-voltage and low-power requirements.
Physical Medium Attachment (PMA), Physical Medium Dependent (PMD), and Physical Coding Sub-layer (PCS) functionalities are all included in 10BASE-T.
On-chip 10BASE-T output filtering is also included in the KSZ8721BL. This eliminates the need for external filters and allows for the use of a single pair of line magnetics to suit both 100BASE-TX and 10BASE-T standards.
Using an on-chip auto-negotiation algorithm, the KSZ8721BL L automatically configures itself for 100 or 10Mbps and full-duplex or half-duplex operation.
For 100BASE-TX/10BASE-T applications, it is the optimal physical layer transceiver.
Single-Chip 100BASE-TX/100BASE-FX/10BASE-T Physical Layer Solution
2.5V CMOS Design; 2.5/3.3V Tolerance on I/O
3.3V Single Power Supply with Built-In Voltage
Fully Compliant to IEEE 802.3u Standard
Supports MII and Reduced MII (RMII)
Commercial Temperature Range: 0°C to +70°C
Industrial Temperature Range: –40°C to +85°C
Available in 48-pin SSOP and LQFP Packages
KSZ8721BL is a Drop-In Replacement for the theKSZ8721BT in the Same Footprint

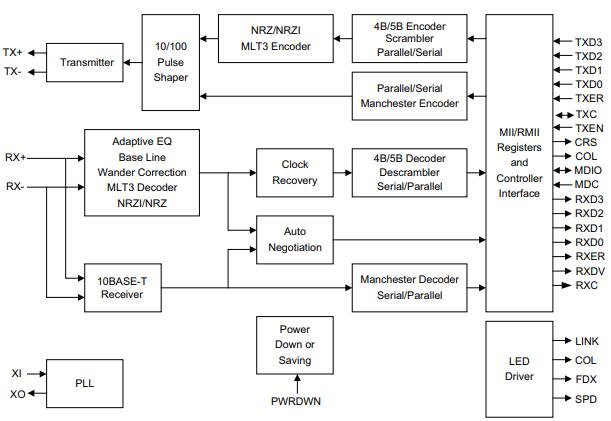

KSZ8721BL Block Diagram

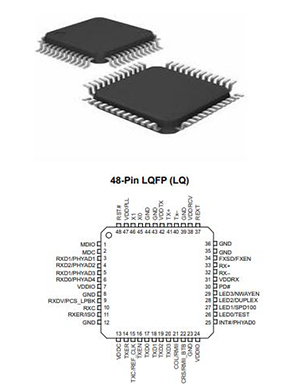

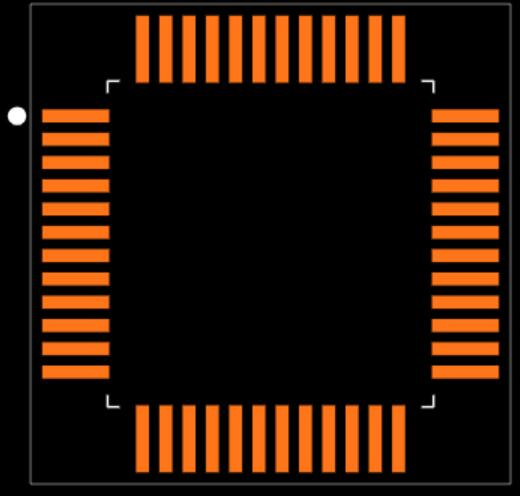

KSZ8721BL Footprint

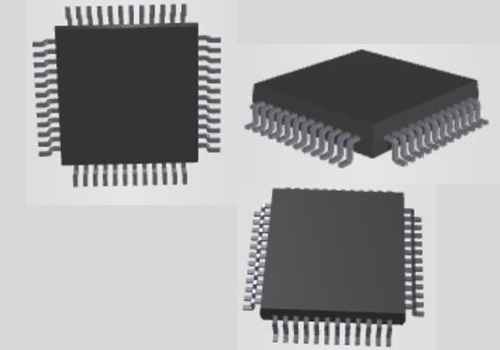

KSZ8721BL 3D Model
KSZ8721BL Circuit
Microchip Technology KSZ8721BL technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology KSZ8721BL.
Microchip Technology KSZ8721BL technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology KSZ8721BL.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 17 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 48-LQFP | |
| Number of Pins | 48Pins | |
| Supplier Device Package | 48-LQFP (7x7) | |
| Number of I/Os | 8I/Os | |
| Usage Level | Automotive grade | |
| Operating Temperature | 0°C~70°C | |
| Packaging | Tray | |
| Published | 2006 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Termination | SMD/SMT |
| Product Attribute | Attribute Value | |
|---|---|---|
| Type | Transceiver | |
| Max Operating Temperature | 70°C | |
| Min Operating Temperature | 0°C | |
| Voltage - Supply | 3V~3.6V | |
| Base Part Number | KSZ8721 | |
| Number of Channels | 1Channel | |
| Interface | Ethernet | |
| Max Supply Voltage | 3.3V | |
| Min Supply Voltage | 3.3V | |
| Number of Ports | 1Port | |
| Nominal Supply Current | 151mA | |
| Max Supply Current | 151mA | |
| Data Rate | 100 Mbps | |
| Protocol | MII, RMII |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Drivers/Receivers | 1/1Drivers/Receiver | |
| Duplex | Full | |
| Number of Drivers | 1Driver | |
| Number of Transceivers | 1Transceiver | |
| Simplex/Duplex | Full Duplex | |
| Number of Receivers | 1Receiver | |
| Ambient Temperature Range High | 70°C | |
| Height | 1.6mm | |
| Length | 7mm | |
| Width | 7mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

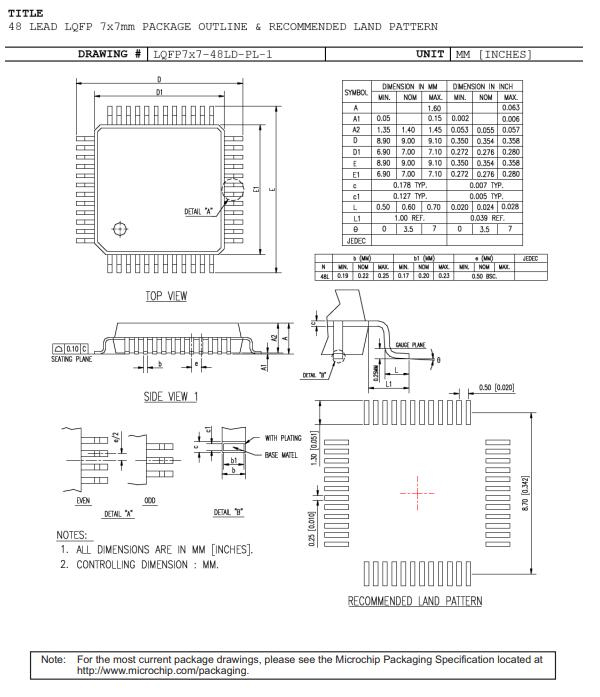

KSZ8721BL Package information
Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, delivering low-risk product development, reduced overall system cost, and faster time to market to thousands of customers across the world. Microchip, based in Chandler, Arizona, provides excellent technical support as well as consistent delivery and quality.
Download datasheets and manufacturer documentation for KSZ8721BL
