KSZ8863RLL is a highly integrated 3-port switch-on-a-chip IC with the smallest footprint in the industry. This article is going to introduce pinout, applications, features, and more details about KSZ8863RLL.
KSZ8863RLL
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $5.25758 | $5.26 |
| 10+ | $4.95998 | $49.6 |
| 100+ | $4.67923 | $467.92 |
| 500+ | $4.41436 | $2207.18 |
| 1000+ | $4.16449 | $4164.49 |
The KSZ8863RLL is a highly integrated 3-port switch-on-a-chip IC with the smallest footprint in the industry. It's intended to enable a new generation of 10/100 Mbps to switch systems with fewer ports, lower costs, and lower power consumption. These devices are suited for IPTV, IP -STB, VoIP, automotive, and industrial applications because of their low power consumption, intelligent power management, and complex QoS features (such as IP v6 priority classification support).
The KSZ8863RLL is designed to fulfill today's switch systems ' GREEN requirements. Software power down, per port power down, and energy detect mode, which shuts off the transceiver when a port is idle, are examples of advanced power management systems.
The KSZ8863RLL also has a bypass mode that saves power at the system level. The processor attached to the switch through the MII interface can be turned off in this mode.
Features of Advanced Switches
QoS/CoS Packet Prioritization Support Comprehensive Configuration Register Access
Integrated 3-Port 10/100 Ethernet Switch with Proven Performance
Features of Switch Monitoring
Low Dissipation of Power
Temperature Range for Industrial Use: –40°C to +85°C
Available in a lead-free 48-pin LQFP package.
KSZ8863RLL Test Circuit

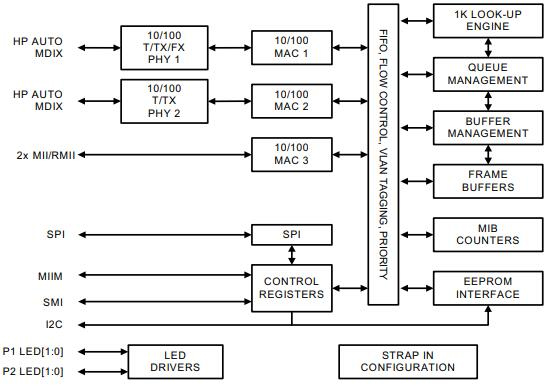

KSZ8863RLL Block Diagram

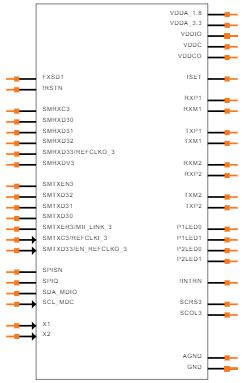

KSZ8863RLL Symbol

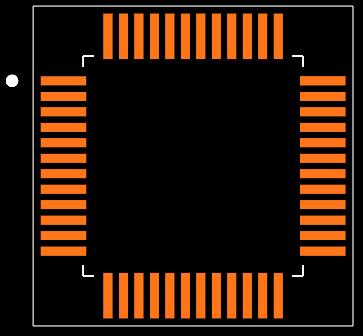

KSZ8863RLL Footprint

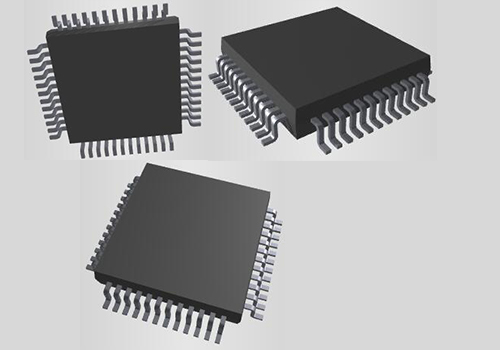

KSZ8863RLL 3D Model
Microchip Technology KSZ8863RLL technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology KSZ8863RLL.
Microchip Technology KSZ8863RLL technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology KSZ8863RLL.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 12 Weeks | |
| Mount | Surface Mount | |
| Package / Case | 48-LQFP | |
| Number of Pins | 48Pins | |
| Supplier Device Package | 48-LQFP (7x7) | |
| Operating Temperature | 0°C~70°C | |
| Packaging | Tray | |
| Published | 2009 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Max Operating Temperature | 70°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Min Operating Temperature | 0°C | |
| Voltage - Supply | 1.8V 2.5V 3.3V | |
| Base Part Number | KSZ8863 | |
| Function | Switch | |
| Operating Supply Voltage | 3.3V | |
| Interface | I2C, SPI | |
| Max Supply Voltage | 3.465V | |
| Min Supply Voltage | 1.71V | |
| Number of Ports | 3Ports | |
| Nominal Supply Current | 85mA | |
| Max Supply Current | 112mA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Data Rate | 100 Mbps | |
| Protocol | Ethernet | |
| Number of Transceivers | 2Transceivers | |
| Standards | 10/100 Base-T/TX PHY | |
| Height | 1.4mm | |
| Length | 7mm | |
| Width | 7mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
• Telephone (VoIP)
• Set-Top Box/Game Console
• Transportation
• Industrial Automation
• POF IPTV
• Residential Gateway in SOHO
• Firewall/VPN/Broadband Gateway
• DSL/Cable Modem Integrated
• Access Point + Gateway for Wireless LAN
• 10/100 Switch (Standalone)
KSZ8863RLL Package information
Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, delivering low-risk product development, reduced overall system cost, and faster time to market to thousands of customers across the world. Microchip, based in Chandler, Arizona, provides excellent technical support as well as consistent delivery and quality.
Download datasheets and manufacturer documentation for KSZ8863RLL
