MICREL SEMICONDUCTOR KSZ8863RLLI Ethernet Controller, 100 Mbps, IEEE 802.3, IEEE 802.3u, 2.5 V, 3.465 V, LQFP, 48 Pins
KSZ8863RLLI is a highly integrated 3-port switch-on-a-chip ICs. This article is going to introduce pinout, features, and more detailed information about KSZ8863RLLI.
KSZ8863RLLI
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $6.5565 | $6.56 |
| 10+ | $6.18538 | $61.85 |
| 100+ | $5.83526 | $583.53 |
| 500+ | $5.50497 | $2752.49 |
| 1000+ | $5.19336 | $5193.36 |
The KSZ8863RLLI is a highly integrated 3-port switch-on-a-chip IC with the smallest footprint in the industry. They're intended to enable a new generation of 10/100 Mbps to switch systems with fewer ports, lower costs, and lower power consumption. These devices are suited for IPTV, IP-STB, VoIP, automotive, and industrial applications because of their low power consumption, intelligent power management, and complex QoS features (such as IPv6 priority classification support).
The KSZ8863RLLI is designed to fulfill today's switch systems' GREEN requirements. Software power down, per port power down, and energy detect mode, which shuts off the transceiver when a port is idle, are examples of advanced power management systems.
The KSZ8863RLLI also has a bypass mode that saves power at the system level. The processor linked to the switch through the MII interface can be turned off in this mode without affecting the switch's normal operation.
• Advanced Switch Features
• Comprehensive Configuration Register Access
• QoS/CoS Packet Prioritization Support
• Proven Integrated 3-Port 10/100 Ethernet Switch
• Switch Monitoring Features
• Low Power Dissipation
• Industrial Temperature Range: –40°C to +85°C
• Available in a 48-Pin LQFP, Lead-Free Package

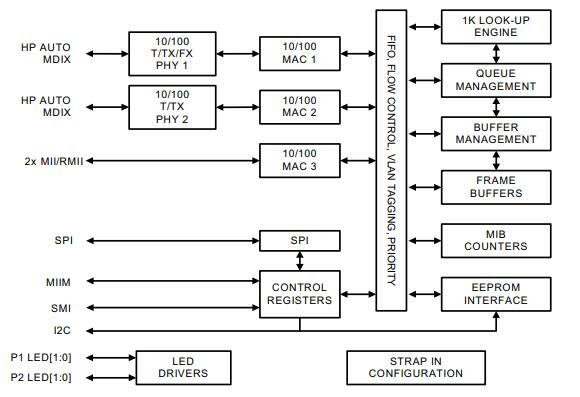

KSZ8863RLLI Block Diagram
KSZ8863RLLI Reset Circuit
KSZ8863RLLI Symbol

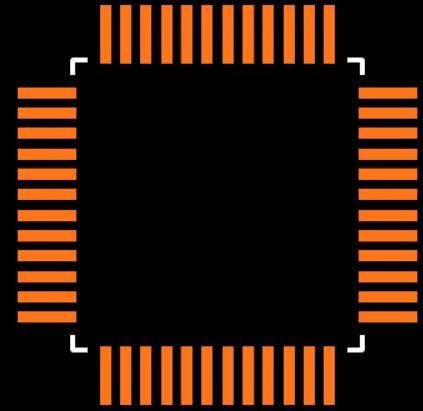

KSZ8863RLLI Footprint

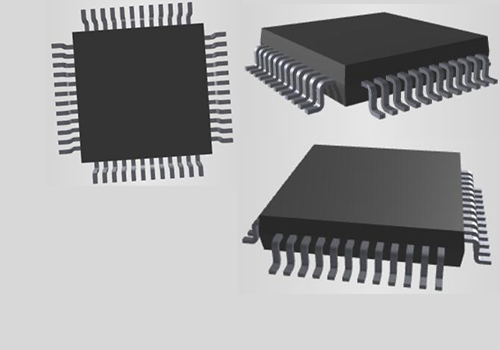

KSZ8863RLLI 3D Model
Microchip Technology KSZ8863RLLI technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology KSZ8863RLLI.
Microchip Technology KSZ8863RLLI technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology KSZ8863RLLI.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 11 Weeks | |
| Mount | Surface Mount | |
| Package / Case | 48-LQFP | |
| Number of Pins | 48Pins | |
| Supplier Device Package | 48-LQFP (7x7) | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tray | |
| Published | 2004 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Max Operating Temperature | 85°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Min Operating Temperature | -40°C | |
| Voltage - Supply | 1.8V 2.5V 3.3V | |
| Base Part Number | KSZ8863 | |
| Function | Switch | |
| Operating Supply Voltage | 3.3V | |
| Interface | I2C, SPI | |
| Max Supply Voltage | 3.465V | |
| Min Supply Voltage | 1.71V | |
| Number of Ports | 3Ports | |
| Nominal Supply Current | 85mA | |
| Max Supply Current | 114mA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Data Rate | 100 Mbps | |
| Protocol | Ethernet | |
| Number of Transceivers | 3Transceivers | |
| Standards | 10/100 Base-T/TX PHY | |
| Height | 1.45mm | |
| Length | 7.1mm | |
| Width | 7.1mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
• VoIP Phone
• Set-Top/Game Box
• Automotive
• Industrial Control
• IPTV POF
• SOHO Residential Gateway
• Broadband Gateway/Firewall/VPN
• Integrated DSL/Cable Modem
• Wireless LAN Access Point + Gateway
• Standalone 10/100 Switch

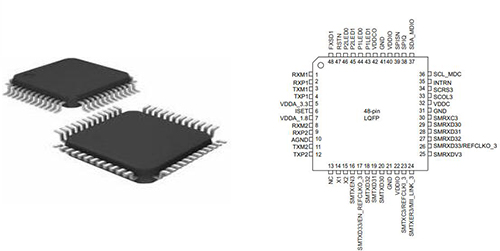

KSZ8863RLLI Package information
