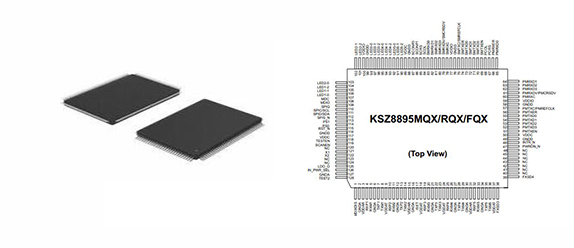

KSZ8895MQXI Ethernet Switch SPI Interface 128-PQFP: Datasheet, Pinout, and equivalent

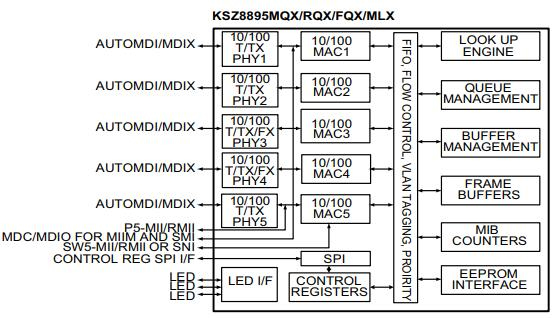

The KSZ8895MQXI is a highly-integrated, Layer 2 managed, five-port switch with numerous features designed to reduce system cost. Intended for cost-sensitive 10/100Mbps five-port switch systems with low power consumption, on-chip termination, and internal core power controllers, it supports high-performance memory bandwidth and shared memory-based switch fabric with non-blocking configuration. Its extensive feature set includes power management, programmable rate limit, and priority ratio, tag/port-based VLAN, packets filtering, four-queue QoS prioritization, management interfaces, and MIB counters. The KSZ8895 family provides multiple CPU data interfaces to effectively address both current and emerging fast Ethernet applications when Port 5 is configured to separate MAC5 with SW5-MII/RMII and PHY5 with P5-MII/RMII interfaces.

The KSZ8895 family offers three configurations, providing the flexibility to meet different requirements:

• KSZ8895MQX/MLX: Five 10/100Base-T/TX transceivers, One SW5-MII, and One P5-MII interface

• KSZ8895RQX: Five 10/100Base-T/TX transceivers, One SW5-RMII, and One P5-RMII interface

• KSZ8895FQX: Four 10/100Base-T/TX transceivers on Ports 1, 2, 3, and 5 (port 3 can be set to fiber mode). One 100Base-FX transceiver on Port 4. One SW5-MII and One P5-MII interface

All registers of MACs and PHYs units can be managed by the SPI or the SMI interface. MIIM registers can be accessed through the MDC/MDIO interface. EEPROM can set all control registers for the unmanaged mode. KSZ8895MQX/RQX/QFX are available in the 128-pin PQFP package. KSZ8895MLX is available as a 128-pin LQFP package.

Advanced Switch Features

• IEEE 802.1q VLAN support for up to 128 active VLAN groups (full-range 4096 of VLAN IDs)

• Static MAC table supports up to 32 entries

• VLAN ID tag/untag options, per-port basis

Comprehensive Configuration Register Access

• Serial management interface (MDC/MDIO) to all PHYs registers and SMI interface (MDC/MDIO) to all registers

• High-speed SPI (up to 25MHz) and I2C master Interface to all internal registers

• I/0 pins strapping and EEPROM to program selective registers in unmanaged switch mode

QoS/CoS Packet Prioritization Support

• Per port, 802.1p and DiffServ-based

• 1/2/4-queue QoS prioritization selection

• Programmable weighted fair queuing for ratio control

Integrated 5-Port 10/100 Ethernet Switch

• New generation switch with five MACs and five PHYs that are fully compliant with the IEEE 802.3u standard

• Phys designed with patented enhanced mixed-signal technology

• Non-blocking switch fabric assures fast packet delivery by utilizing a 1K MAC address lookup table and a store-and-forward architecture

Switch Monitoring Features

• Port mirroring/monitoring/sniffing: ingress and/or egress traffic to any port or MII/RMII

• MIB counters for fully-compliant statistics gathering 34 MIB counters per port

• Loop-back support for MAC, PHY, and remote diagnostic of failure

Low-Power Dissipation

• Full-chip software power-down and per port software power down

• Energy-detect mode support <100mW full-chip power consumption when all ports have no activity

Microchip Technology KSZ8895MQXI technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology KSZ8895MQXI.

KSZ8895MQXI Symbol

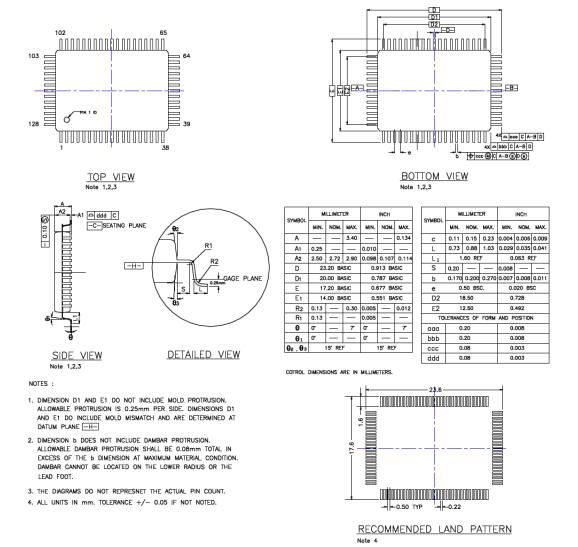

KSZ8895MQXI Footprint

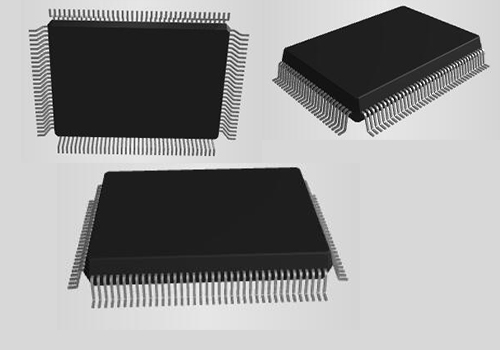

KSZ8895MQXI 3D Model
