KSZ9031RN 4/4 Transceiver Full Ethernet 48-QFN[FAQ]: Datasheet, Features, and Pinout

The KSZ9031RN is a fully integrated triple-speed (10Base-T/100Base-TX/1000Base-T) Ethernet physical-layer transceiver that allows data to be transmitted and received over standard CAT-5 unshielded twisted pair (UTP) cable.

The KSZ9031RN supports the industry-standard GMII/MII (Gigabit Media Independent Interface/Media Independent Interface) for data transfer at 1000Mbps or 10/100Mbps when connected to GMII/MII MACs in Gigabit Ethernet processors and switches. The KSZ9031RNX is a media-independent reduced gigabit interface (RGMII).

The KSZ9031RN uses on-chip termination resistors for the four differential pairs and integrates an LDO controller to drive a low-cost MOSFET to supply the 1.2V core, lowering board cost and simplifying board layout.

• Single-chip 10/100/1000Mbps IEEE 802.3 compliant Ethernet transceiver

• KSZ9031Mxx feature GMII/MII standard interface with 3.3V/2.5V/1.8V tolerant I/Os

• KSZ9031Rxx feature RGMII timing supports on-chip delay according to RGMII Version 2.0, with programming options for the external delay and making adjustments and corrections to TX and RX timing paths

• GMII/MII/RGMII with 3.3V/2.5V/1.8V tolerant I/Os

• Auto-negotiation to automatically select the highest linkup speed (10/100/1000Mbps) and duplex (half/full)

• On-chip termination resistors for the differential pairs

• On-chip LDO controller to support single 3.3V supply operation – requires only one external FET to generate 1.2V for the core

• Jumbo frame support up to 16KB

• 125MHz Reference Clock Output

• Energy-detect power-down mode for reduced power consumption when the cable is not attached

• Wake-on-LAN (WOL) support with robust custom-packet detection

• AEC-Q100 qualified for automotive applications (KSZ9031RNXUB-VAO, KSZ9031RNXVB-VAO)

• Programmable LED outputs for link, activity, and speed

• Baseline wander correction

• LinkMD® TDR-based cable diagnostic to identify faulty copper cabling

• Parametric NAND tree support to detect faults between chip I/Os and board

• Loopback modes for diagnostics

• Automatic MDI/MDI-X crossover to detect and correct pair swap at all speeds of operation

• Automatic detection and correction of pair swaps, pair skew, and pair polarity

• MDC/MDIO management interface for PHY register configuration

• Interrupt pin option

• Power-down and power-saving modes

• Core (DVDDL, AVDDL, AVDDL_PLL): 1.2V (external FET or regulator)

• VDD I/O (DVDDH): 3.3V, 2.5V, or 1.8V

• Transceiver (AVDDH): 3.3V or 2.5V (commercial temp)

• Available in 48-pin QFN (7mm x 7mm) and 64-pin QFN (8mm x 8mm) packages

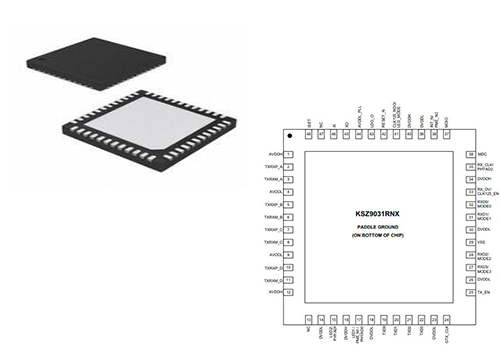

KSZ9031RN Pinout

KSZ9031RN Symbol

KSZ9031RN Footprint

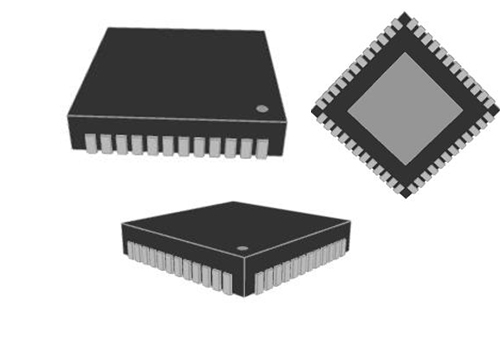

KSZ9031RN 3D Model

• Laser/Network Printer

• Network Attached Storage (NAS)

• Network Server

• Gigabit LAN on Motherboard (GLOM)

• Broadband Gateway

• Gigabit SOHO/SMB Router

• IPTV

• IP Set-Top Box

• Game Console

• Triple-Play (Data, Voice, Video) Media Center

• Industrial Control

• Automotive In-Vehicle Networking
