KSZ9031RNX Integrated Triple-speed Transceiver: Equivalent, Pinout and Datasheet

KSZ9031RNX Pinout

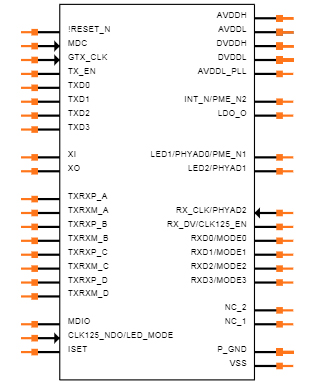

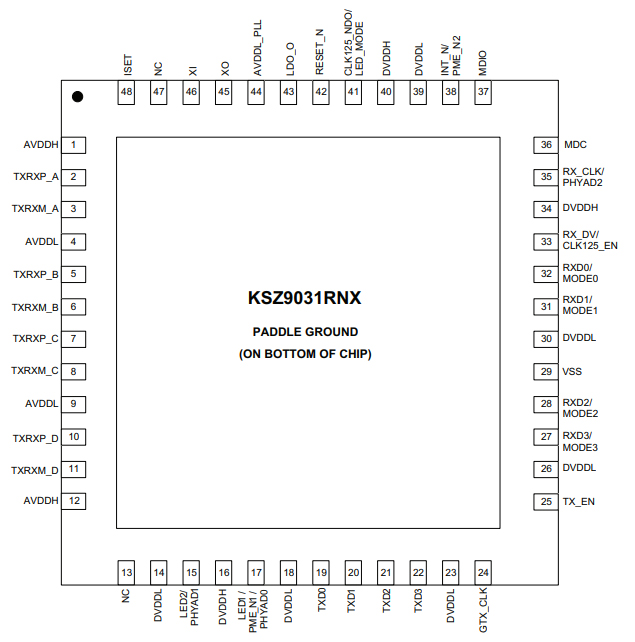

KSZ9031RNX Pin Assignment (TOP VIEW)

The KSZ9031RNX is a completely integrated triple-speed (10BASE-T/100BASE-TX/1000BASE-T) Ethernet physicallayer transceiver for transmission and reception of data on standard CAT-5 unshielded twisted pair (UTP) cable.

The KSZ9031RNX reduces board cost and simplifies board layout by using on-chip termination resistors for the four differential pairs and by integrating an LDO controller to drive a low-cost MOSFET to supply the 1.2V core. On the copper media interface, the KSZ9031RNX can automatically detect and correct for differential pair misplacements and polarity reversals, and correct propagation delays and re-sync timing between the four differential pairs, as specified in the IEEE 802.3 standard for 1000BASE-T operation.

The KSZ9031RNX offers diagnostic features to facilitate system bring-up and debugging in production testing and in product deployment.

• Single-Chip 10/100/1000 Mbps Ethernet Transceiver Suitable for IEEE 802.3 Applications

• RGMII Timing Supports On-Chip Delay According to RGMII Version 2.0, with Programming Options for External Delay and Making Adjustments and Corrections to TX and RX Timing Paths

• RGMII with 3.3V/2.5V/1.8V Tolerant I/Os

• Auto-Negotiation to Automatically Select the Highest Link-Up Speed (10/100/1000 Mbps) and Duplex (Half/Full)

• On-Chip Termination Resistors for the Differential Pairs

• On-Chip LDO Controller to Support Single 3.3V Supply Operation–Requires Only One External FET to Generate 1.2V for the Core

• Jumbo Frame Support up to 16 KB

• 125 MHz Reference Clock Output

• Energy Detect Power-Down Mode for Reduced Power Consumption When the Cable is Not Attached

• Wake-On-LAN (WOL) Support with Robust Custom-Packet Detection

• Programmable LED Outputs for Link, Activity, and Speed

• Baseline Wander Correction

• LinkMD TDR-Based Cable Diagnostic to Identify Faulty Copper Cabling

• Parametric NAND Tree Support to Detect Faults Between Chip I/Os and Board

• Loopback Modes for Diagnostics

• Automatic MDI/MDI-X Crossover to Detect and Correct Pair Swap at all Speeds of Operation

• Automatic Detection and Correction of Pair Swaps, Pair Skew, and Pair Polarity

• MDC/MDIO Management Interface for PHY Register Configuration

• Interrupt Pin Option

• Power-Down and Power-Saving Modes

• Operating Voltages

  - Core (DVDDL, AVDDL, AVDDL_PLL): 1.2V (External FET or Regulator)

  - VDD I/O (DVDDH): 3.3V, 2.5V, or 1.8V

  - Transceiver (AVDDH): 3.3V or 2.5V (Commercial Temp.)

• AEC-Q100 Grade 3 (KSZ9031RNXUA/UB) and Grade 2 (KSZ9031RNXVA/VB) Qualified for Automotive Applications

• 48-pin QFN (7 mm×7 mm) Package

Microchip Technology KSZ9031RNXIC technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology KSZ9031RNXIC.

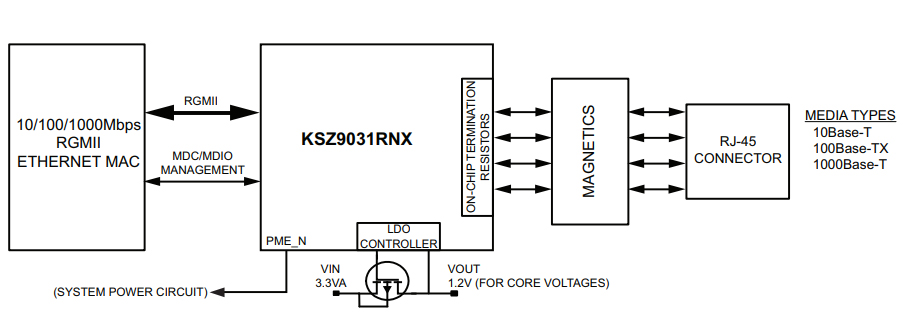

System Block Diagram

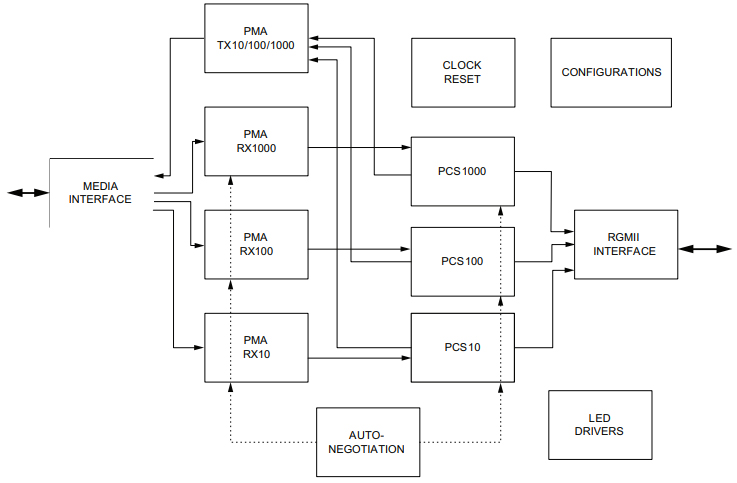

KSZ9031RNX Block Diagram

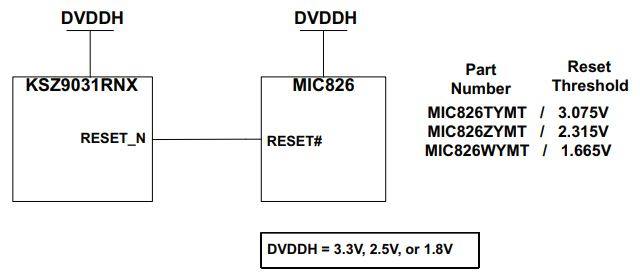

RESET CIRCUIT WITH MIC826 VOLTAGE SUPERVISOR

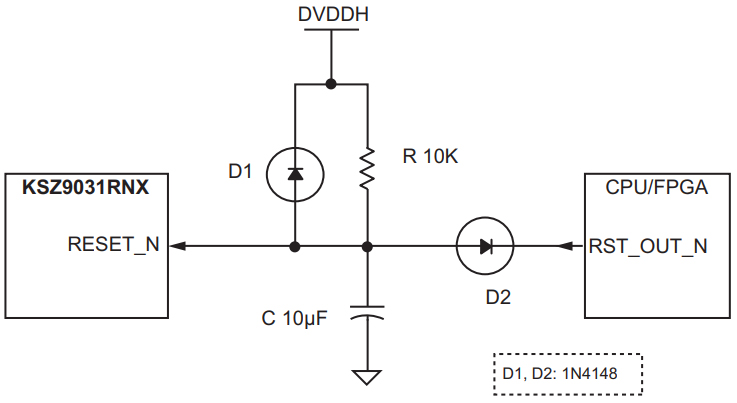

RECOMMENDED RESET CIRCUIT FOR CPU OR FPGA RESET OUTPUT

RESET CIRCUIT IF TRIGGERED BY THE POWER SUPPLY

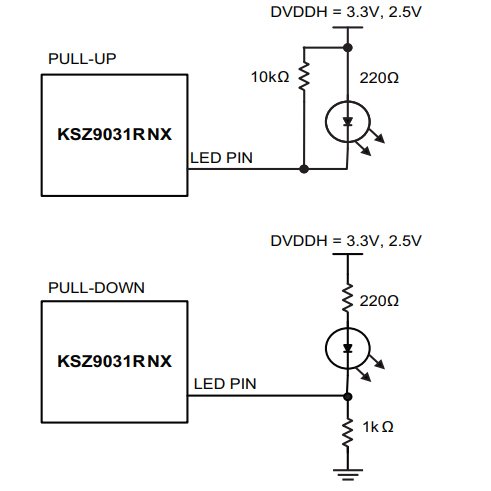

REFERENCE CIRCUITS FOR LED STRAPPING PINS

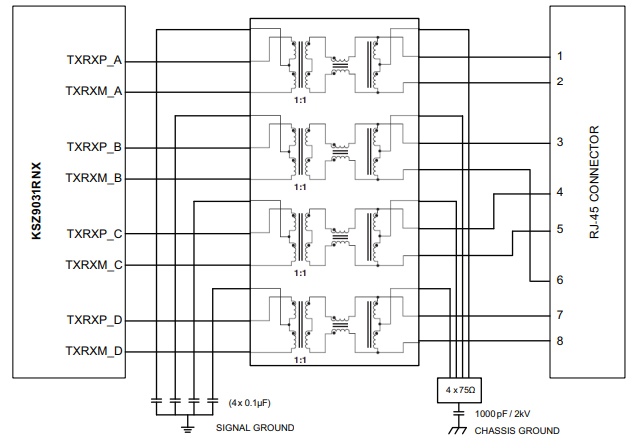

TYPICAL GIGABIT MAGNETIC INTERFACE CIRCUIT

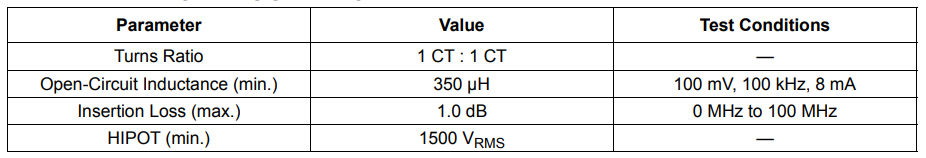

MAGNETICS SELECTION CRITERIA

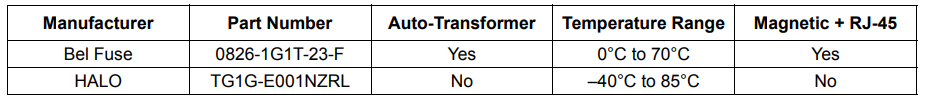

COMPATIBLE SINGLE-PORT 10 or 100 or 1000 MAGNETICS

COMPATIBLE SINGLE-PORT 10 or 100 or 1000 MAGNETICS

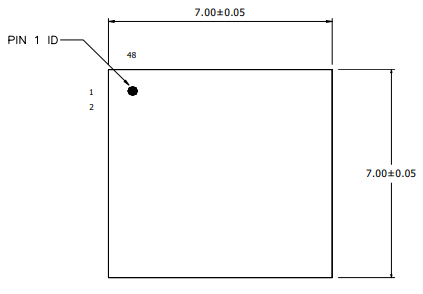

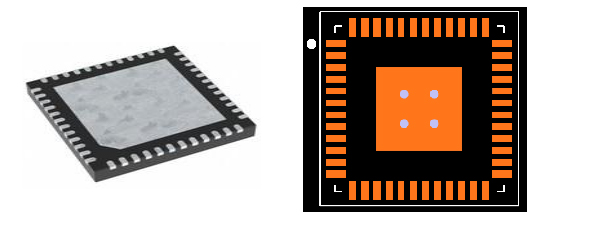

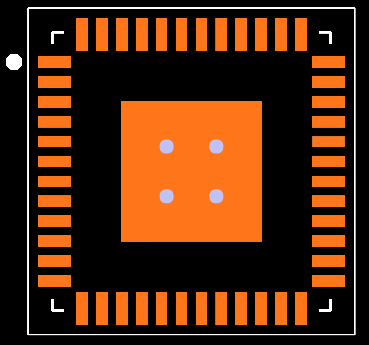

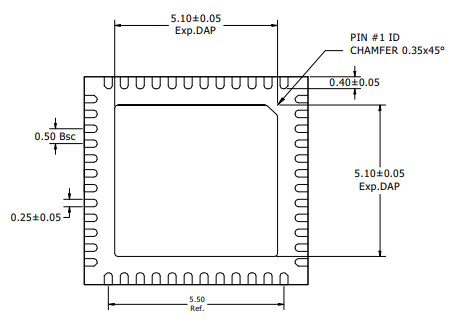

Top view

Bottom view

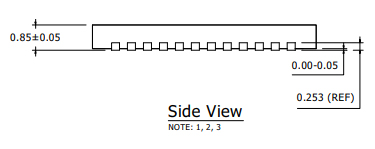

Side view
