KSZ9031RNXCA Transceiver Full Ethernet 48-QFN: KSZ9031RNXCA VS KSZ9021RNI, and Equivalents

The KSZ9031RNXCA is a completely integrated triple-speed (10BASE-T/100BASE-TX/1000BASE-T) Ethernet physical-layer transceiver for transmission and reception of data on standard CAT-5 unshielded twisted pair (UTP) cable.

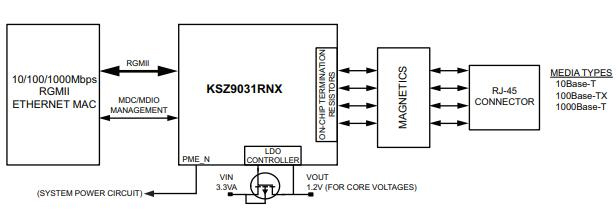

The KSZ9031RNXCA provides the Reduced Gigabit Media Independent Interface (RGMII) for direct connection to RGMII MACs in Gigabit Ethernet Processors and Switches for data transfer at 10/100/1000 Mbps.

The KSZ9031RNXCA reduces board cost and simplifies board layout by using on-chip termination resistors for the four differential pairs and by integrating an LDO controller to drive a low-cost MOSFET to supply the 1.2V core.

The KSZ9031RNXCA offers diagnostic features to facilitate system bring-up and debugging in production testing and in product deployment. Parametric NAND tree support enables fault detection between KSZ9031 I/Os and the board. The LinkMD® TDR-based cable diagnostic identifies faulty copper cabling. Remote and local loopback functions verify analog and digital data paths.

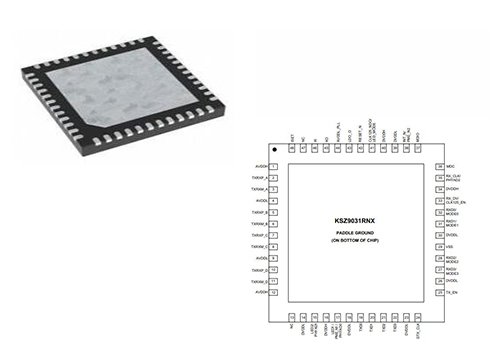

The standard KSZ9031RNXCA is available in a 48-pin, lead-free QFN package, and the AEC-Q100 automotive-qualified parts, KSZ9031RNXUA/UB and KSZ9031RNXVA/VB are available in a 48-pin lead-free VQFN (wettable) package.

• Single-Chip 10/100/1000 Mbps Ethernet Transceiver Suitable for IEEE 802.3 Applications

• RGMII Timing Supports On-Chip Delay According to RGMII Version 2.0, with Programming Options for External Delay and Making Adjustments and Corrections to TX and RX Timing Paths

• RGMII with 3.3V/2.5V/1.8V Tolerant I/Os

• Auto-Negotiation to Automatically Select the Highest Link-Up Speed (10/100/1000 Mbps) and Duplex (Half/Full)

• On-Chip Termination Resistors for the Differential Pairs

• On-Chip LDO Controller to Support Single 3.3V Supply Operation – Requires Only One External FET to Generate 1.2V for the Core

• Jumbo Frame Support up to 16 KB

• 125 MHz Reference Clock Output

• Energy Detect Power-Down Mode for Reduced Power Consumption When the Cable is Not Attached

• Wake-On-LAN (WOL) Support with Robust Custom-Packet Detection

• Programmable LED Outputs for Link, Activity, and Speed

• Baseline Wander Correction

• LinkMD TDR-Based Cable Diagnostic to Identify Faulty Copper Cabling

• Parametric NAND Tree Support to Detect Faults Between Chip I/Os and Board

• Loopback Modes for Diagnostics

• Automatic MDI/MDI-X Crossover to Detect and Correct Pair Swap at all Speeds of Operation

• Automatic Detection and Correction of Pair Swaps, Pair Skew, and Pair Polarity

• MDC/MDIO Management Interface for PHY Register Configuration

• Interrupt Pin Option

• Power-Down and Power-Saving Modes

• Operating Voltages

  - Core (DVDDL, AVDDL, AVDDL_PLL): 1.2V (External FET or Regulator)

  - VDD I/O (DVDDH): 3.3V, 2.5V, or 1.8V

- Transceiver (AVDDH): 3.3V or 2.5V (Commercial Temp.)

• AEC-Q100 Grade 3 (KSZ9031RNXUA/UB) and Grade 2 (KSZ9031RNXVA/VB) Qualified for Automotive Applications

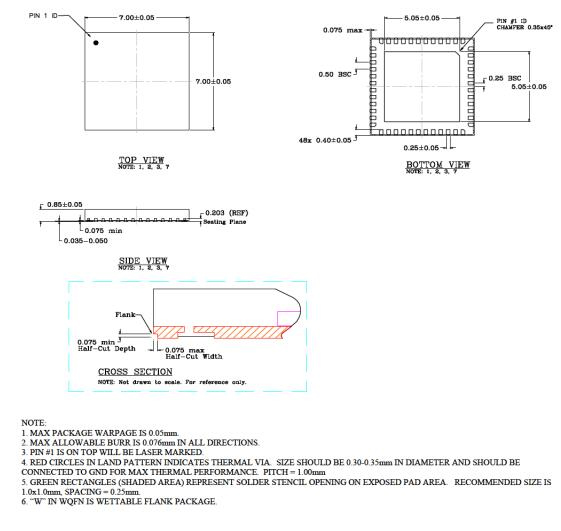

• 48-pin QFN (7 mm × 7 mm) Package

Microchip Technology KSZ9031RNXCA technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology KSZ9031RNXCA.

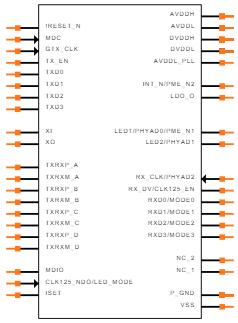

KSZ9031RNXCA Symbol

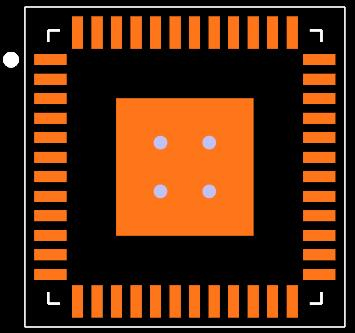

KSZ9031RNXCA Footprint

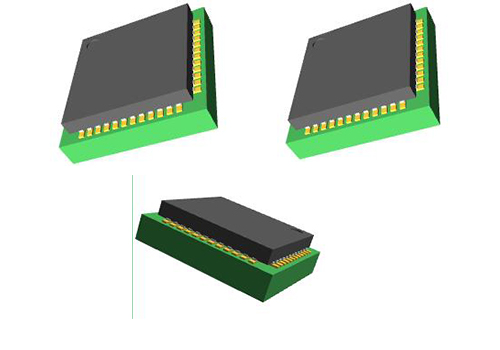

KSZ9031RNXCA 3D Model

• Laser/Network Printer

• Network Attached Storage (NAS)

• Network Server

• Gigabit LAN on Motherboard (GLOM)

• Broadband Gateway

• Gigabit SOHO/SMB Router

• IPTV

• IP Set-Top Box

• Game Console

• Triple-Play (Data, Voice, Video) Media Center

• Industrial Control

• Automotive In-Vehicle Networking

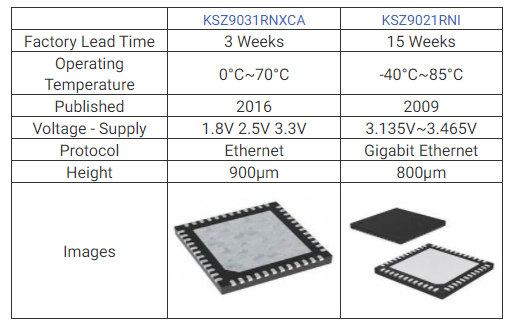

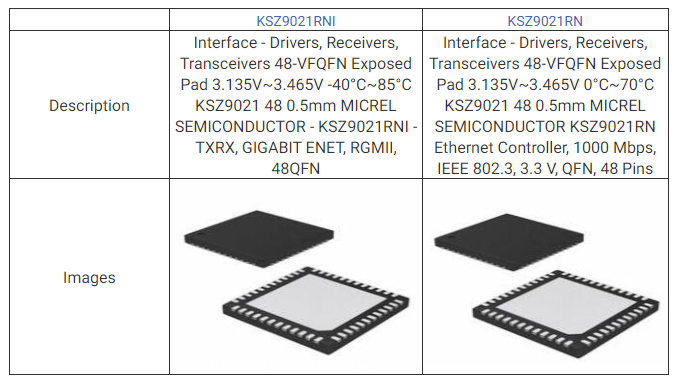

Conclusion: The products KSZ9031RNXCA and KSZ9021RNI are almost similar. But one is a newly published version, the other is an old published version. The biggest differences between the KSZ9031RNXCA and KSZ9021RNI are their operating temperature and voltage supply.
