Interface - Drivers, Receivers, Transceivers 48-VFQFN Exposed Pad 1.8V 2.5V 3.3V -40°C~85°C KSZ9031 48 0.5mm IC TRANSCEIVER FULL 4/4 48QFN
KSZ9031RNXIA is an integrated triple-speed Ethernet physical-layer transceiver for the transmission and reception of data on a standard CAT-5 unshielded twisted pair (UTP) cable. This article is going to introduce pinout, Block Diagram, and more details about KSZ9031RNXIA.
KSZ9031RNXIA
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $5.29467 | $5.29 |
| 10+ | $4.99497 | $49.95 |
| 100+ | $4.71224 | $471.22 |
| 500+ | $4.4455 | $2222.75 |
| 1000+ | $4.19387 | $4193.87 |

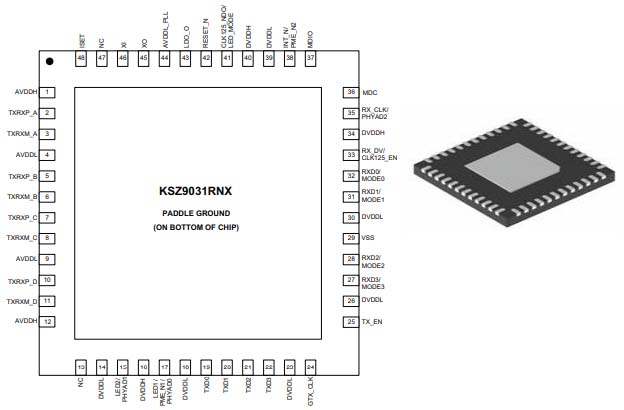

The following figure is the diagram of KSZ9031RNXIA pinout.
Pinout
The followings are KSZ9031RNXIA Symbol, Footprint, and 3D Model.

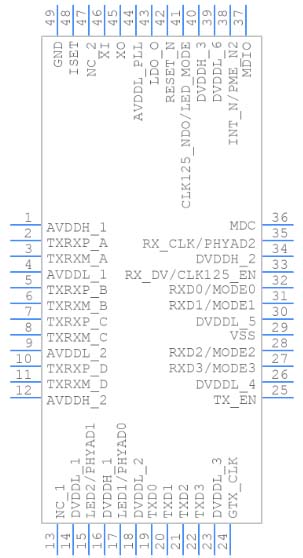

PCB Symbol

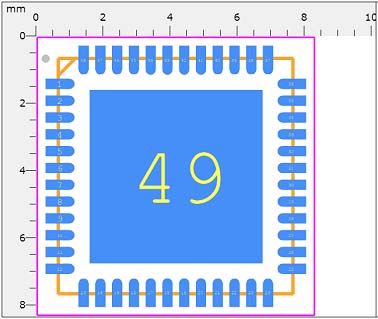

PCB Footprint

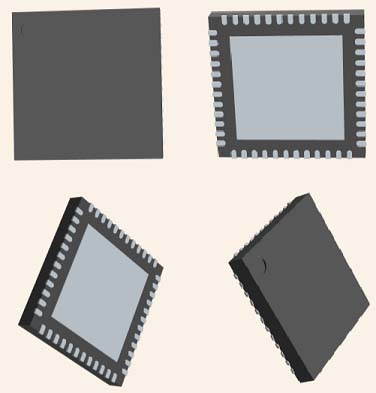

3D Model
The KSZ9031RNX is a completely integrated triple-speed (10BASE-T/100BASE-TX/1000BASE-T) Ethernet physicallayer transceiver for transmission and reception of data on standard CAT-5 unshielded twisted pair (UTP) cable. The KSZ9031RNX provides the Reduced Gigabit Media Independent Interface (RGMII) for direct connection to RGMII MACs in Gigabit Ethernet processors and switches for data transfer at 10/100/1000 Mbps. The KSZ9031RNX reduces board cost and simplifies board layout by using on-chip termination resistors for the four differential pairs and by integrating an LDO controller to drive a low-cost MOSFET to supply the 1.2V core. The KSZ9031RNX offers diagnostic features to facilitate system bring-up and debugging in production testing and in product deployment. Parametric NAND tree support enables fault detection between KSZ9031 I/Os and the board. The LinkMD® TDR-based cable diagnostic identifies faulty copper cabling. Remote and local loopback functions verify analog and digital data paths. The standard KSZ9031RNX is available in a 48-pin, lead-free QFN package, and the AEC-Q100 automotive qualified parts, KSZ9031RNXUA/UB and KSZ9031RNXVA/VB, are available in a 48-pin lead-free VQFN (wettable) package.
This article provides you with a basic overview of the KSZ9031RNXIA Gigabit Ethernet Transceiver, including its pin descriptions, features and specifications, etc., to help you quickly understand what KSZ9031RNXIA is.
● Single-Chip 10/100/1000 Mbps Ethernet Transceiver Suitable for IEEE 802.3 Applications
● RGMII Timing Supports On-Chip Delay According to RGMII Version 2.0, with Programming Options for External Delay and Making Adjustments and Corrections to TX and RX Timing Paths
● RGMII with 3.3V/2.5V/1.8V Tolerant I/Os
● Auto-Negotiation to Automatically Select the Highest Link-Up Speed (10/100/1000 Mbps) and Duplex (Half/Full)
● On-Chip Termination Resistors for the Differential Pairs
● On-Chip LDO Controller to Support Single 3.3V Supply Operation – Requires Only One External FET to Generate 1.2V for the Core
● Jumbo Frame Support up to 16 KB
● 125 MHz Reference Clock Output
● Energy Detect Power-Down Mode for Reduced Power Consumption When the Cable is Not Attached
● Wake-On-LAN (WOL) Support with Robust Custom-Packet Detection
● Programmable LED Outputs for Link, Activity, and Speed
● Baseline Wander Correction
● LinkMD TDR-Based Cable Diagnostic to Identify Faulty Copper Cabling
● Parametric NAND Tree Support to Detect Faults Between Chip I/Os and Board
● Loopback Modes for Diagnostics
● Automatic MDI/MDI-X Crossover to Detect and Correct Pair Swap at all Speeds of Operation
● Automatic Detection and Correction of Pair Swaps, Pair Skew, and Pair Polarity
● MDC/MDIO Management Interface for PHY Register Configuration
● Interrupt Pin Option
● Power-Down and Power-Saving Modes
● Operating Voltages
◆ Core (DVDDL, AVDDL, AVDDL_PLL): 1.2V (External FET or Regulator)
◆ VDD I/O (DVDDH): 3.3V, 2.5V, or 1.8V
◆ Transceiver (AVDDH): 3.3V or 2.5V (Commercial Temp.)
● AEC-Q100 Grade 3 (KSZ9031RNXUA/UB) and Grade 2 (KSZ9031RNXVA/VB) Qualified for Automotive Applications
● 48-pin QFN (7 mm × 7 mm) Package
Microchip Technology KSZ9031RNXIA technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology KSZ9031RNXIA.
Microchip Technology KSZ9031RNXIA technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology KSZ9031RNXIA.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 13 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 48-VFQFN Exposed Pad | |
| Surface Mount | YES | |
| Number of Pins | 48Pins | |
| Usage Level | Industrial grade | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tray | |
| Published | 2016 | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 48Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Type | Transceiver | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Voltage - Supply | 1.8V 2.5V 3.3V | |
| Terminal Position | QUAD | |
| Number of Functions | 1Function | |
| Supply Voltage | 1.2V | |
| Terminal Pitch | 0.5mm | |
| Base Part Number | KSZ9031 | |
| Operating Supply Voltage | 3.3V | |
| Number of Channels | 1Channel | |
| Max Supply Current | 221mA | |
| Data Rate | 1 Gbps |
| Product Attribute | Attribute Value | |
|---|---|---|
| Protocol | Ethernet | |
| Number of Drivers/Receivers | 4/4Drivers/Receiver | |
| Duplex | Full | |
| Number of Drivers | 4Drivers | |
| Simplex/Duplex | Full Duplex | |
| Height | 850μm | |
| Length | 7mm | |
| Width | 7mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
The following is the Block Diagram of KSZ9031RNXIA.

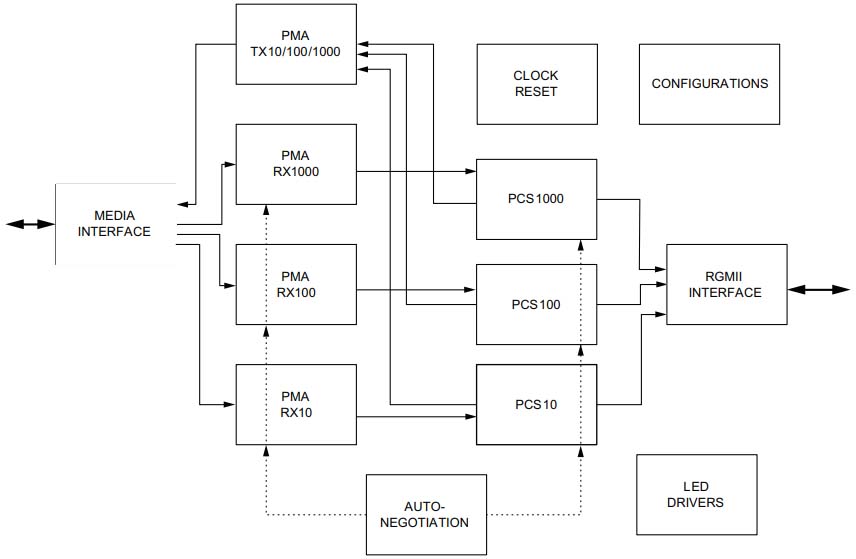

Block Diagram

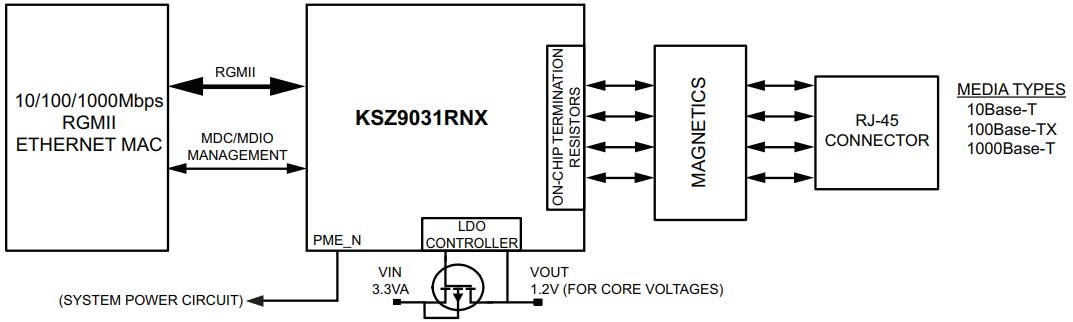

System Block Diagram
| Model number | Manufacturer | Description |
| BCM5388KPB | Broadcom Limited | Ethernet Transceiver, CMOS, PBGA324, 19 X 19 MM, FBGA-324 |
| KSZ8895FQXCA | Microchip Technology Inc | DATACOM, ETHERNET TRANSCEIVER, PQFP128 |
| KSZ8864RMNC-TR | Microchip Technology Inc | Ethernet Transceiver, QCC64 |
| LAN88730AM-C-V01 | Microchip Technology Inc | DATACOM, ETHERNET TRANSCEIVER |
| KSZ8864RMNI-TR | Microchip Technology Inc | Ethernet Transceiver, QCC64 |
| KSZ9031RNXUB-TRVAO | Microchip Technology Inc | Ethernet Transceiver |
| KSZ8895MQ | Micrel Inc | Ethernet Transceiver, CMOS, PQFP128, LEAD FREE, PLASTIC, QFP-128 |
| KSZ8895RLXC | Microchip Technology Inc | DATACOM, ETHERNET TRANSCEIVER |
| KSZ9031RNXIC | Microchip Technology Inc | DATACOM, ETHERNET TRANSCEIVER |
| KSZ8864RMNUB-TR-VAO | Microchip Technology Inc | Ethernet Transceiver, QCC64 |
● Laser/Network Printer
● Network Attached Storage (NAS)
● Network Server
● Gigabit LAN on Motherboard (GLOM)
● Broadband Gateway
● Gigabit SOHO/SMB Router
● IPTV
● IP Set-Top Box
● Game Console
● Triple-Play (Data, Voice, Video) Media Center
● Industrial Control
● Automotive In-Vehicle Networking
The following diagram shows the KSZ9031RNXIA package.
Top View

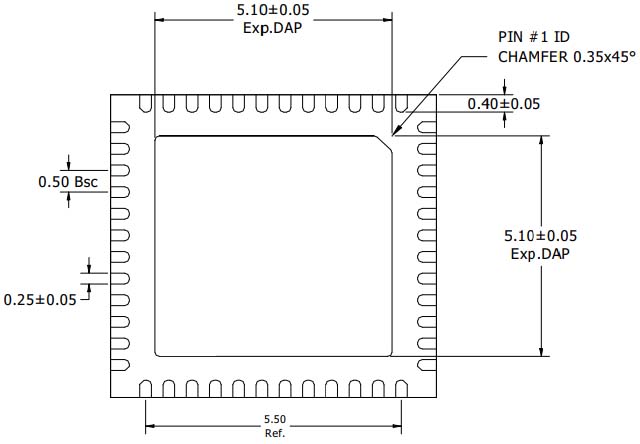

Bottom View

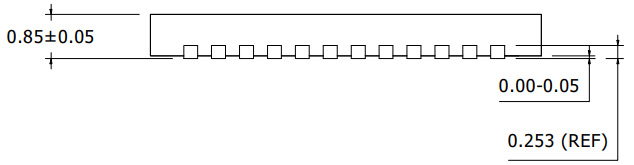

Side View
Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, providing low-risk product development, lower total system cost and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.
