KSZ9893R Gigabit Ethernet Switch: Pinout, Equivalent and Datasheet

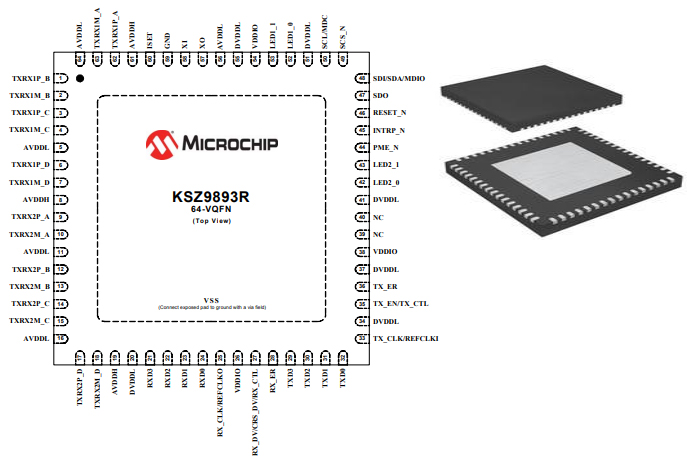

The following figure is the diagram of KSZ9893R pinout.

The followings are KSZ9893R Symbol, Footprint, and 3D Model.

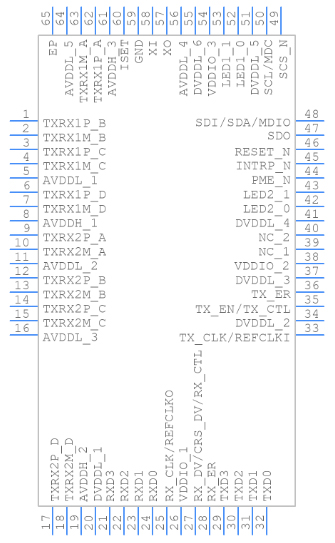

PCB Symbol

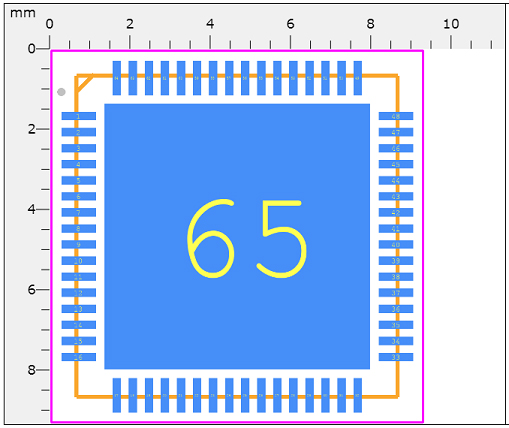

PCB Footprint

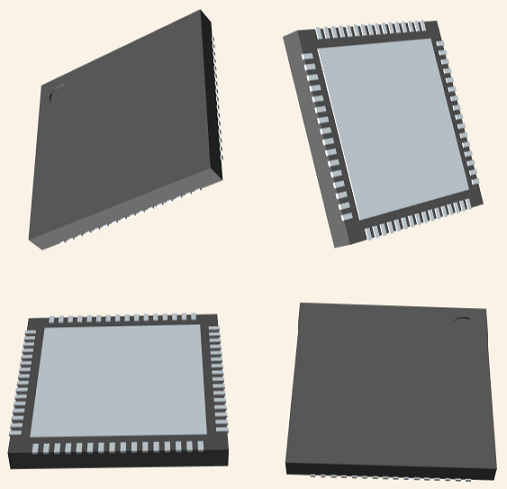

3D Model

The KSZ9893R is a highly-integrated, IEEE 802.3 compliant networking device that incorporates a layer-2+ managed Gigabit Ethernet switch, two 10BASE-T/100BASE-TX/1000BASE-T physical layer transceivers (PHYs) and associated MAC units, and one MAC port with a configurable RGMII/MII/RMII interface for direct connection to a host processor/controller, another Ethernet switch, or an Ethernet PHY transceiver. A host processor can access all KSZ9893R registers for control over all PHY, MAC, and switch functions. Full register access is available via the integrated SPI or I2C interfaces, and by in-band management via any one of the data ports. The KSZ9893R is available in commercial (0°C to +70°C) and industrial (-40°C to +85°C) temperature ranges. The KSZ9893R device supports the IEEE 802.3 MII management interface, also known as the management data input/output (MDIO) interface. This interface allows upper-layer devices to monitor and control the states of the KSZ9893R PHY blocks, but it does not provide access to the switch registers.

This article provides you with a basic overview of the KSZ9893R Gigabit Ethernet Switch, including its pin descriptions, features and specifications, etc., to help you quickly understand what KSZ9893R is.

● Switch Management Capabilities

   ◆ 10/100/1000Mbps Ethernet switch basic functions: frame buffer management, address look-up table, queue management, MIB counters

   ◆ Non-blocking store-and-forward switch fabric assures fast packet delivery by utilizing 4096 entry forwarding table with 128kByte frame buffer

   ◆ Jumbo packet support up to 9000 bytes

   ◆ Port mirroring/monitoring/sniffing: ingress and/or egress traffic to any port

   ◆ MIB counters for fully-compliant statistics gathering 34 counters per port

  ◆ Tail tagging mode (one byte added before FCS) support at host port to inform the processor which ingress port receives the packet and its priority

   ◆ Loopback modes for remote failure diagnostics

   ◆ Rapid spanning tree protocol (RSTP) support for topology management and ring/linear recovery

   ◆ Multiple spanning tree protocol (MSTP) support

● Two Robust Integrated PHY Ports

   ◆ 1000BASE-T/100BASE-TX/10BASE-T IEEE 802.3

   ◆ Fast Link-up option significantly reduces link-up time

   ◆ Auto-negotiation and Auto-MDI/MDI-X support

   ◆ Energy-Efficient Ethernet (EEE) support with lowpower idle mode and clock stoppage

   ◆ On-chip termination resistors and internal biasing for differential pairs to reduce power

   ◆ LinkMD® cable diagnostic capabilities for determining cable opens, shorts, and length

● One Configurable External MAC Port

   ◆ Reduced Gigabit Media Independent Interface (RGMII) v2.0

   ◆ Reduced Media Independent Interface (RMII) v1.2 with 50MHz reference clock input/output option

   ◆ Media Independent Interface (MII) in PHY/MAC mode

● Advanced Switch Capabilities

   ◆ IEEE 802.1Q VLAN support for 128 active VLAN groups and the full range of 4096 VLAN IDs

   ◆ IEEE 802.1p/Q tag insertion/removal on per port basis

   ◆ VLAN ID on per port or VLAN basis

   ◆ IEEE 802.3x full-duplex flow control and half-duplex back pressure collision control

   ◆ IEEE 802.1X (Port-Based Network Access Control)

   ◆ IGMP v1/v2/v3 snooping for multicast packet filtering

   ◆ IPv6 multicast listener discovery (MLD) snooping

   ◆ IPv4/IPv6 QoS support, QoS/CoS packet prioritization

   ◆ 802.1p QoS packet classification with 4 priority queues

   ◆ Programmable rate limiting at ingress/egress ports

   ◆ Broadcast storm protection

   ◆ Four priority queues with dynamic packet mapping for IEEE 802.1p, IPv4 DIFFSERV, IPv6 Traffic Class

   ◆ MAC filtering function to filter or forward unknown unicast, multicast and VLAN packets

   ◆ Self-address filtering for implementing ring topologies

● Comprehensive Configuration Registers Access

   ◆ High-speed 4-wire SPI (up to 50MHz), I²C interfaces provide access to all internal registers

   ◆ MII Management (MIIM, MDC/MDIO 2-wire) Interface provides access to all PHY registers

   ◆ In-band management via any of the three ports

   ◆ I/O pin strapping facility to set certain register bits from I/O pins at reset time

   ◆ On-the-fly configurable control registers

● Power Management

   ◆ IEEE 802.3az Energy Efficient Ethernet (EEE)

   ◆ Energy detect power-down mode on cable disconnect

   ◆ Dynamic clock tree control

   ◆ Unused ports can be individually powered down

   ◆ Full-chip software power-down

   ◆ Wake-on-LAN (WoL) standby power mode

• Non-blocking wire-speed Ethernet switching fabric

• Full-featured forwarding and filtering control, including Access Control List (ACL) filtering

• Full VLAN and QoS support

• Two ports with integrated 10/100/1000BASE-T PHYs

• One port with 10/100/1000 Ethernet MAC and configurable RGMII/MII/RMII interface

• IEEE 802.1X port-based authentication support

• EtherGreen™ power management features, including low power standby and IEEE 802.3az

• Flexible management interface options: SPI, I²C, MIIM, and in-band management via any port

• Commercial/Industrial temperature range support

• 64-pin VQFN (8 x 8mm) lead-free package

Microchip Technology KSZ9893RNXC technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology KSZ9893RNXC.

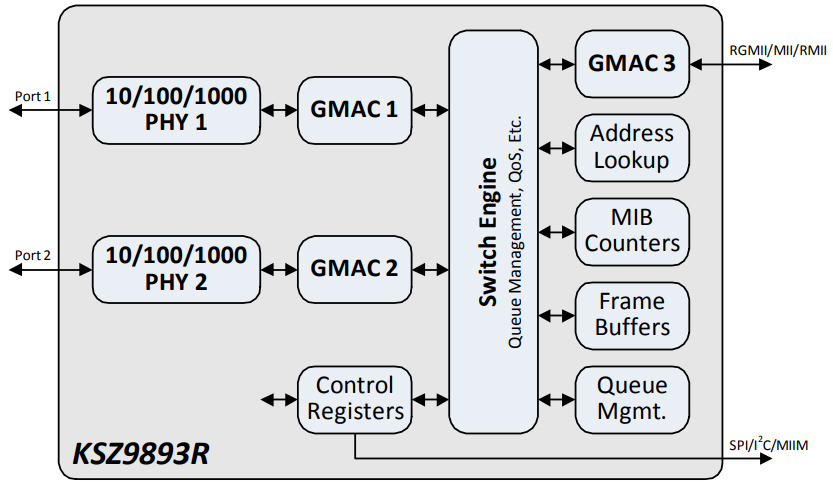

The following is the Block Diagram of KSZ9893R.

Internal Block Diagram

• Stand-alone 10/100/1000Mbps Ethernet switches

• VoIP infrastructure switches

• Broadband gateways/firewalls

• Wi-Fi access points

• Integrated DSL/cable modems

• Security/surveillance systems

• Industrial control/automation switches

• Networked measurement and control systems

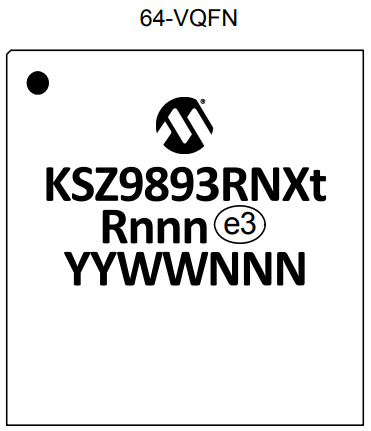

The following is the Package Marking of KSZ9893R.

Package Marking Information

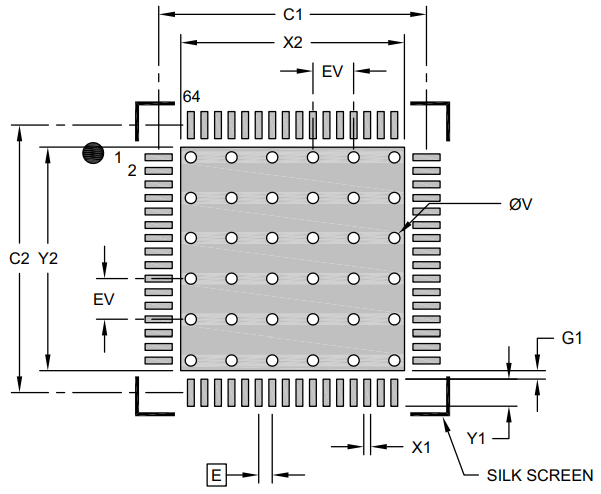

The following diagram shows the KSZ9893R Recommended Land Pattern.

Recommended Land Pattern
